Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

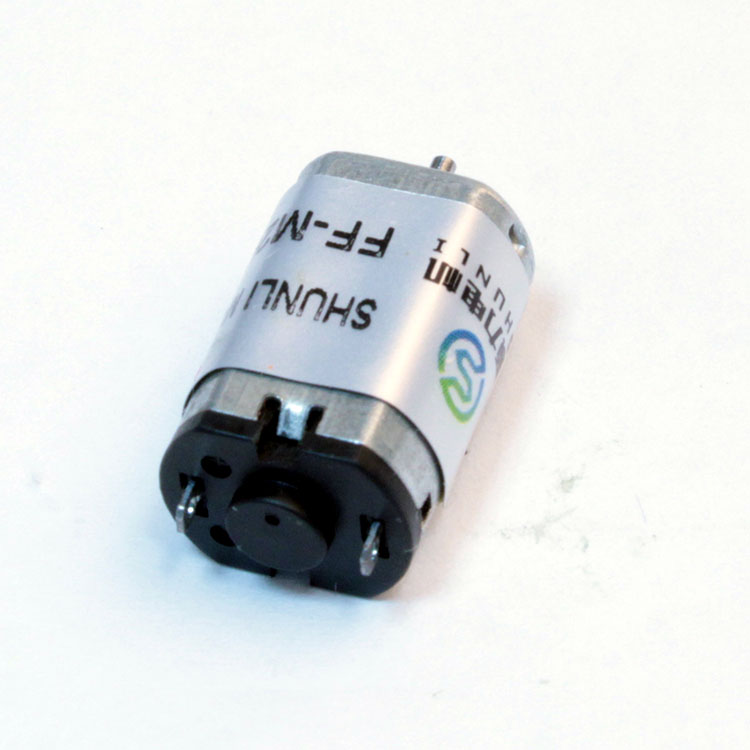

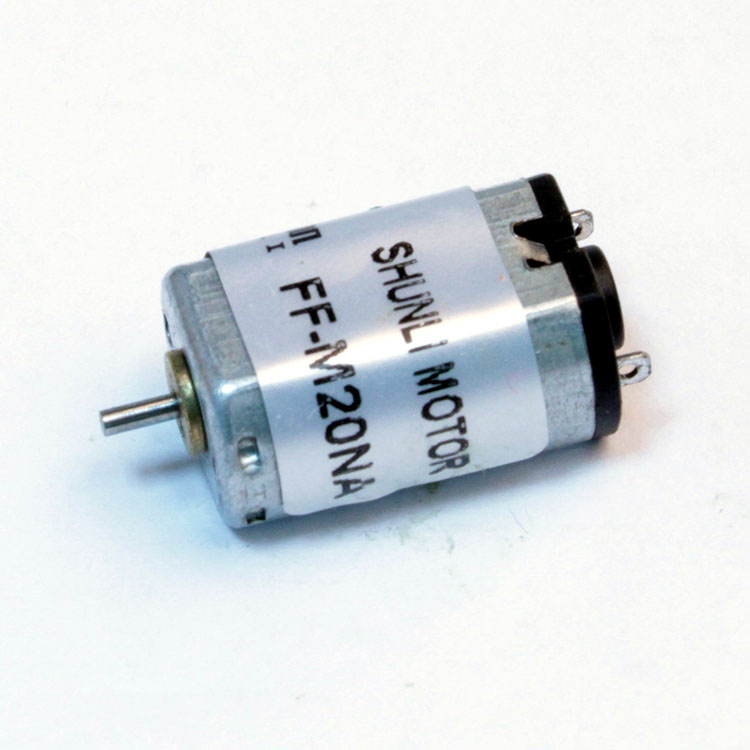

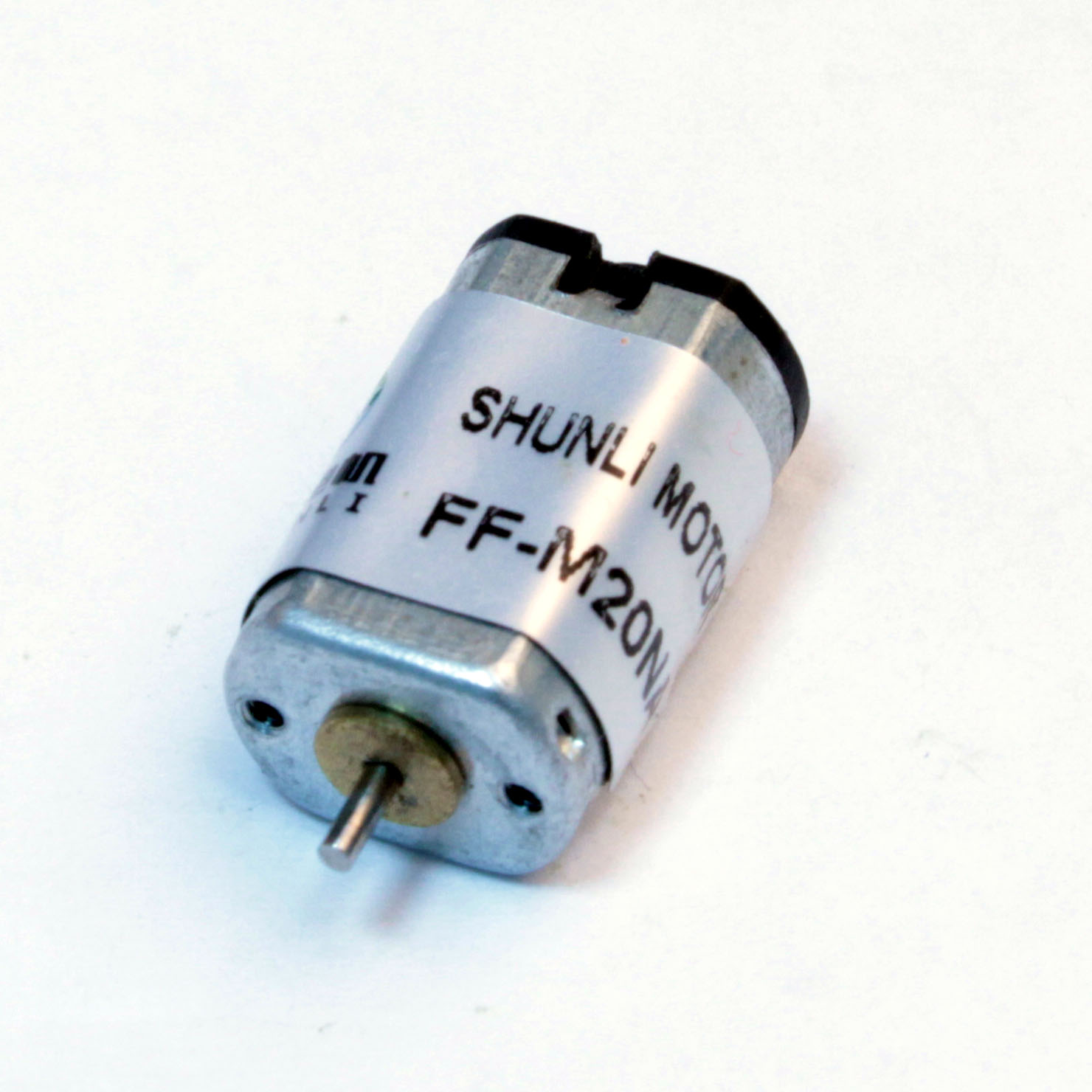

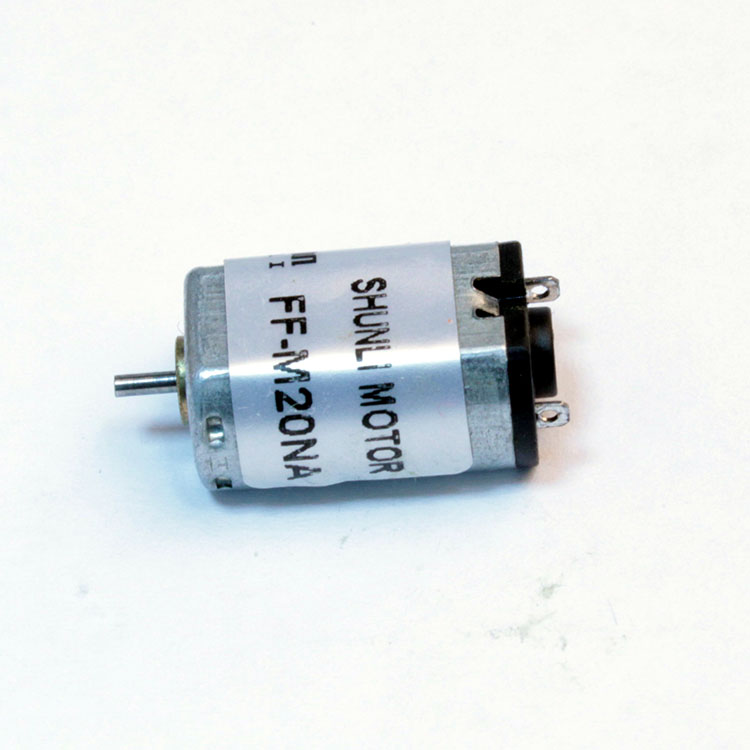

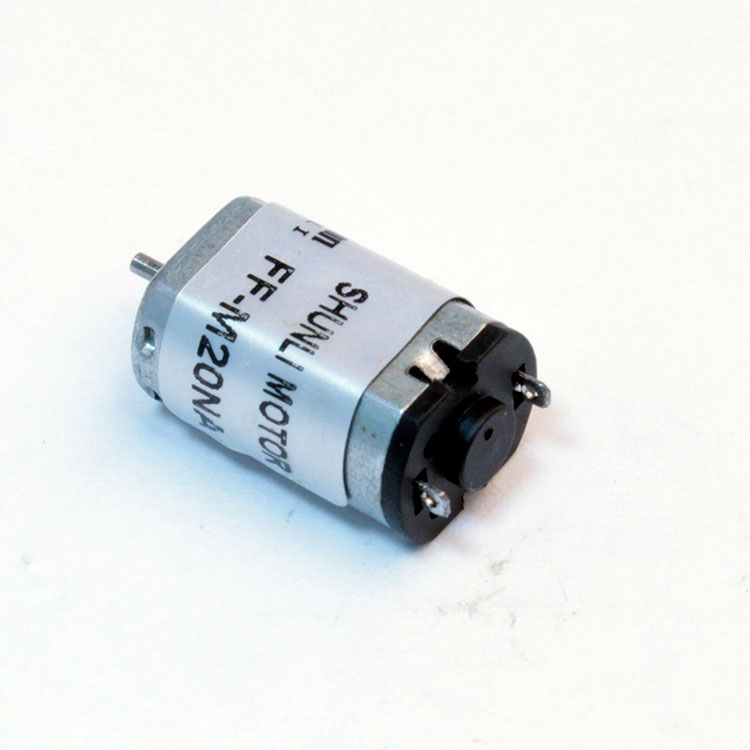

!Small Electric Motor M20 DC Motor 1.5V 3V Micro DC Motor

⚙Product Description & Technical Data

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated Load				Stall
	Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Range	Nominal	RPM	mA	RPM	mA	mN.m	W	mA	mN.m
FF-M20VA-8130	2.0~3.0	3VDC	15200	45	11800	160	0.16	0.19	550	0.69
FF-M20VA-7170	1.5-3.0	2VDC	8000	25	6000	75	0.09	0.06	230	0.35
FF-M20VA-10100	1.5~4.0	2.8VDC	18000	50	14800	190	0.2	0.3	880	1.1

Note: Customized parameters are available upon request for different applications.

✔Product Applications

iAbout Our Factory

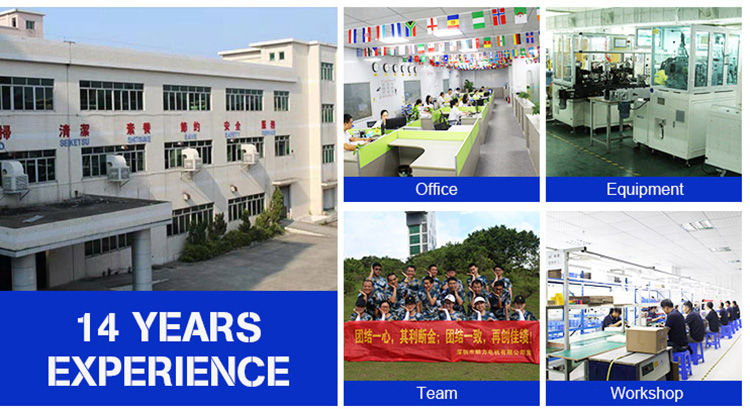

Established in 2005, we are a high-tech enterprise integrating the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shaded pole geared motors, and special gearbox motors.

Our products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, kitchen equipment, and other high-end transmission structures. We currently export to more than 50 countries and regions worldwide.

★Quality Control & Certifications

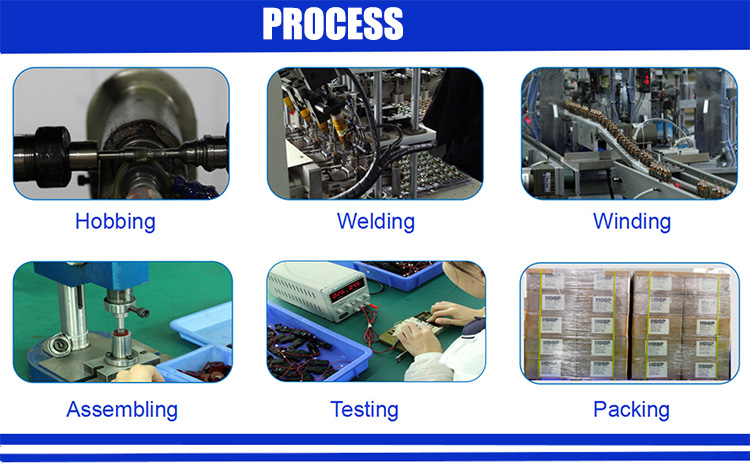

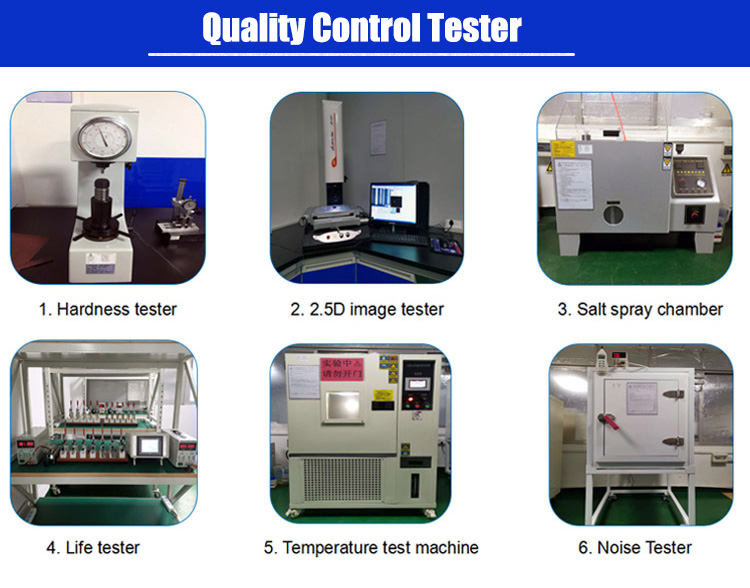

We have introduced dozens of advanced production equipment and testing instruments from Germany, Japan, and Switzerland to strictly control the quality of each motor. Our testing capabilities include Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

?Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of experience.

What are the available payment terms for new customers?

We support various payment methods including Online Assurance Orders (MasterCard, Visa), PayPal, and TT (Telegraphic Transfer).

Can you customize a motor if I can't find a suitable one on the website?

Yes, we provide full customization services to develop a suitable motor according to your specific technical requirements.

Do your motors have official certifications?

Yes, our motors are compliant with CE, FCC, ISO, and other international standards. We can apply for additional certificates if required.

How do you ensure the quality of your products?

We employ professional QC staff at every stage of the production line. Every finished motor undergoes rigorous testing using advanced machinery for noise, life cycle, temperature, and salt spray resistance.

What applications are these micro motors suitable for?

These motors are ideal for home appliances, medical equipment, smart home devices, automotive components, and intelligent security systems.
