12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
1 / 5
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor
12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor

12v 24v 36v Brushless Dc Planetary Gear Motor Planetary Gearbox BLDC Motor

Send Inquiry

Product Description

Product Banner

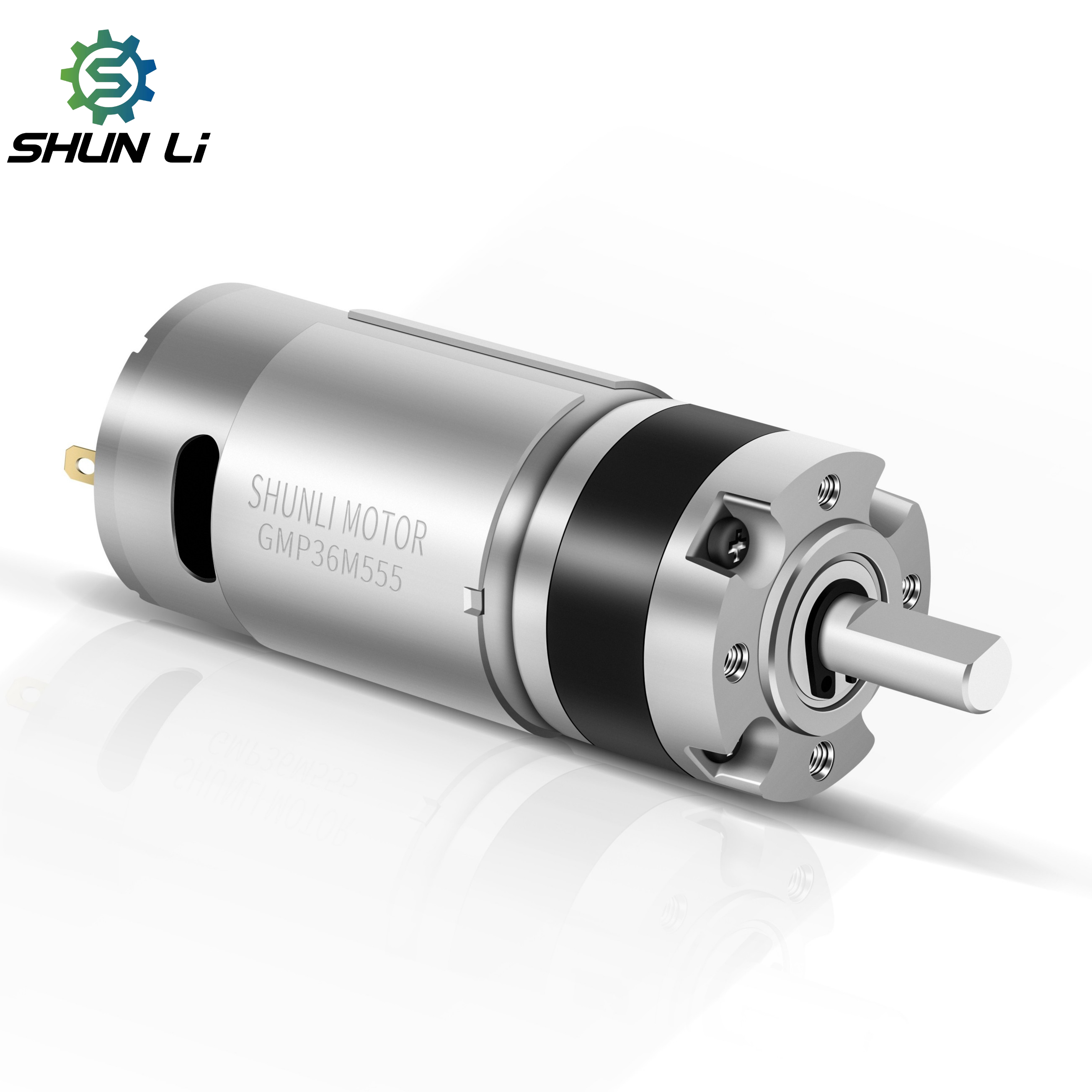

Product Details
Product Model GMP36M545/555/575
Gearbox Length 26MM~54MM
Speed 11.5 RPM-250RPM
Voltage 24V/24V/12V
Torque 2.5 N.m / 0.45 N.m / 3.0 N.m
Support Customization Transmission Dimensions And Motor Parameters Can Be Customized

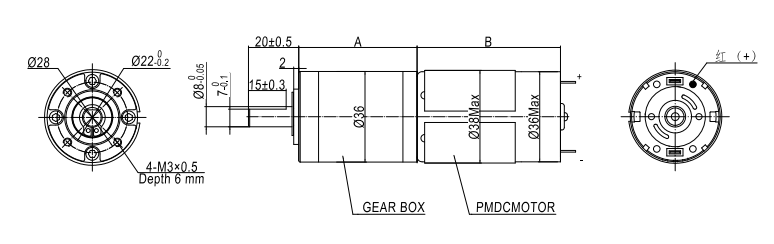

Technical Drawing 1

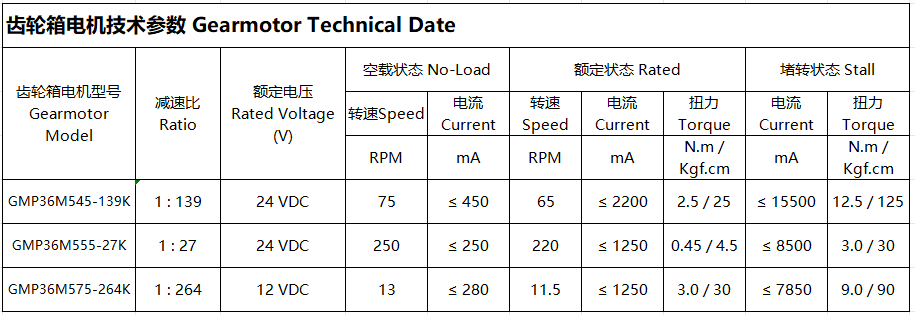

Technical Drawing 2

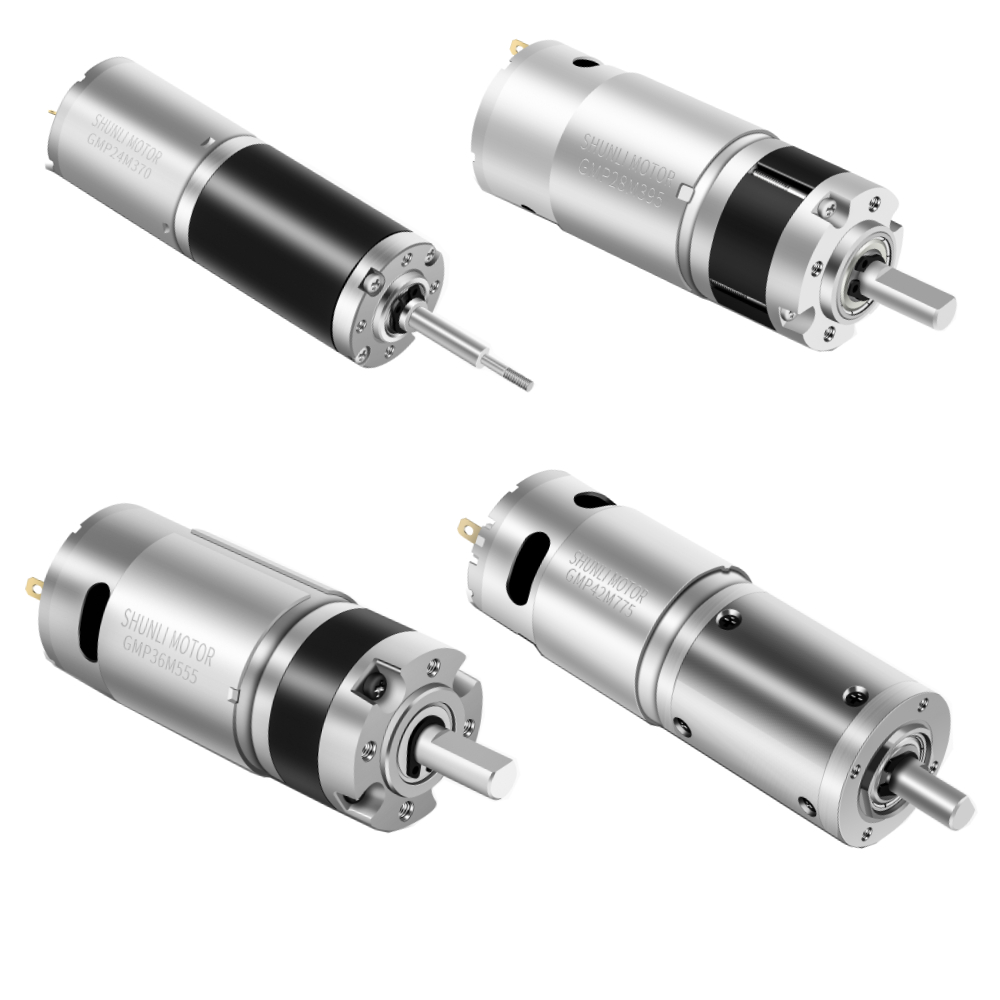

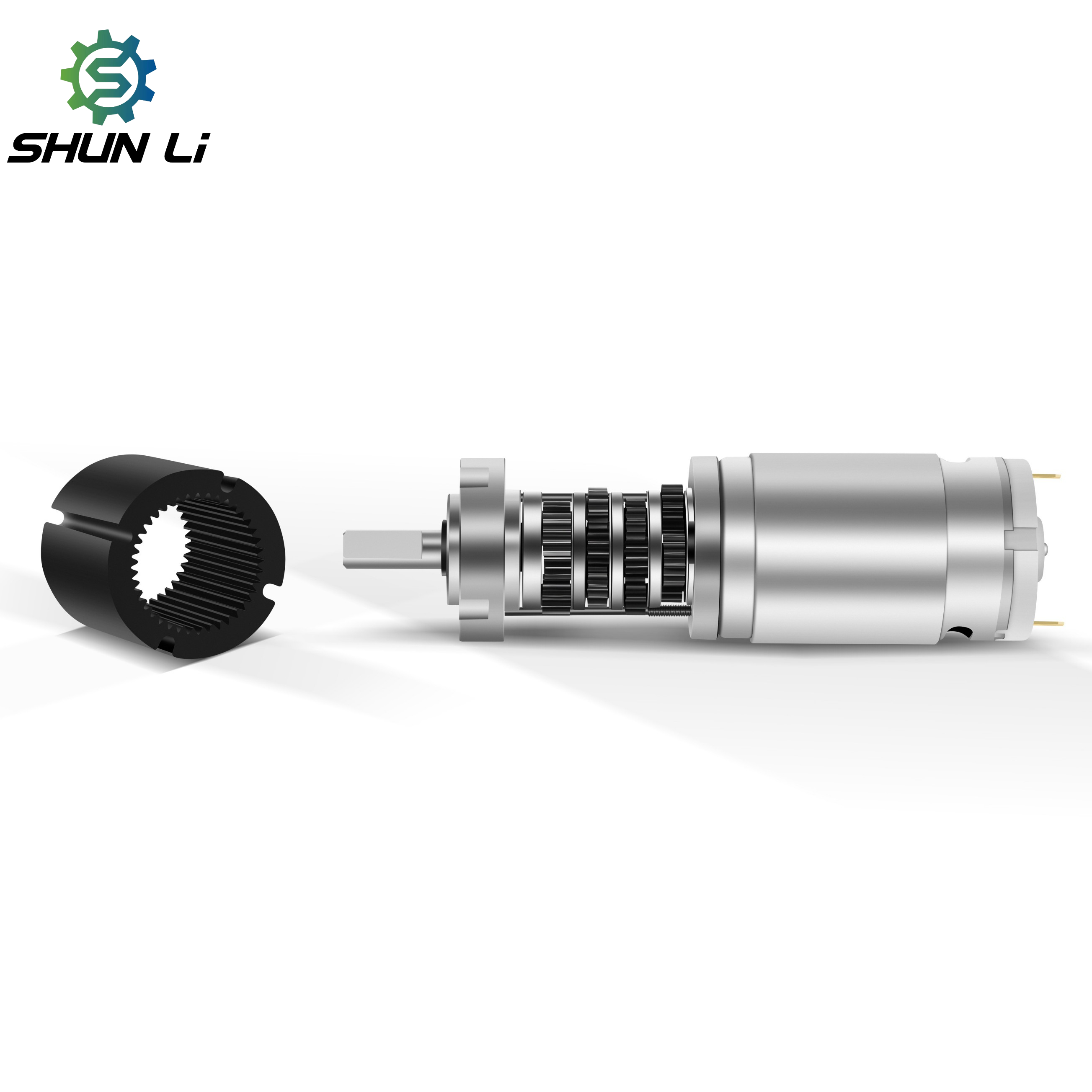

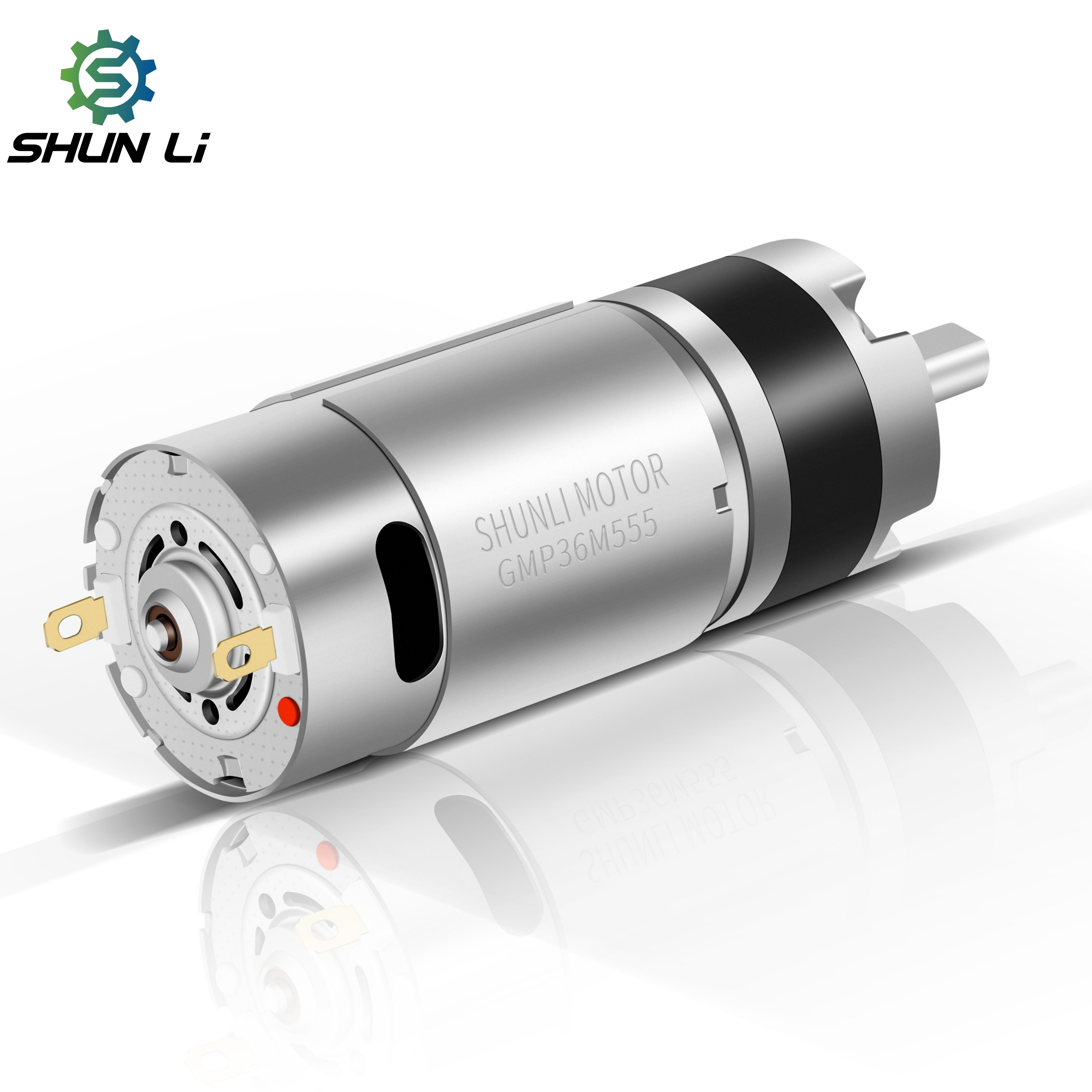

Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
Frequently Asked Questions
1. Q: Are you a trading company or a manufacturer?
A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. Q: What is the payment term for new customers?
A: We can draw up an Assurance Order online for new customers, which allows payment via Master Card, Visa, etc. Customers can also pay with PayPal or TT.
3. Q: Can you customize a motor if I can't find a suitable one on your website?
A: Yes, we can customize a suitable motor according to our customer's specific technical requirements.
4. Q: Do you have certifications for your motors?
A: Yes, we have CE, FCC, ISO, and other relevant certifications. If you have specific certification requirements, we can apply for them for you.
5. Q: How do you handle Quality Control?
A: We employ professional inspection staff at every stage of the production process. Finished motors undergo rigorous testing using machines such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
6. Q: Can I request motor parameters for the GMP36 series?
A: Absolutely. Our GMP36M545/555/575 series supports customization for transmission dimensions, speed ranges, and torque outputs to fit your specific application.
