Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

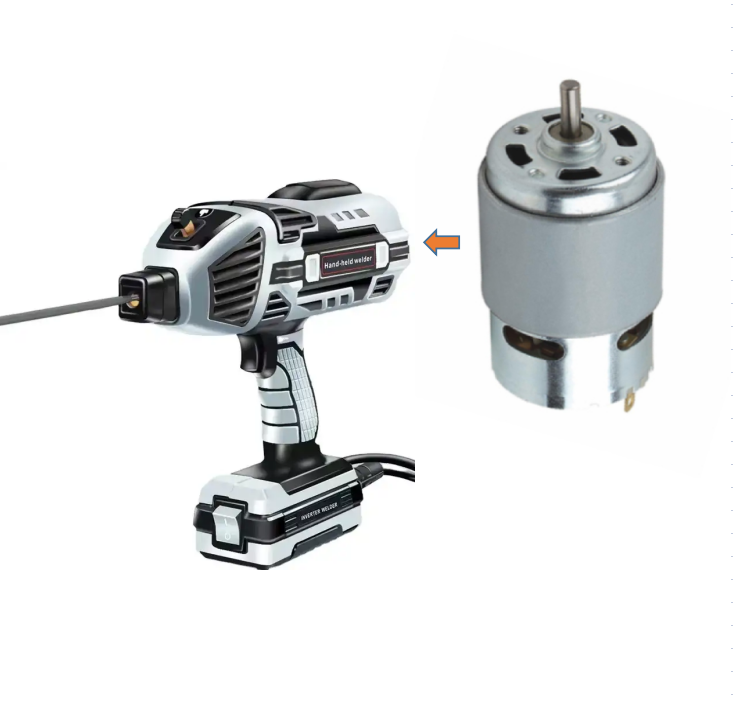

Motor Product Banner
Product Specifications

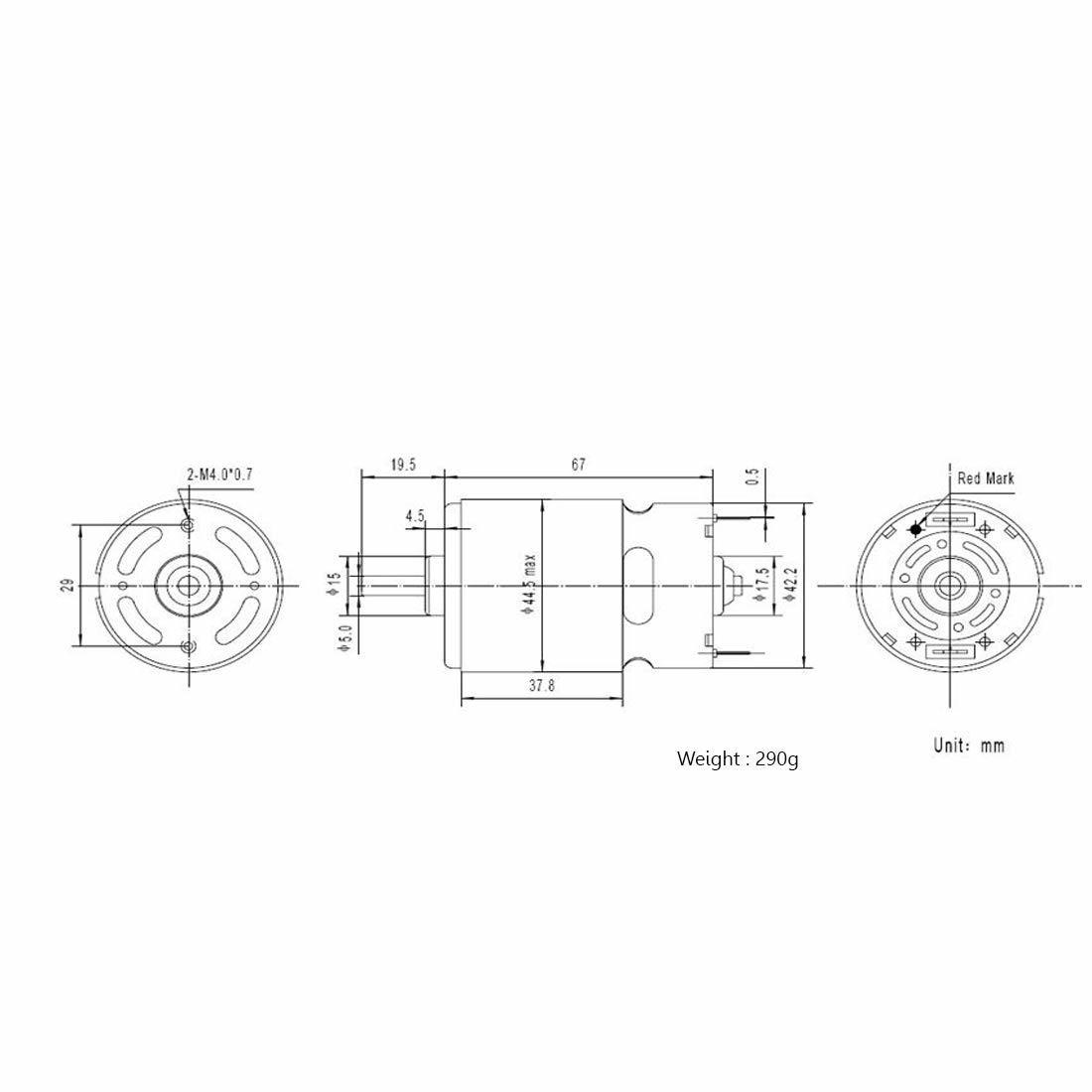

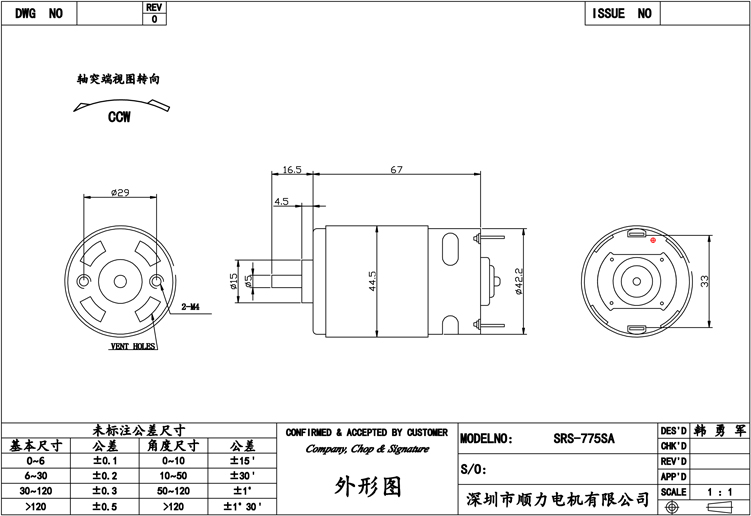

Motor Technical Drawing
Product Model 7 Series
Motor Diameter 7 Series: 420.3 mm (With protecting magnetic ring: 45 mm)
Motor Length 755 motor: 59mm
775 motor: 66 mm
Motor Voltage 7.2 - 48VDC
Motor Speed 3000 - 20000 RPM
Motor Shaft Standard 5mm D shaft (Shape and Length can be customized)
Motor Feature View 1

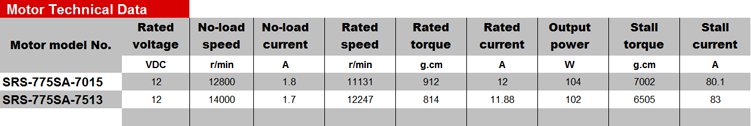

Motor Feature View 2
Product Details Display
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for new customers?
We provide various payment options including online payments with Master Card, Visa, etc. Customers can also pay via PayPal or TT (Telegraphic Transfer).
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to specific requirements, including shaft shape, length, and technical parameters.
Do you have international certificates for your motors?
Yes, we hold certificates such as CE, FCC, and ISO. If you have other specific certificate requirements, we can apply for them as needed.
How do you ensure quality control?
We employ professional inspection staff on every production line. Finished products undergo rigorous testing using machines like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Is it possible to customize the motor shaft?
Yes, the motor shaft shape and length can be fully customized to meet your specific application needs beyond our standard 5mm D shaft.
