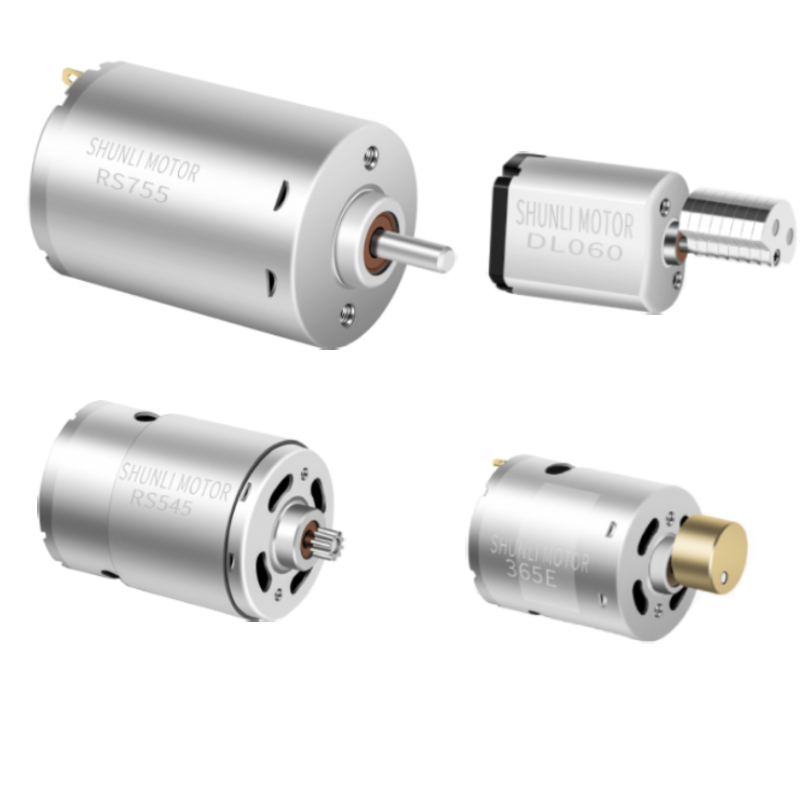

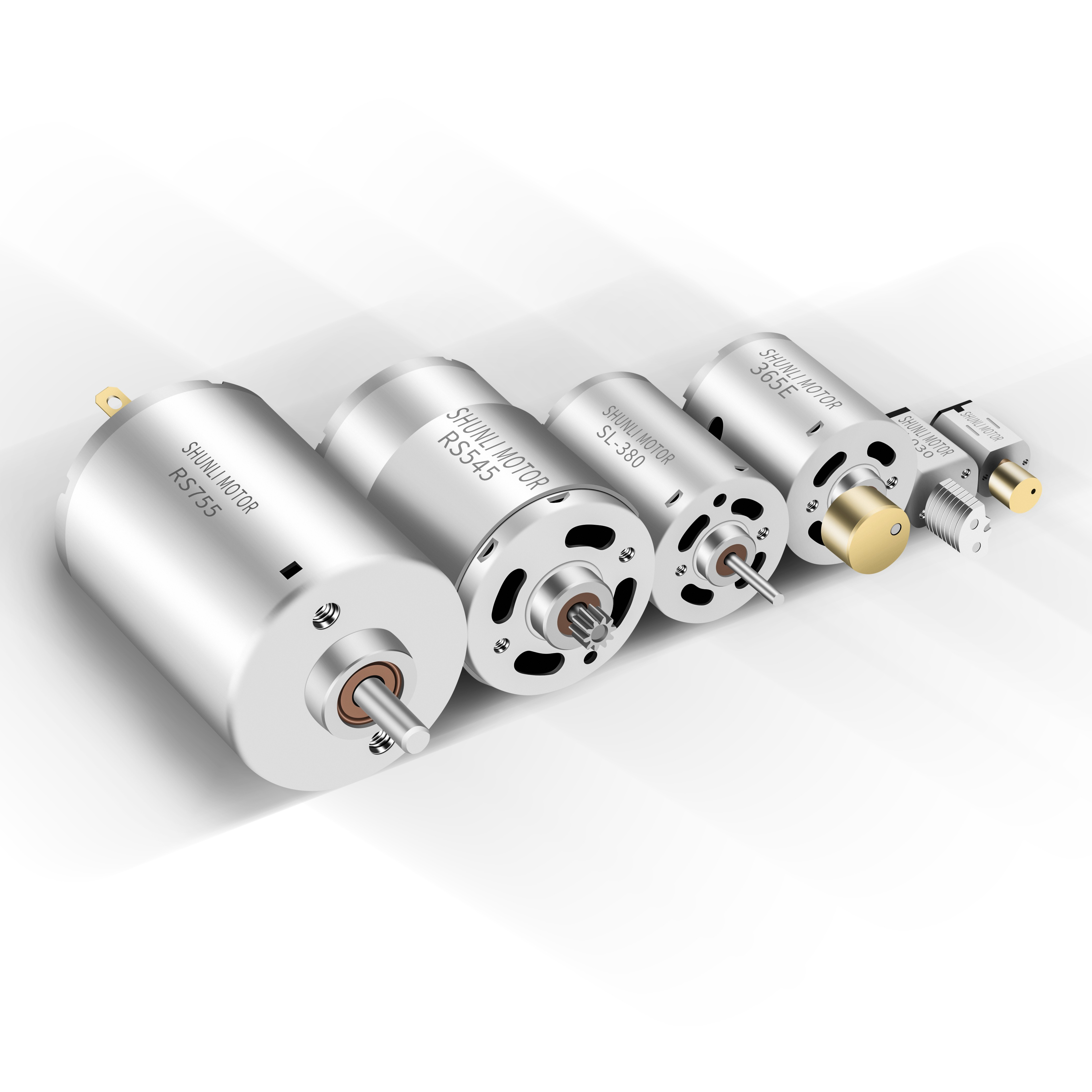

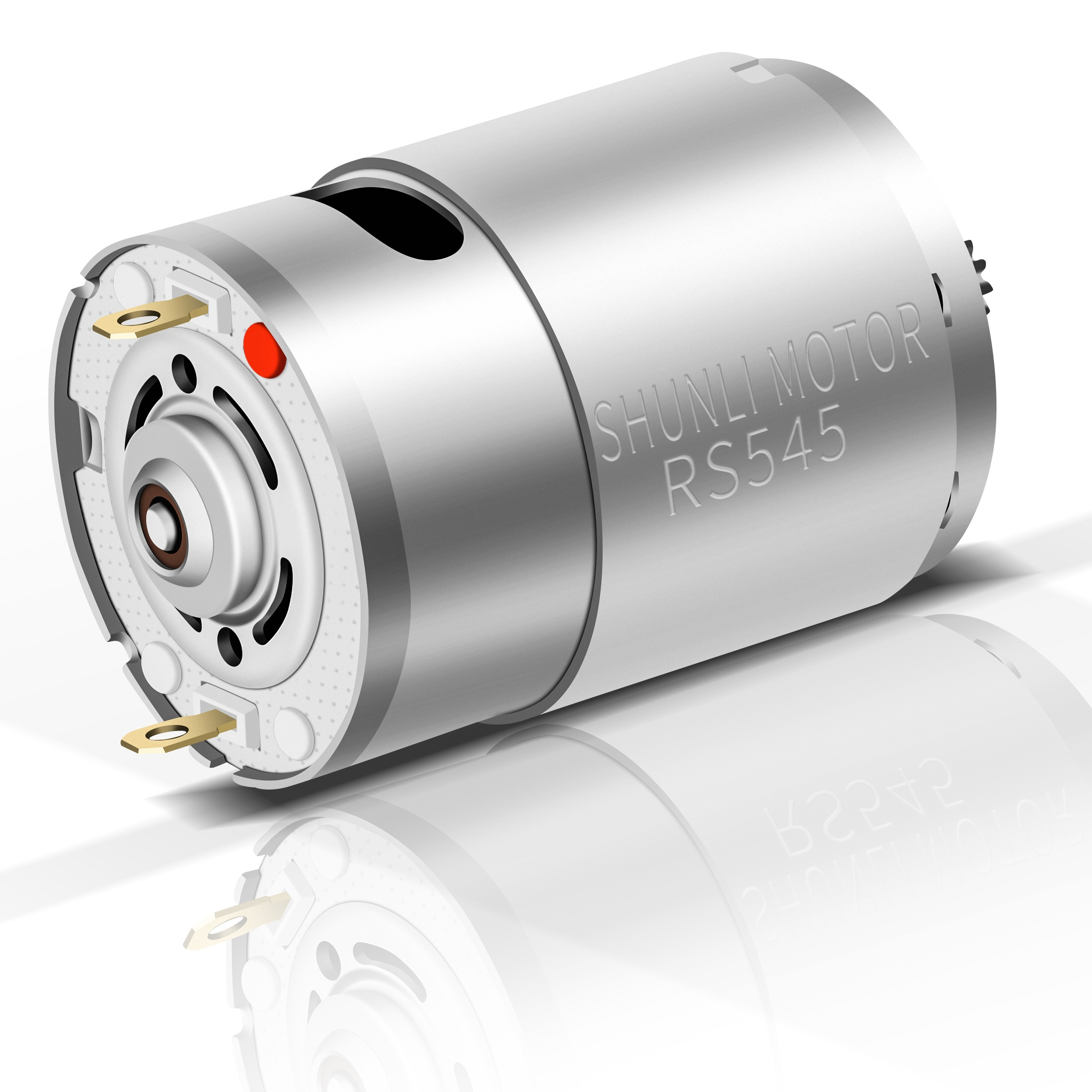

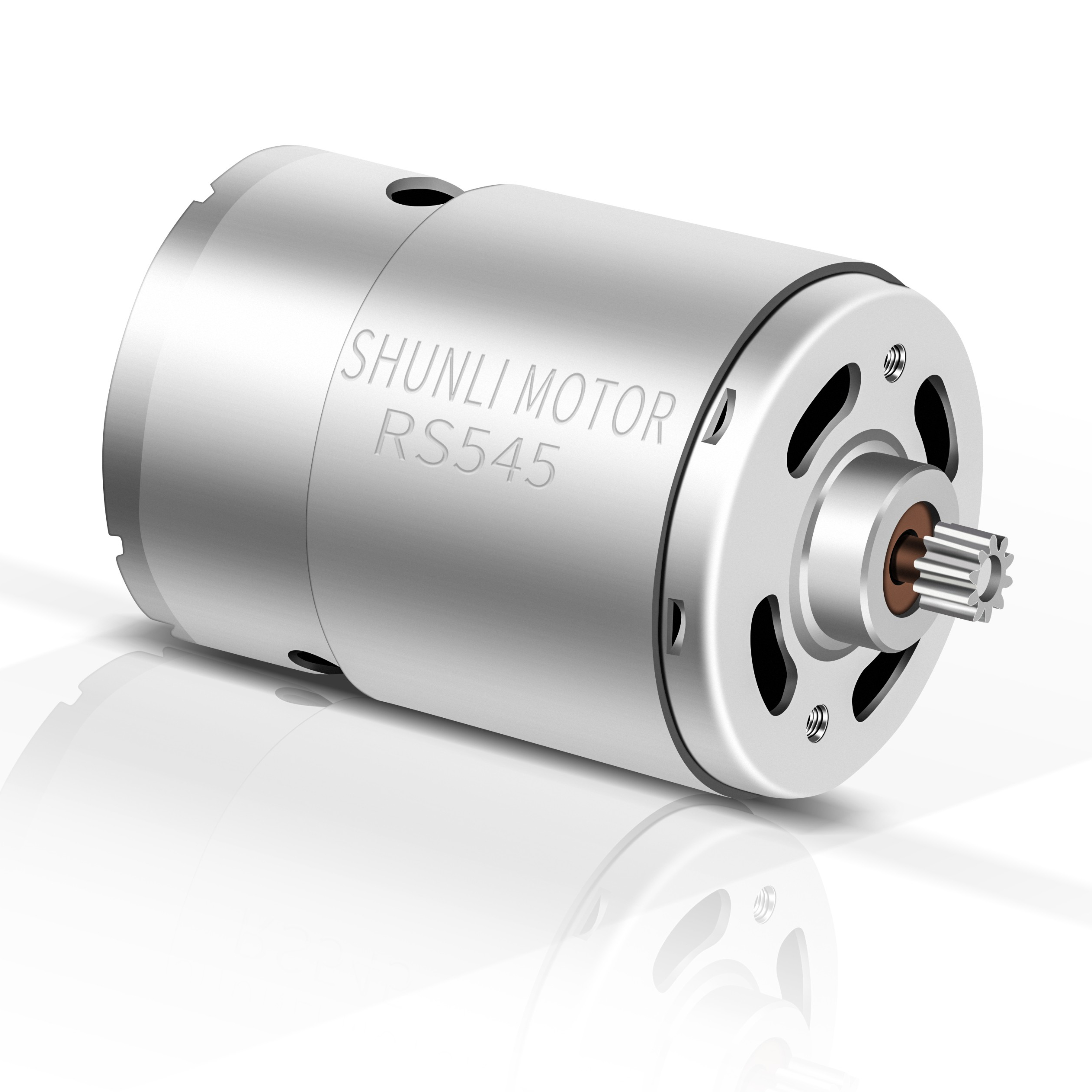

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
1 / 5
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

RS 550 545 555 DC Motor
⚙️ Application
Application Range
6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM
📋 Product Details

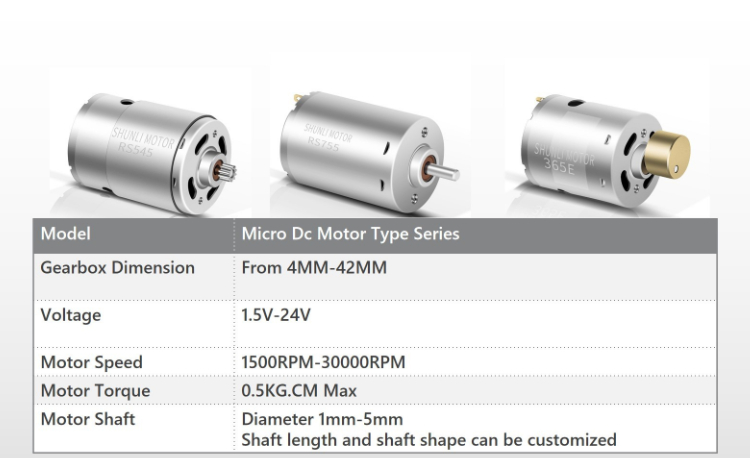

Product Details

Motor Customized Specification

📊 PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated
Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m) Power (W)
RS-550H-23128R 24VDC 4500 0.1 3932 0.39 25.7 10.6
RS-550H-6034 12VDC 16000 1.12 13613 4.96 25.6 40.36
RS-555H-3540 12VDC 7800 0.3 6708 1.84 21.9 15.35
RS-555H-23100 24VDC 7000 0.14 6004 0.77 19.2 12.09
📐 RS - 545 A Dimension
RS-545A Dimension
🖼️ Product Gallery
Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
Packaging Banner
❓ Frequently Asked Questions
What is the voltage range for these DC motors?
The RS 545, 550, and 555 series motors typically operate within a range of 6V to 24V DC, depending on the specific model and winding configuration.
What is the maximum speed these motors can achieve?
These high RPM DC motors can reach speeds up to 30,000 RPM, making them ideal for applications requiring rapid rotation.
Can the technical specifications be customized?
Yes, technical data such as voltage, speed, and torque can be customized to meet specific application requirements.
Are these motors suitable for power tools?
Absolutely. The RS series is widely used in cordless drills, vacuum cleaners, and various automotive electronics due to their high power density.
What is the difference between RS-550 and RS-555 models?
The primary differences lie in the motor length and internal windings, which result in different torque and power output profiles suitable for different mechanical loads.
