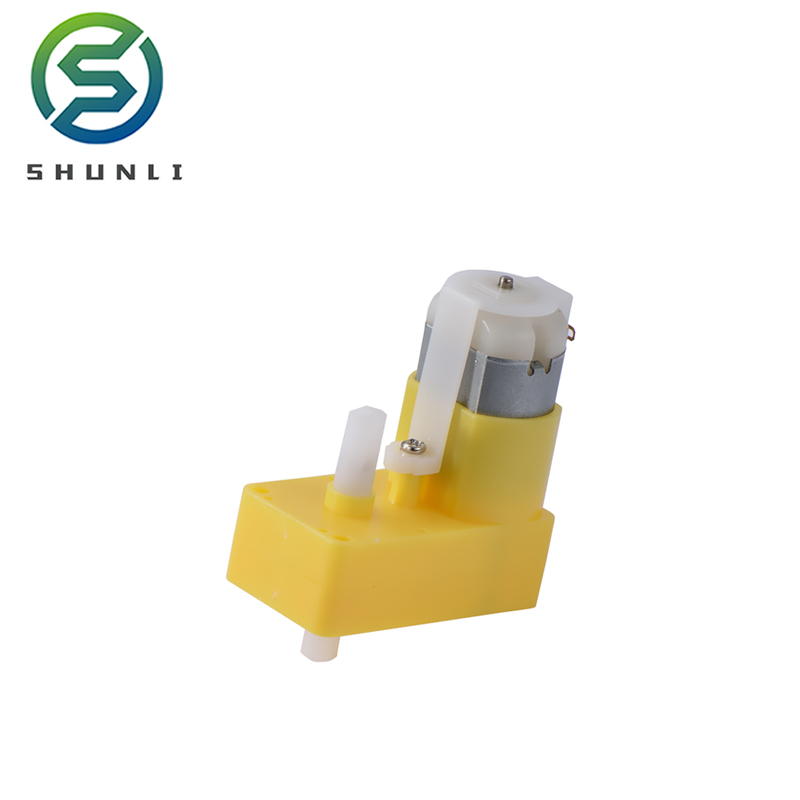

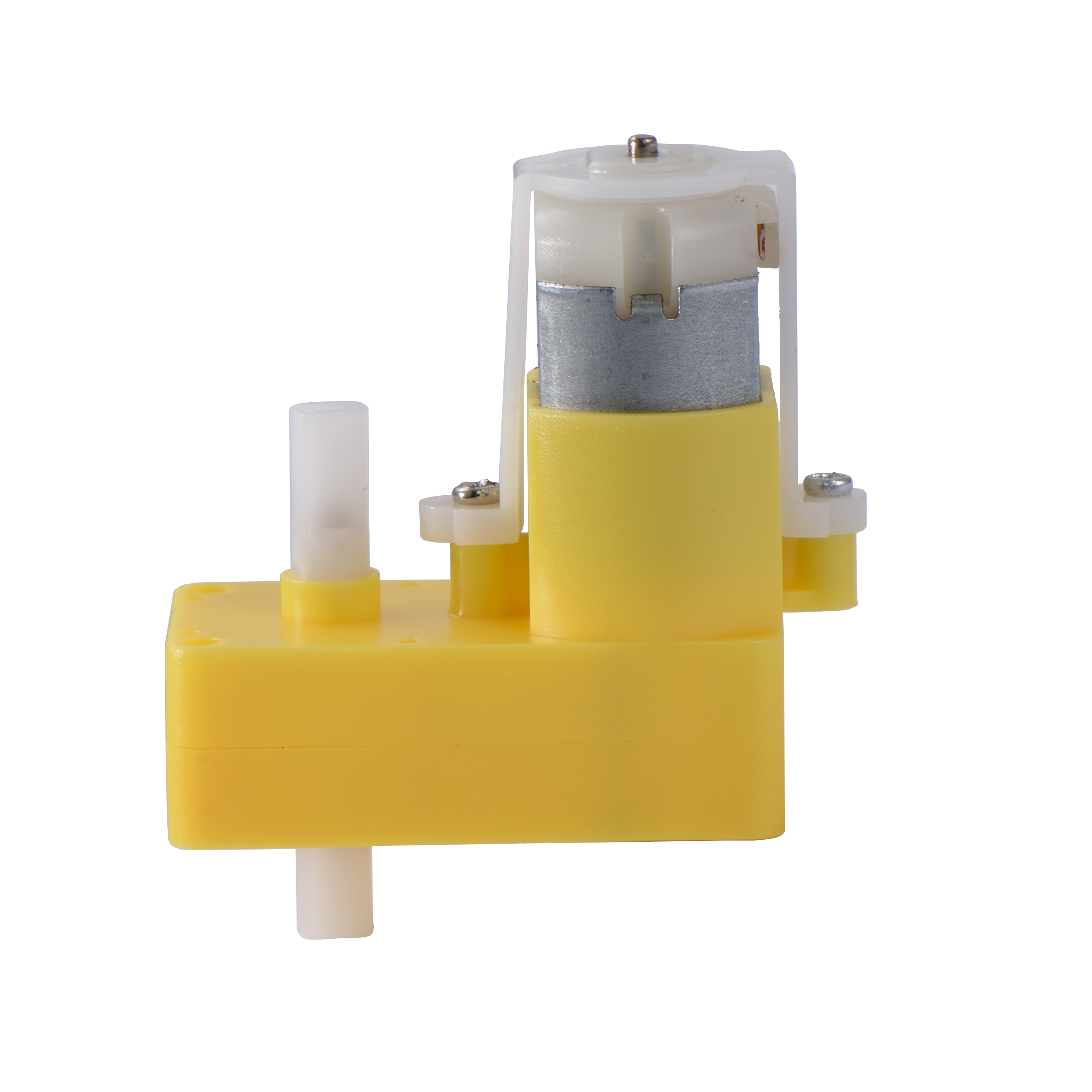

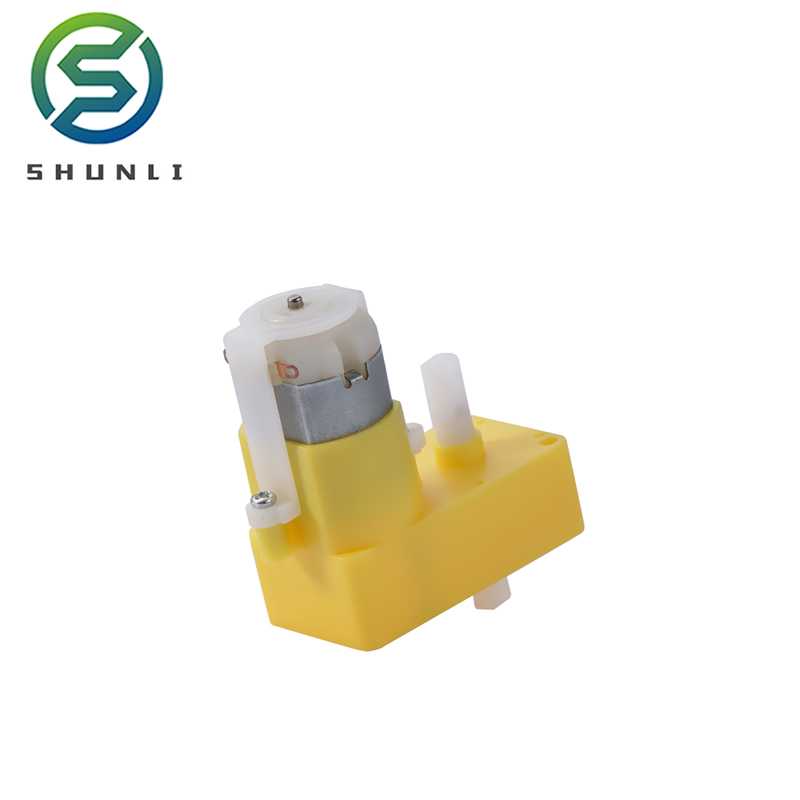

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
1 / 5
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Send Inquiry

Product Description

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Promotion Banner
🚀 Promotion
Yellow Dc Gear Motor Details

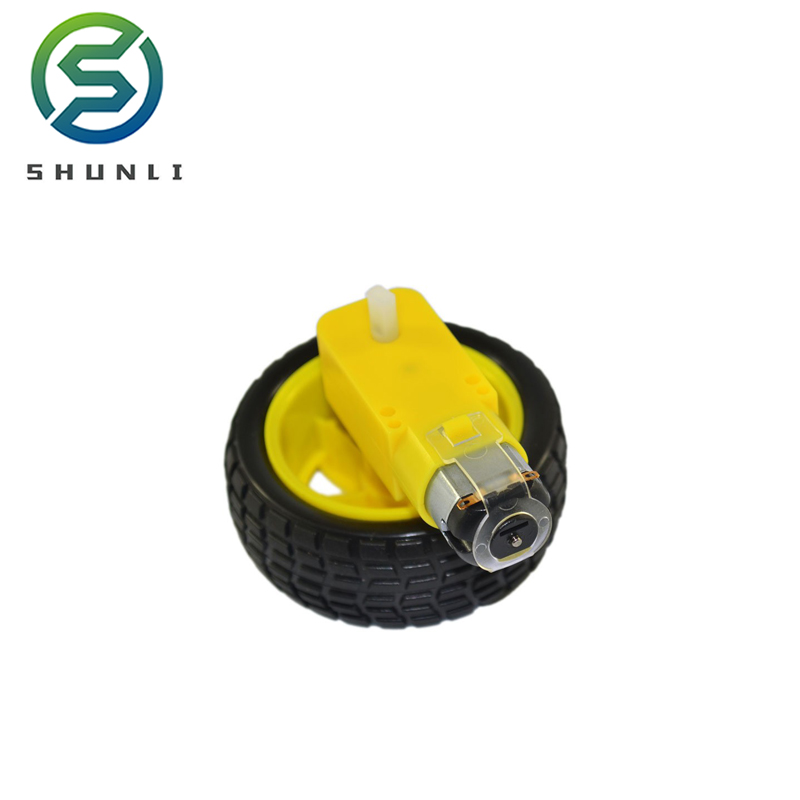

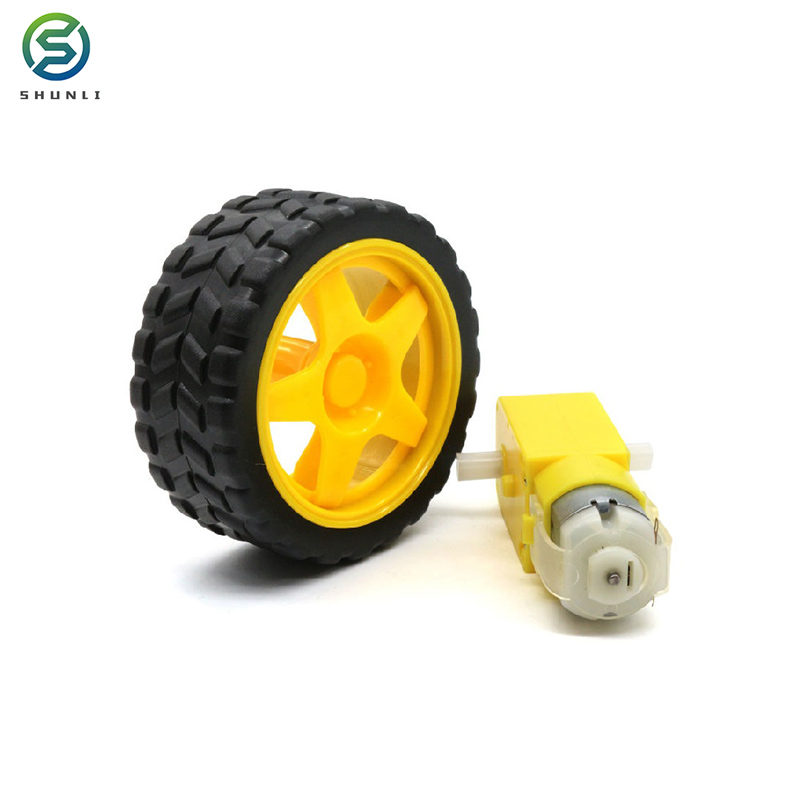

Plastic Wheels and Motor Assembly
⚙️ Characters & Specifications
Model Voltage No-load Load Stall
Working Voltage (V) Rated Speed Current Speed Current Torque Output Stall torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
📐 Technical Drawing
Motor Dimension Drawing
🖼️ Product Gallery
DC Motor View 1
DC Motor View 2
DC Motor View 3
DC Motor View 4
DC Motor View 5
DC Motor View 6
❓ Frequently Asked Questions
1. What is the operating voltage for this DC gear motor?
The motor supports a wide working voltage range from 3.0V to 12.0V, making it versatile for various battery-powered applications.
2. What are the typical no-load speeds for these models?
Depending on the specific model, the no-load speed ranges from 50 rpm to 100 rpm at rated voltage.
3. Are the wheels included with the motor?
Yes, this product is designed as a set featuring the yellow DC gear motor equipped with matching plastic wheels, ideal for toy car projects.
4. What is the stall torque of the SGP01S series?
The stall torque varies by model; for example, the SGP01S-A130-18100-220 model provides a stall torque of approximately 4.003 Kg.m.
5. Can this motor be used for DIY robotics?
Absolutely. Due to its compact size, integrated gearbox, and included wheels, it is a popular choice for educational robots, smart cars, and DIY electronic projects.
6. What is the typical current consumption under load?
Under rated load conditions, the current consumption typically ranges between 0.3A and 0.5A depending on the specific model configuration.
