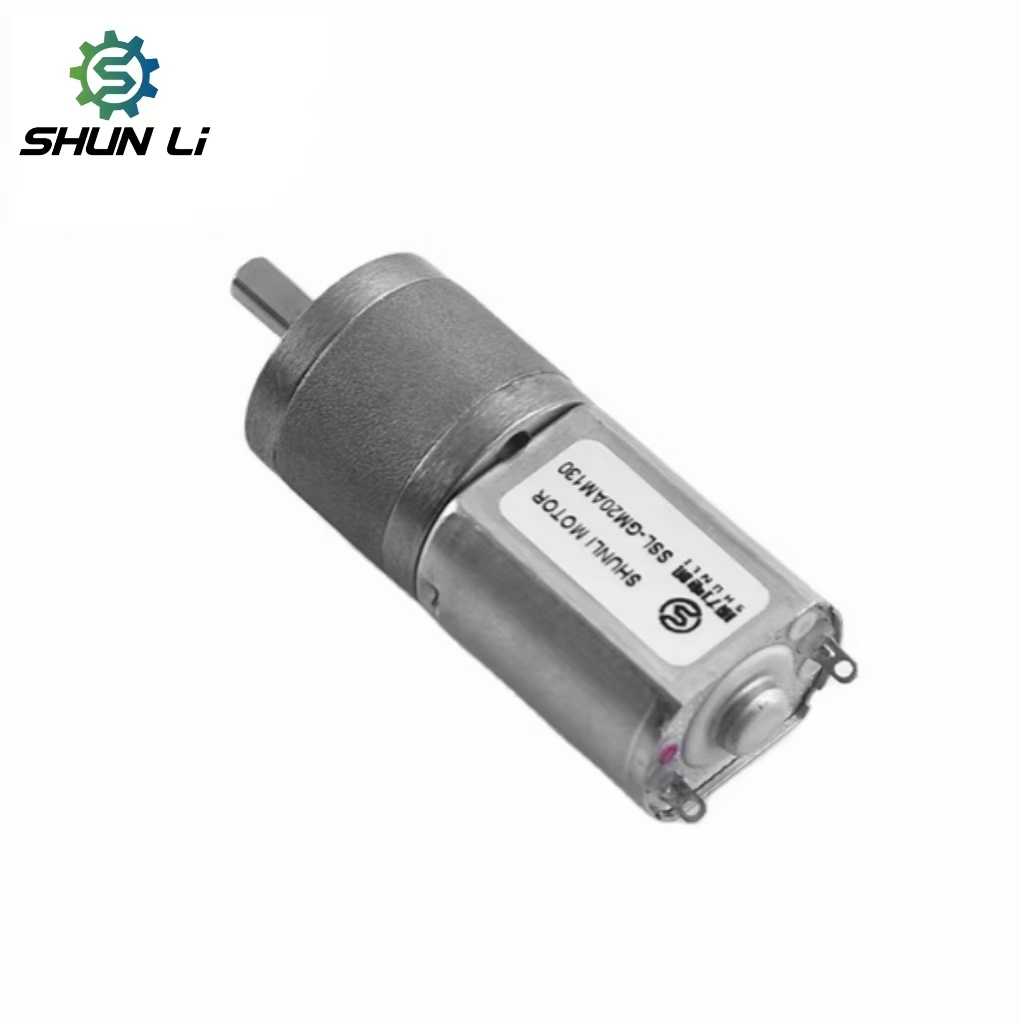

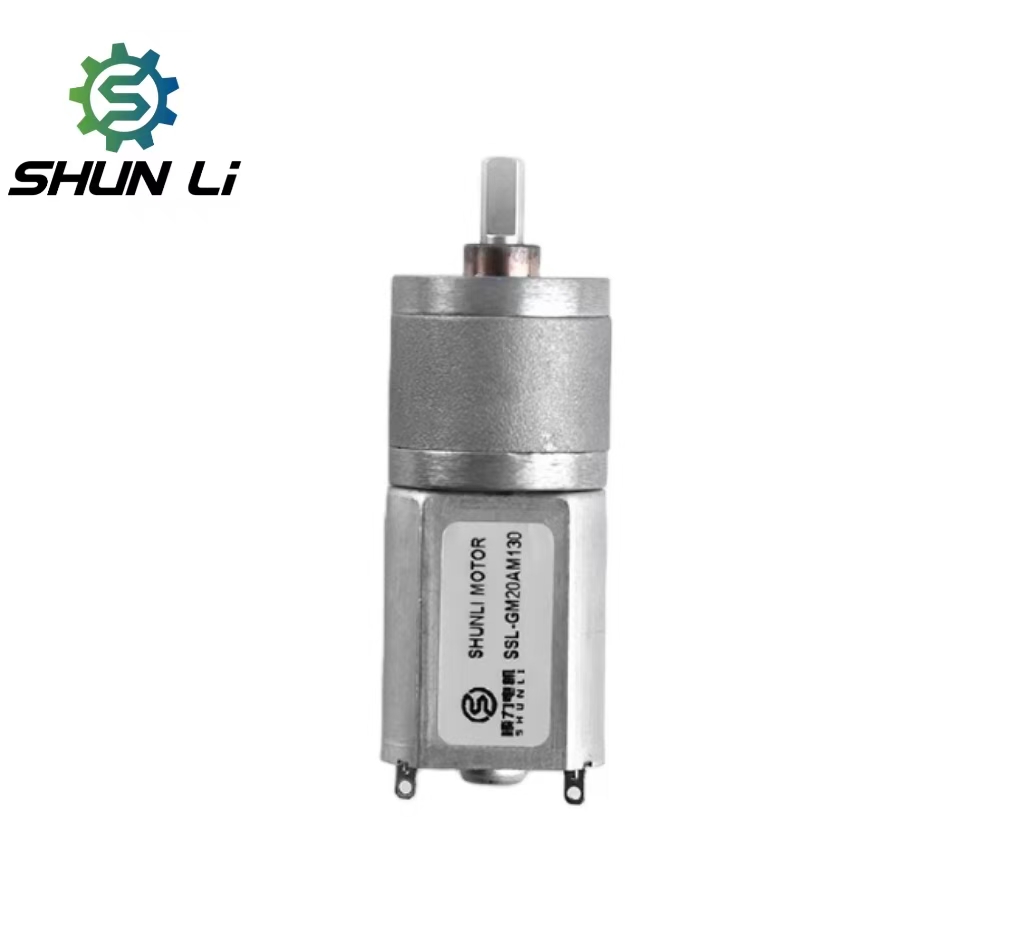

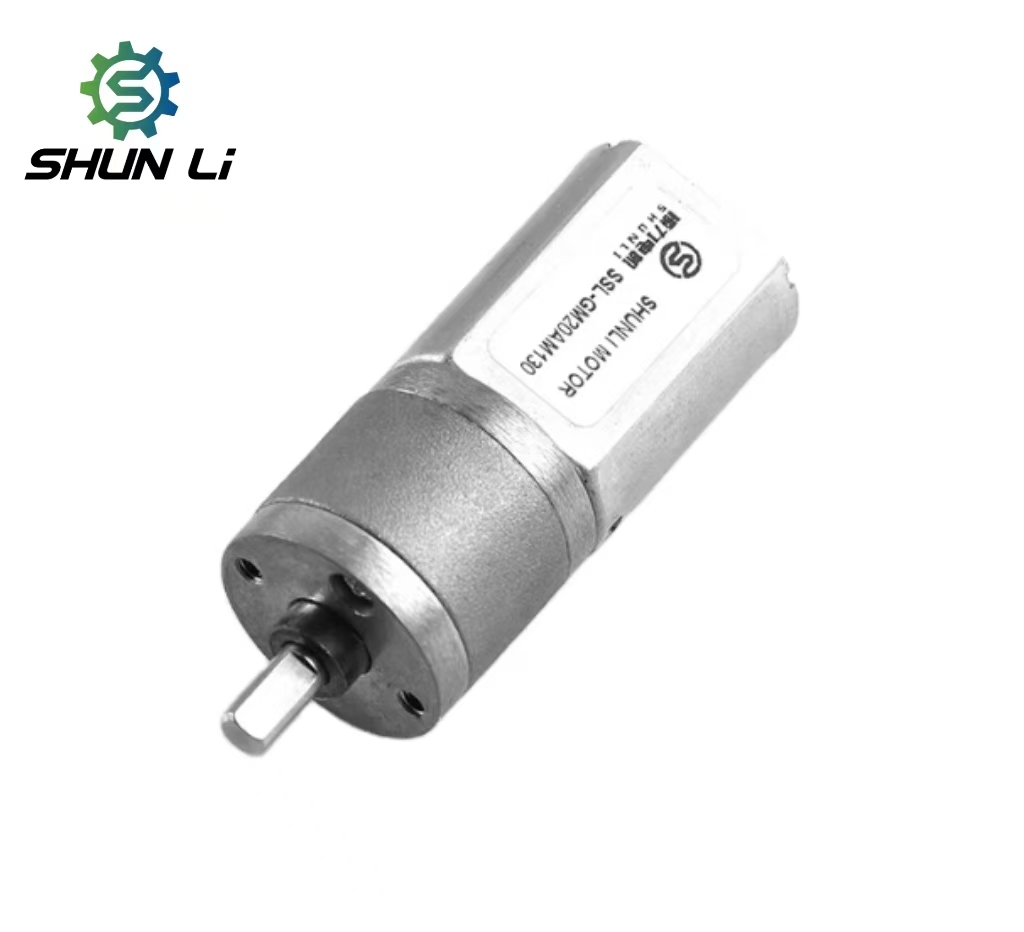

20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
1 / 5
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor
20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

20mm Gearbox Motor with CE Rohs Permanent Magnet Cw/ccw 6V 12V 24v Electric Brush Dc Geared Motor

Send Inquiry

Product Description

Product Display
⚙️ Product Specifications
Motor Detail
Product Model GM20AM130/180
Gearbox Length 14.5~20.5mm
Speed 32RPM-88RPM
Voltage 6V/5V
Torque 0.1N.m/0.32N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
📊 Dimensions & Technical Data

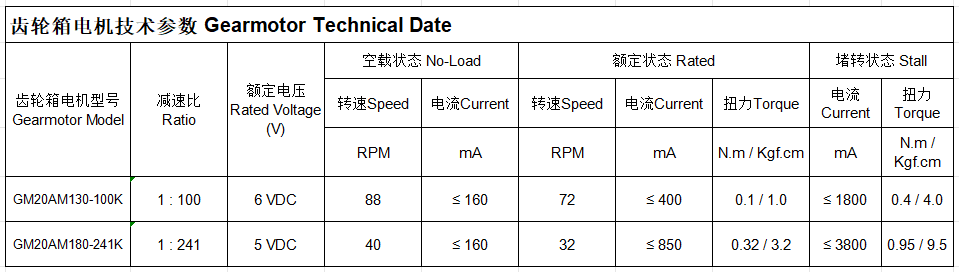

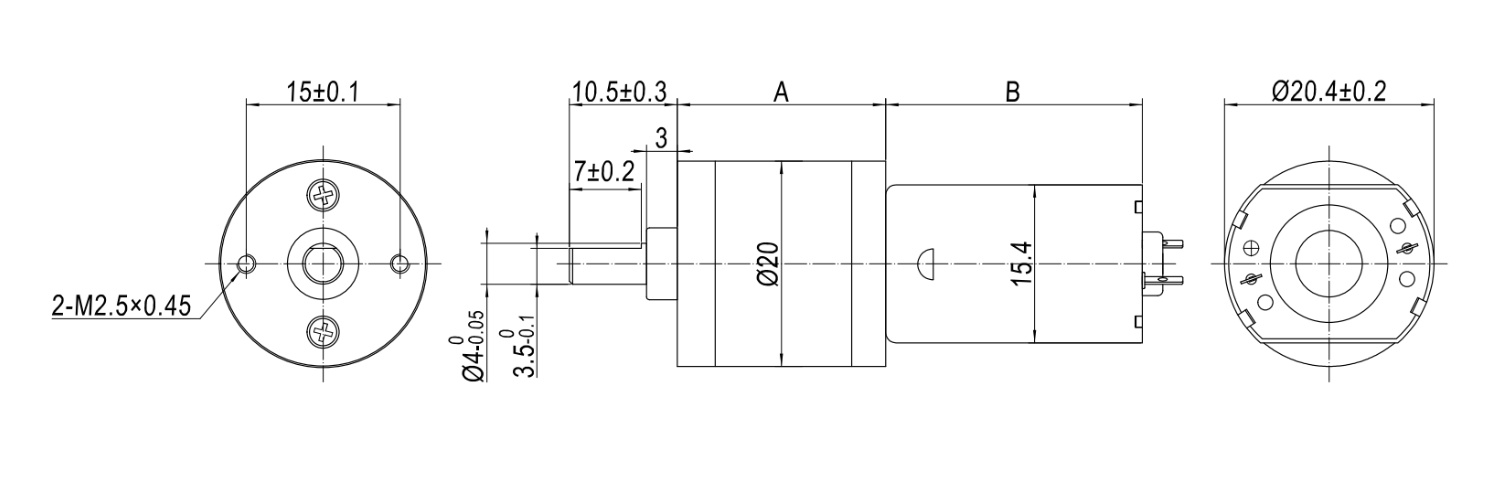

Technical Drawing Performance Curve

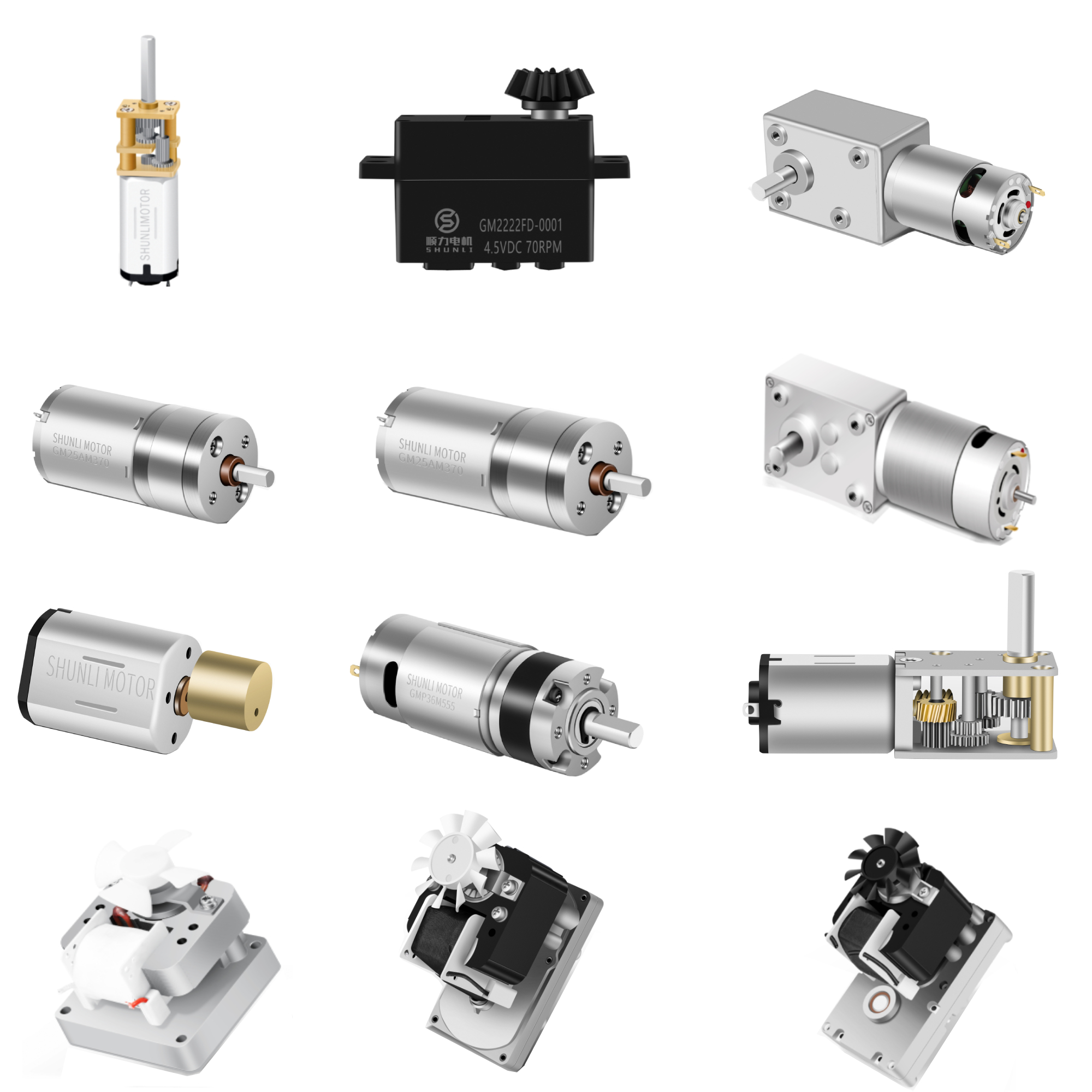

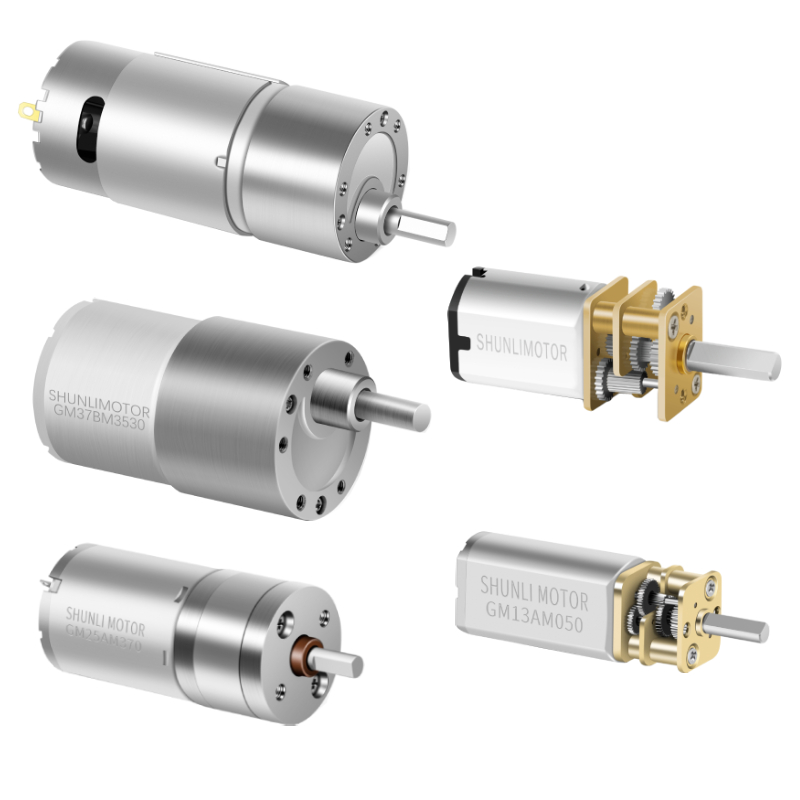

📸 Product Gallery
Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4 Gallery Image 5 Gallery Image 6
❓ Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can facilitate orders through online assurance platforms, supporting Master Card, Visa, etc. Customers can also pay with PayPal or TT.
Q3: Can you customize a motor if I can't find a suitable one on your website?
A: Yes, we can customize a suitable motor according to our customer's specific requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5: How is your Quality Control process?
A: We have professional checking staff on every production line. Finished motors undergo comprehensive testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
Q6: Do you provide technical support for integration?
A: Yes, based on our 14 years of manufacturing experience, we can provide parameters and technical guidance to ensure the motor meets your application needs.
