Micro Speed Dc 6v 12v Reduction Gearbox 12mm Electric Mini Dc Geared Motor

Product Description

Product Overview
⚙️ Technical Specifications
Motor Details
Product Model GM12AMN10/N20/N30
Gearbox Length 9mm-12.1mm
Speed 55RPM-2500RPM
Voltage 4.6V/4.5V/6V
Torque 5.5 N.m/2.8 N.m/4.0 N.m
Customization Transmission Dimensions And Motor Parameters Can Be Customized
📐 Dimensions & Engineering Data

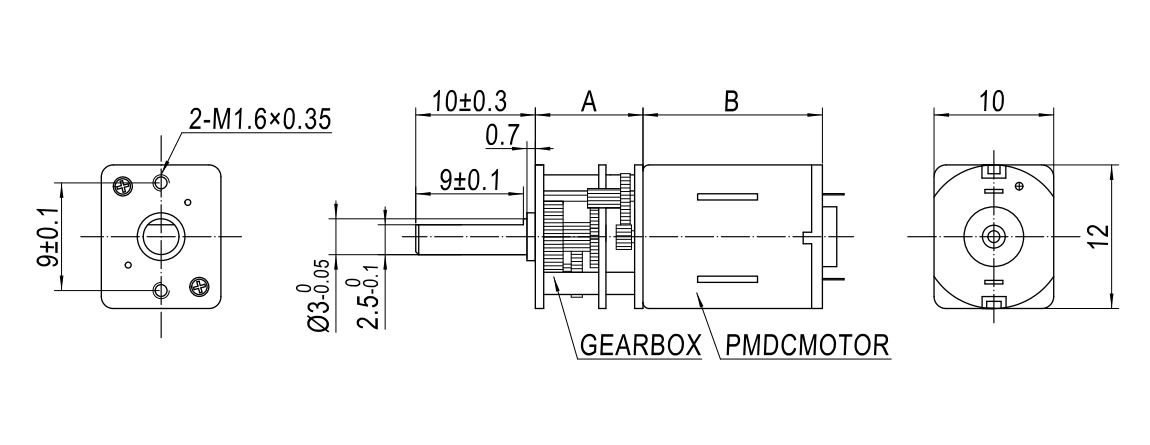

Technical Drawing 1

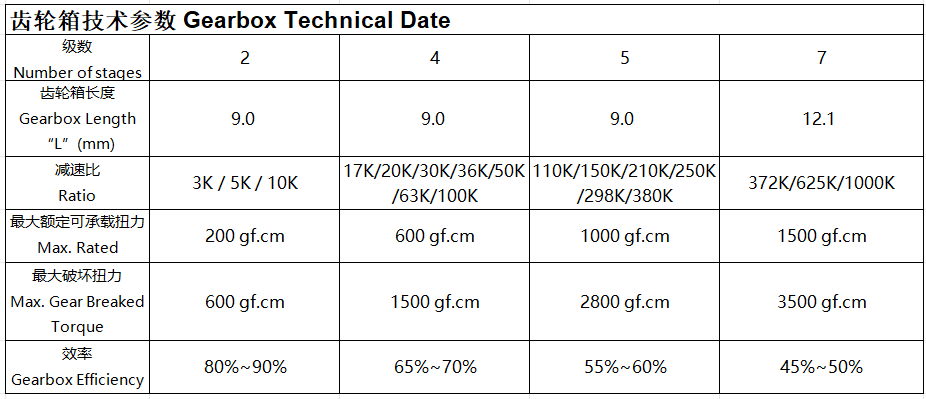

Technical Drawing 2
📸 Product Gallery
Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
Frequently Asked Questions
1. Are you a trading company or manufacturer?

We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

2. What is the payment term for new customers?

We can draw up an Online Assurance Order for new customers, which can be paid via Master Card, Visa, etc. Customers can also pay via PayPal or TT.

3. Can you customize a motor if I can't find a suitable one on the website?

Yes, we can customize a suitable motor according to our customer's specific requirements and technical parameters.

4. Do you have certificates for your motors?

Yes, we have CE, FCC, ISO, and other relevant certifications. If you have other specific certificate requirements, we can apply for them for you.

5. How do you handle Quality Control?

We have professional inspection staff at every production line process. Finished motors undergo testing with specialized machines including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.

6. What is the range of customization supported?

We support customization for transmission dimensions, gearbox length, speed (55RPM-2500RPM), voltage, and torque parameters to match your application needs.
