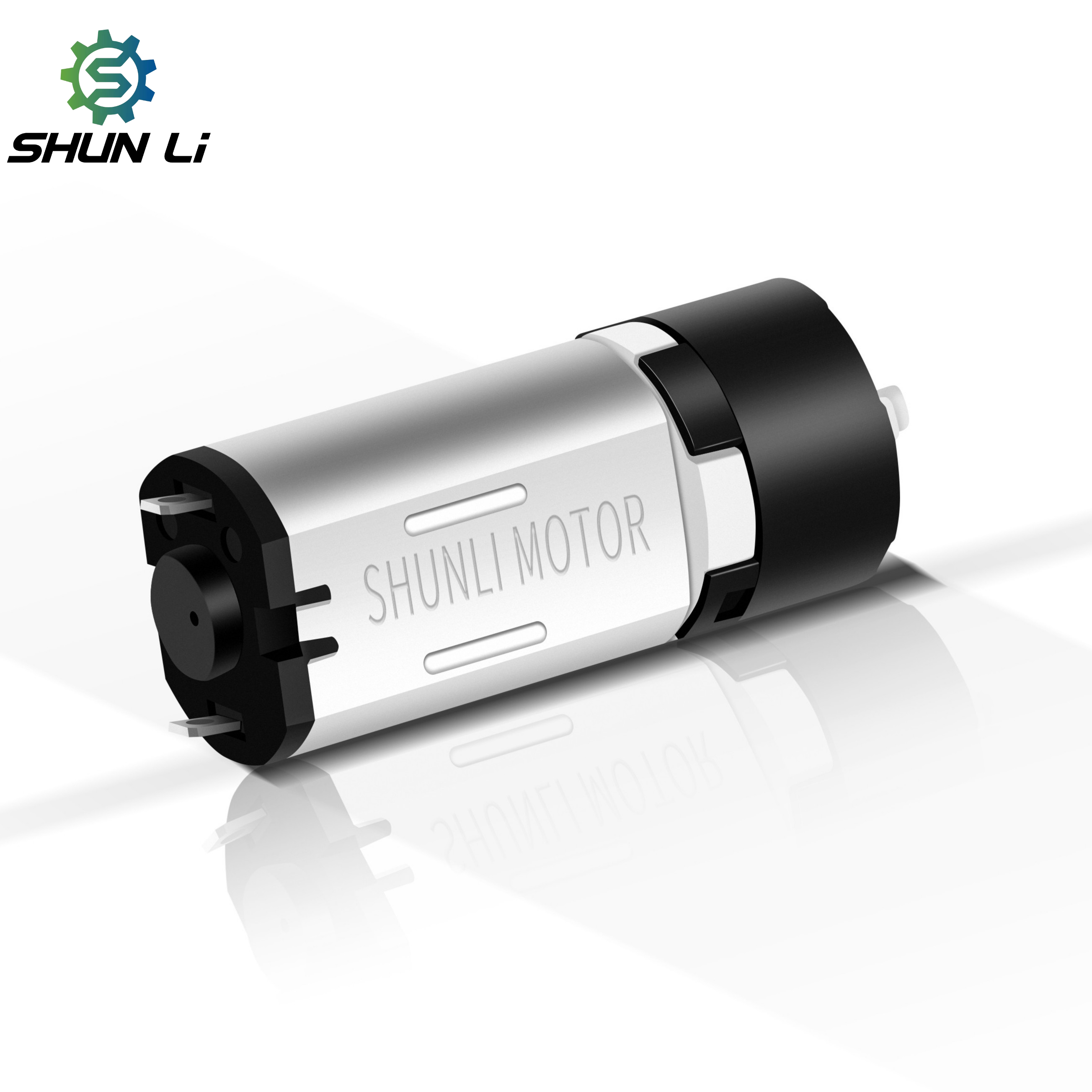

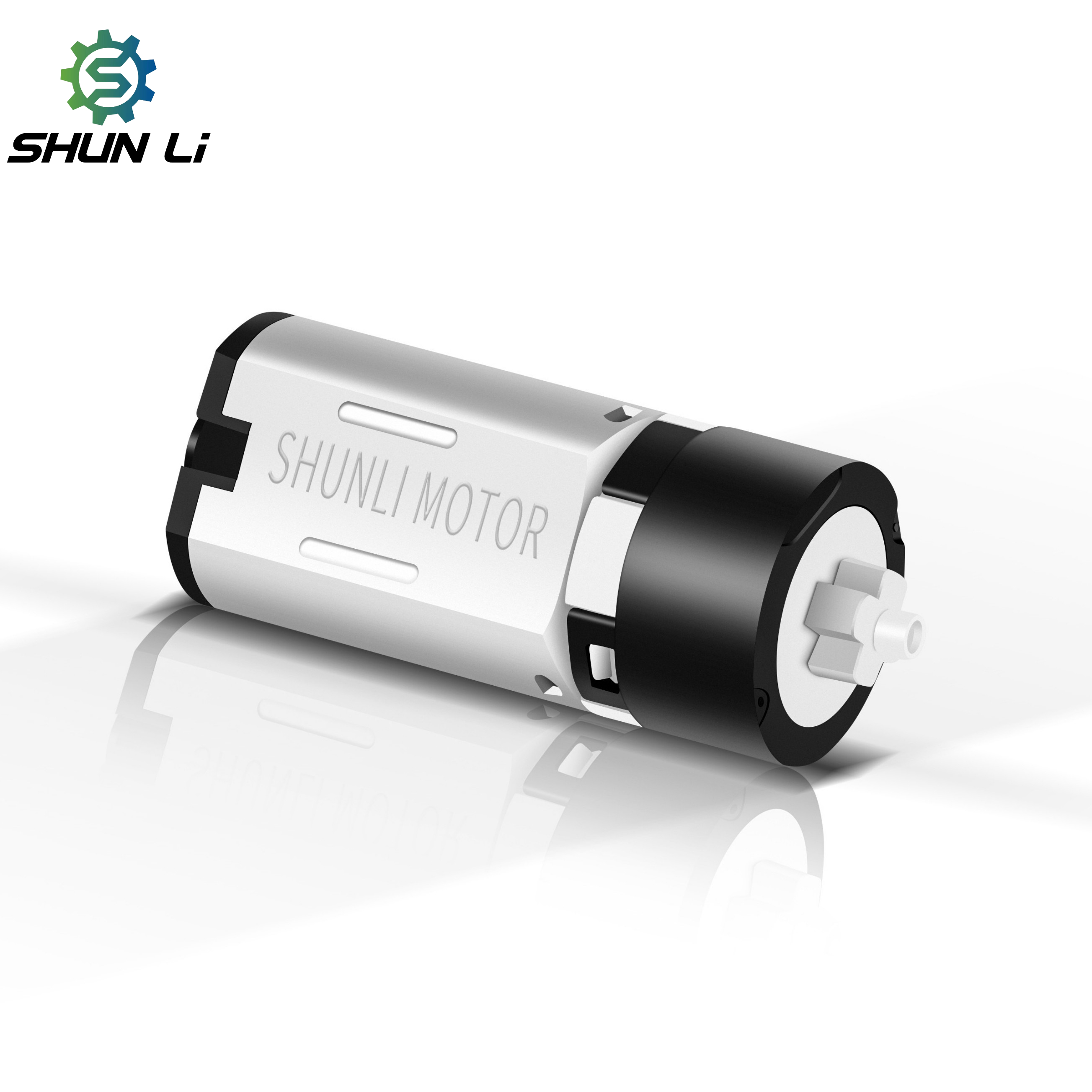

Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
1 / 5
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox
Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox

Shunli Customizable Bldc Dc Motor 7.4v Brush 65Rpm~180Rpm 12mm Planetary Gear Motor With Gearbox

Send Inquiry

Product Description

Motor Overview
Product Specifications

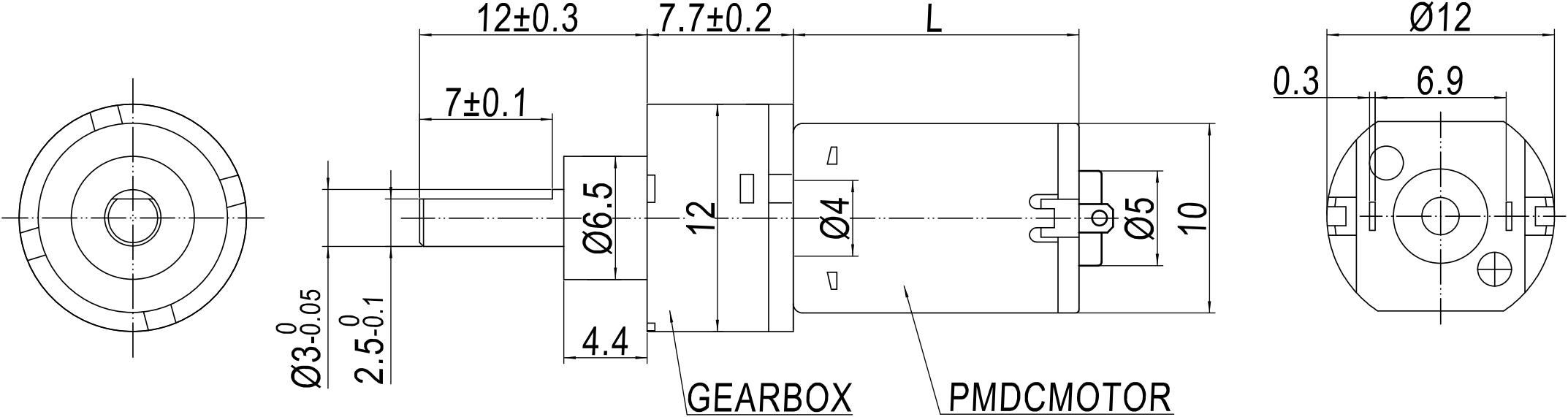

Technical Drawing
Product Model GMP12PMN10/N20/N30
Gearbox Length 19.7±0.5mm
Speed 65RPM-205RPM
Voltage 4.6V/4.5V/12V
Torque 0.2~0.5 mN.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized
Product Feature 1

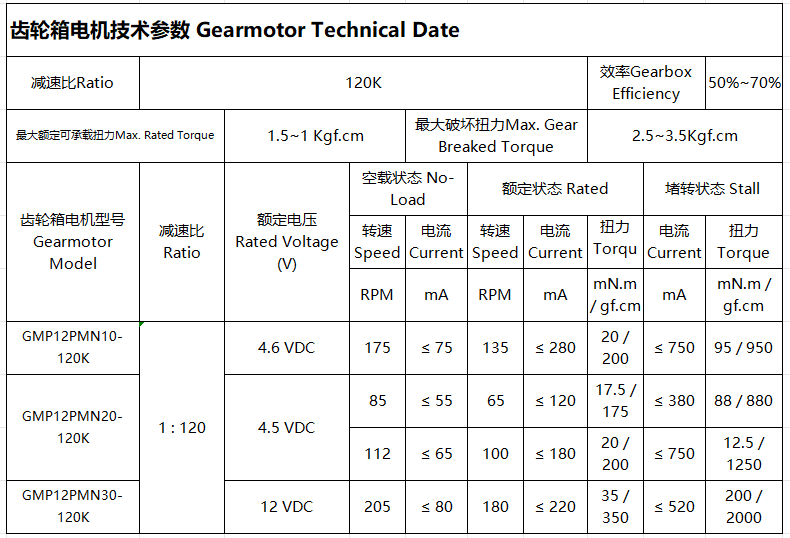

Product Feature 2
Product Gallery
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We support multiple payment methods including Online Assurance Orders (Master Card, Visa), PayPal, and T/T.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize motor parameters and transmission dimensions according to our customer's specific requirements.
What certificates do your motors have?
Our products are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certificates if required.
How do you ensure quality control?
We have professional inspection staff on every production line and utilize specialized equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers.
Do you support customization for transmission dimensions?
Yes, both the transmission dimensions and the motor parameters can be fully customized to fit your application.
