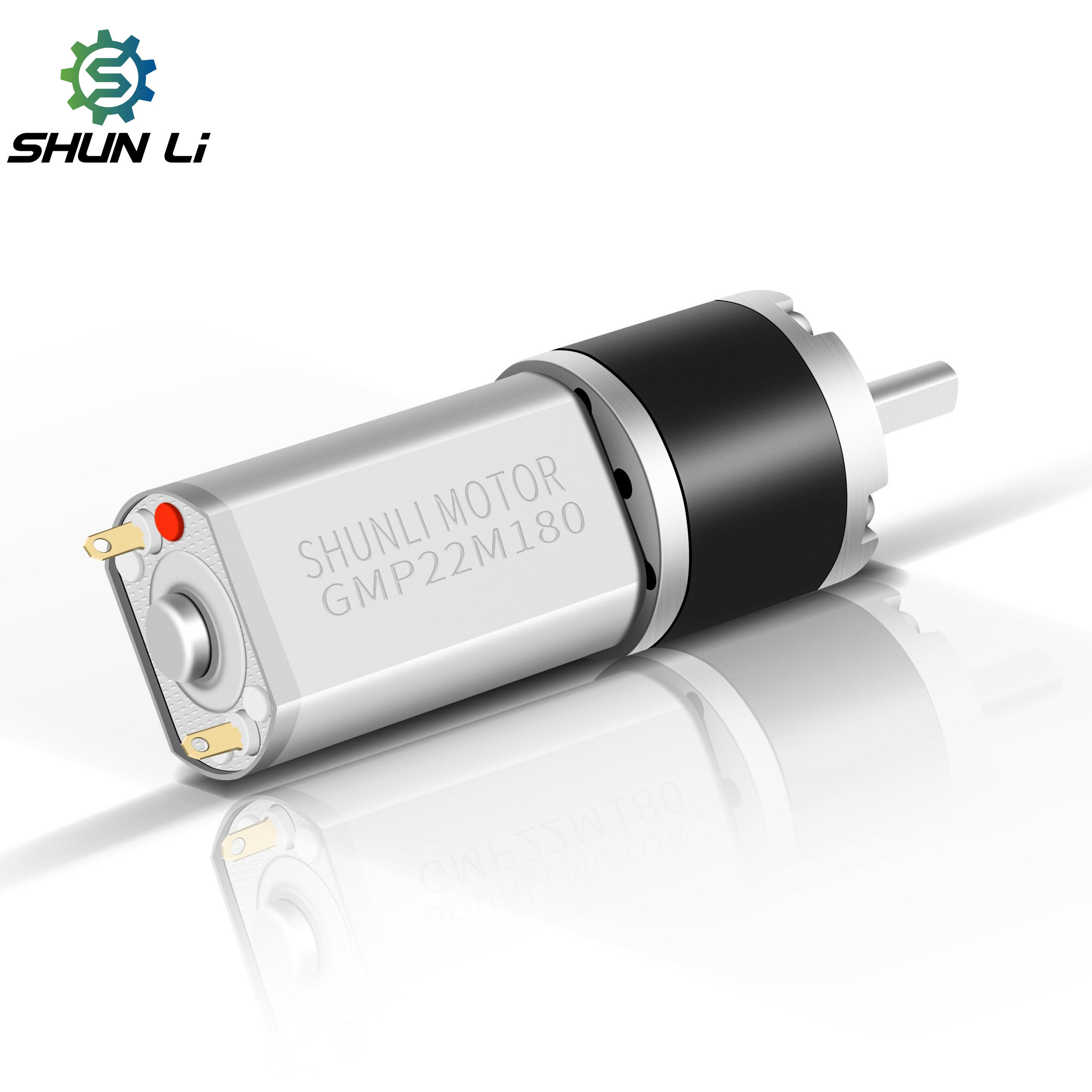

Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
1 / 5
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier
Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Customized 6v/12v/24v 22mm Planetary Gearbox Plus Permanent Magnet DC Motor China Supplier

Send Inquiry

Product Description

Product Header
PRODUCT SPECIFICATIONS
Motor Overview
Product Model GMP22M130/180
Gearbox Length 13.3~27.3MM
Speed 30RPM-138RPM
Voltage 6V/5V
Torque 0.095 N.m / 0.32 N.m
Customization Transmission Dimensions And Motor Parameters Can Be Customized

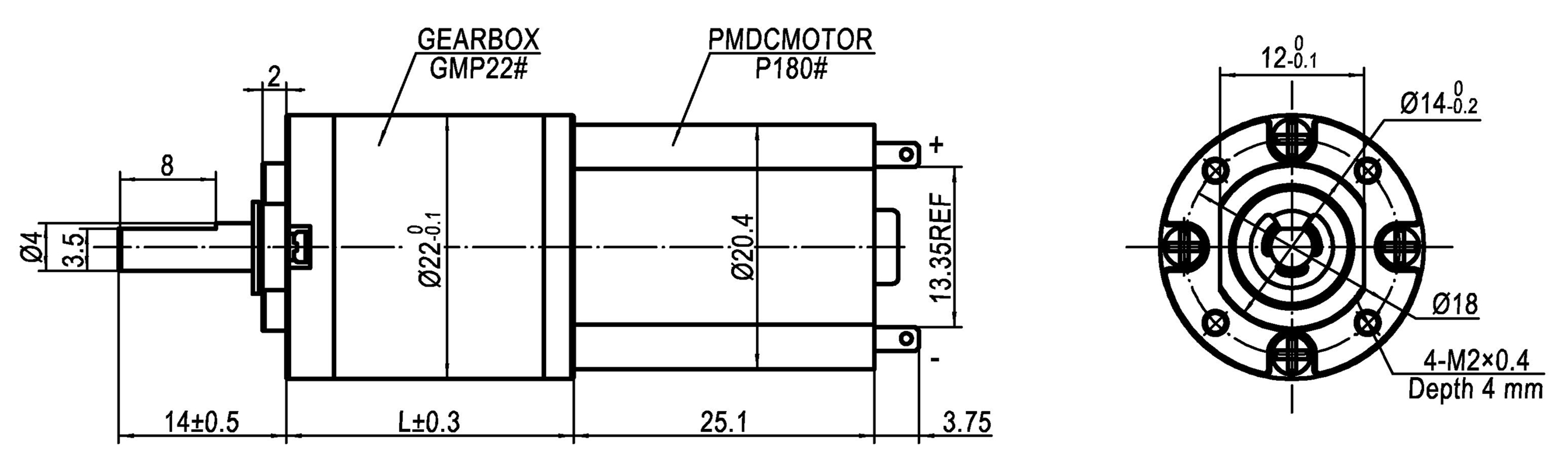

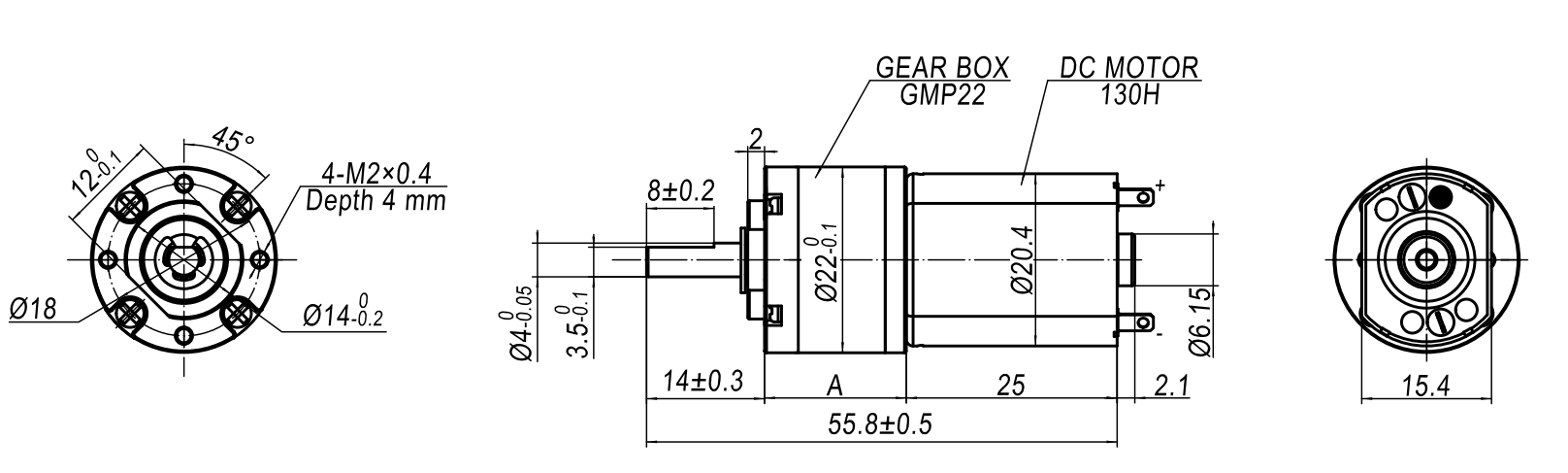

Technical Drawing

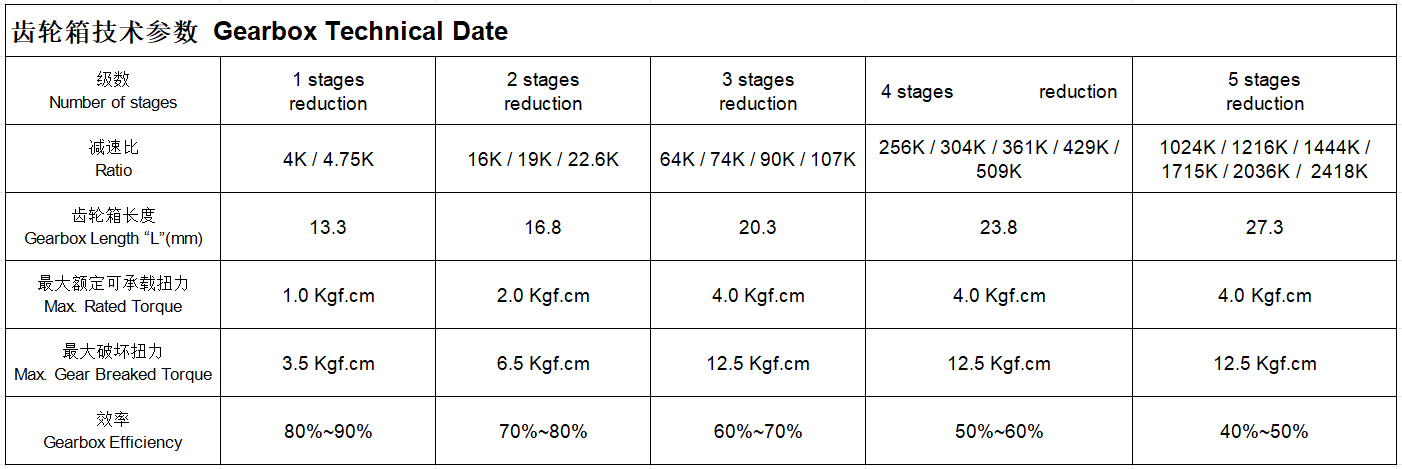

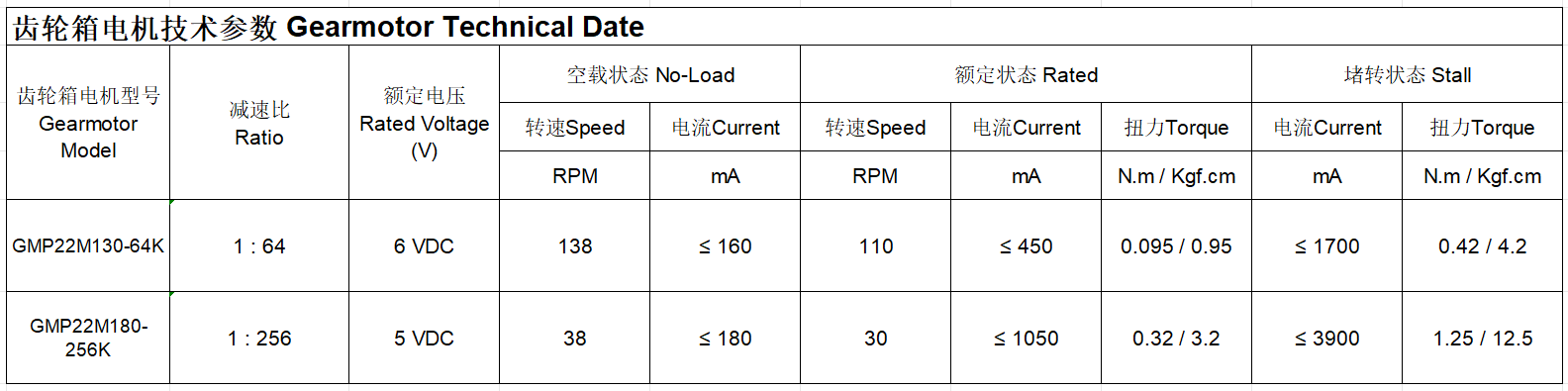

Performance Chart 1 Performance Chart 2
PRODUCT DISPLAY

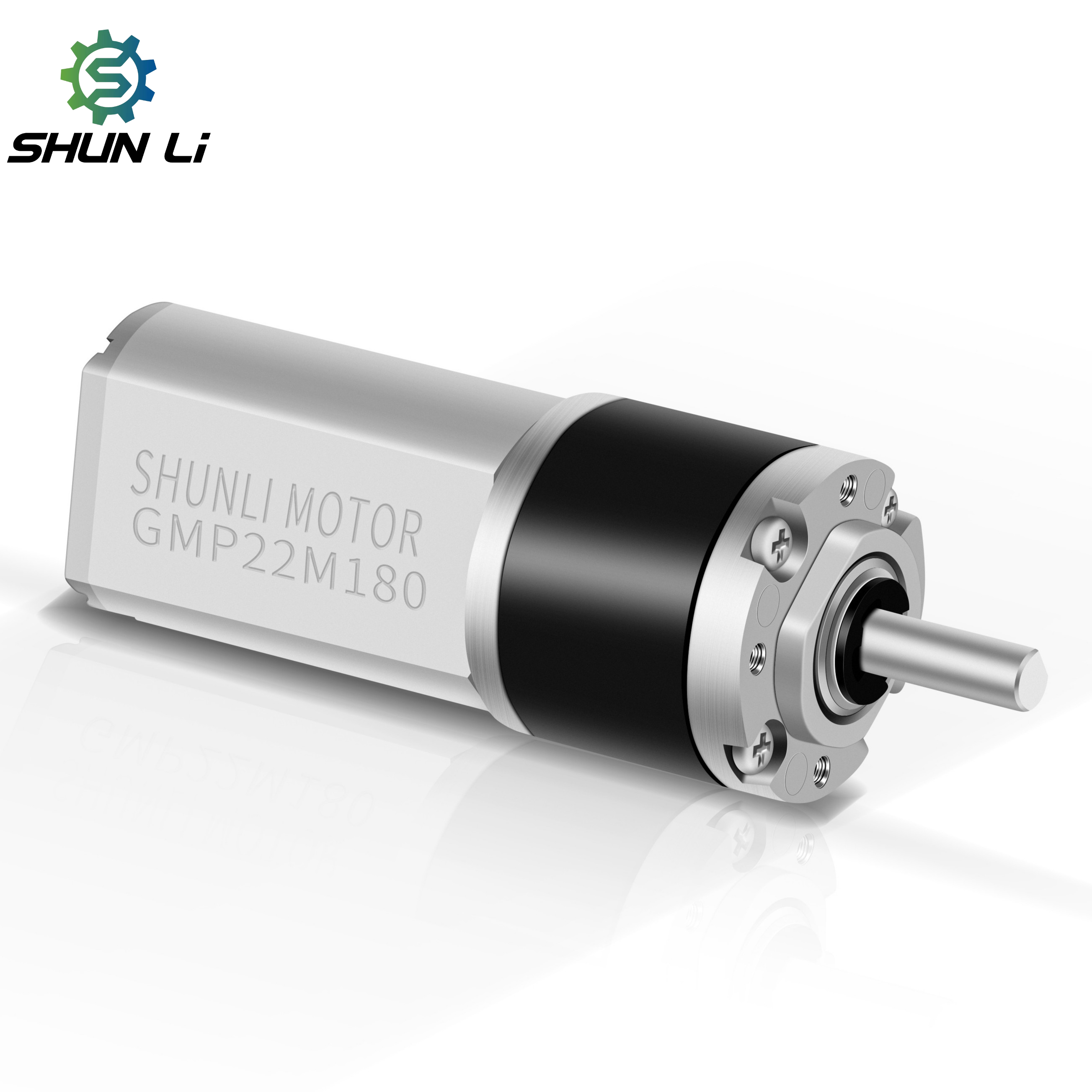

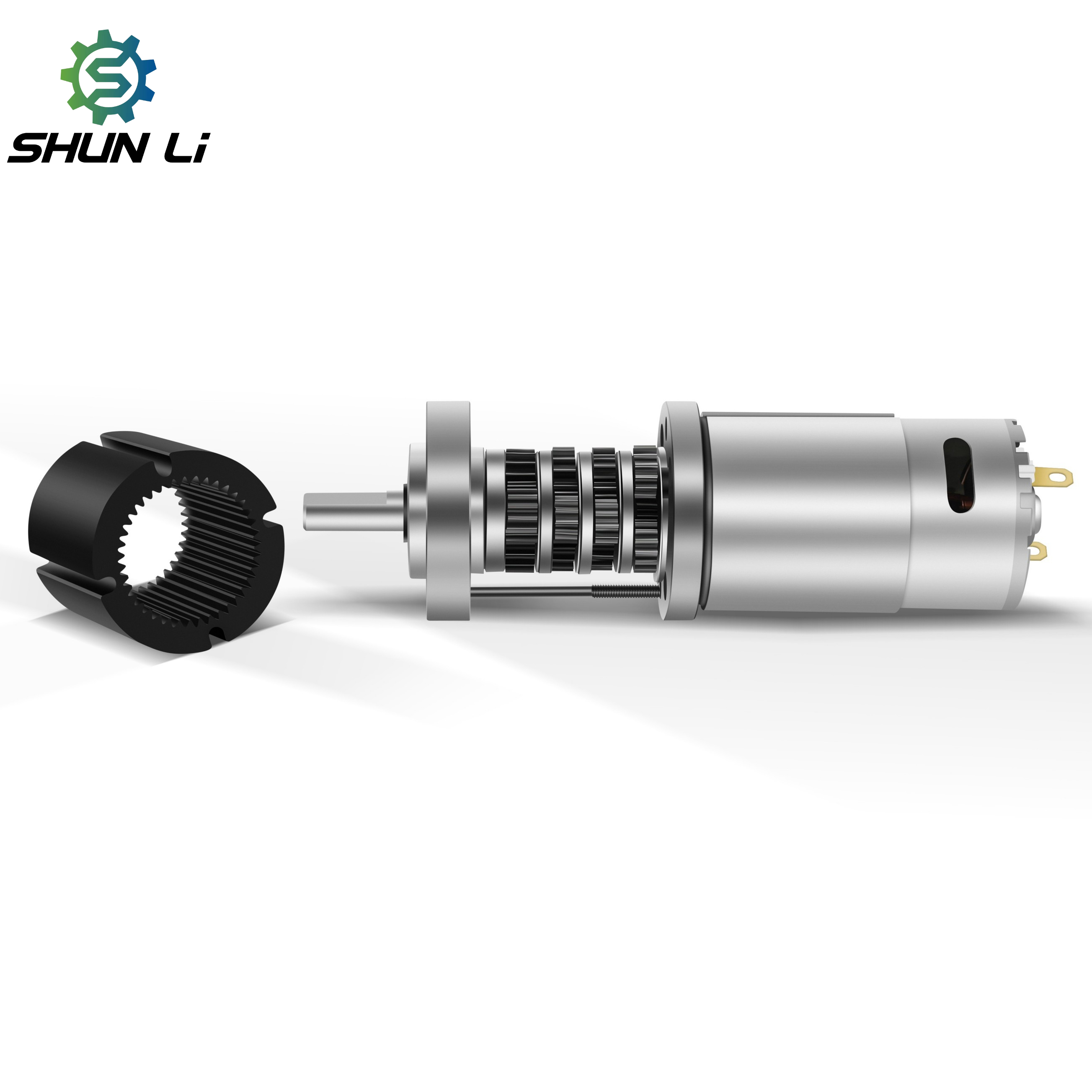

Motor Detail 1 Motor Detail 2 Motor Detail 3 Motor Detail 4 Motor Detail 5 Motor Detail 6
FREQUENTLY ASKED QUESTIONS
Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for new customers?
We can draw up an Assurance Order online, which supports payment via Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, etc. If you require other specific certificates, we can apply for them for you.
How is your Quality Control handled?
We have professional checking staff on every production line process. After finishing, we use testing machines such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise testers.
What testing equipment do you use for quality assurance?
Our quality control process includes a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester to ensure full motor reliability.
