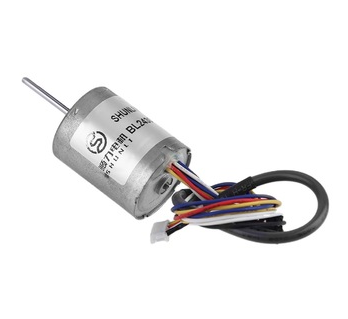

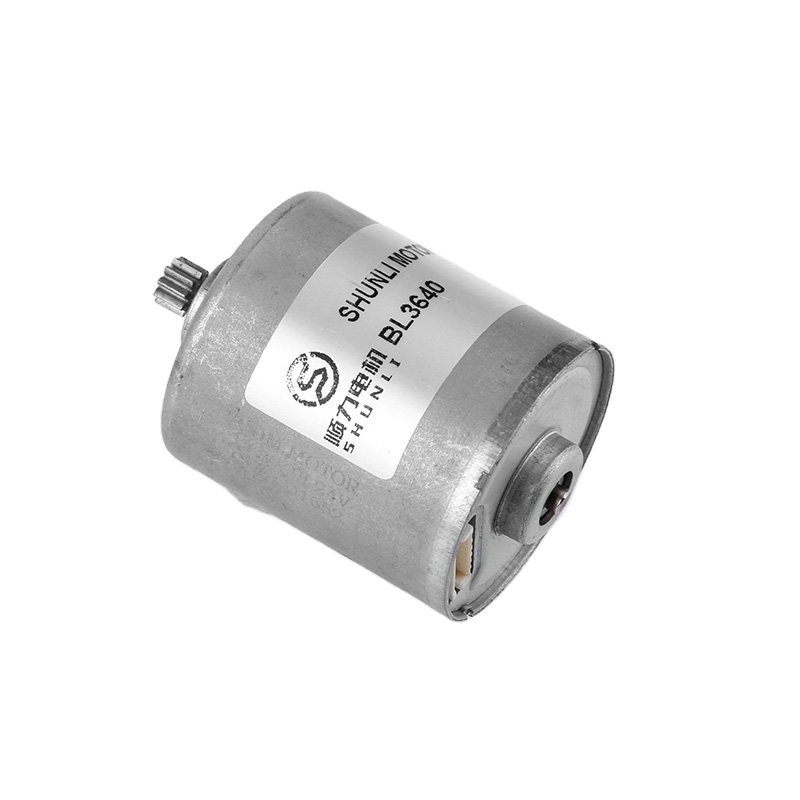

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
1 / 5
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan

Send Inquiry

Product Description

Brushless DC Motor High Speed Product Divider

12V 18V 24V High Speed Brushless DC Motor for Fan

Product Details

This high-performance 36 mm Brushless DC motor is designed for high-speed fan applications, capable of reaching speeds from 20,000 RPM up to 40,000 RPM. It offers consistent torque performance ranging from 100 G.CM to 150 G.CM, ensuring efficient airflow and cooling capabilities.

Customized Specification

Motor Customized Specification is available upon request.

Reference Technical Specification

BLDC MOTOR Terminations

PIN NO. PIN Arrangement
1 VCC
2 FG
3 CW/CCW
4 GND
5 PWM
Reference Datasheet
Motor Datasheet
Product Showcase

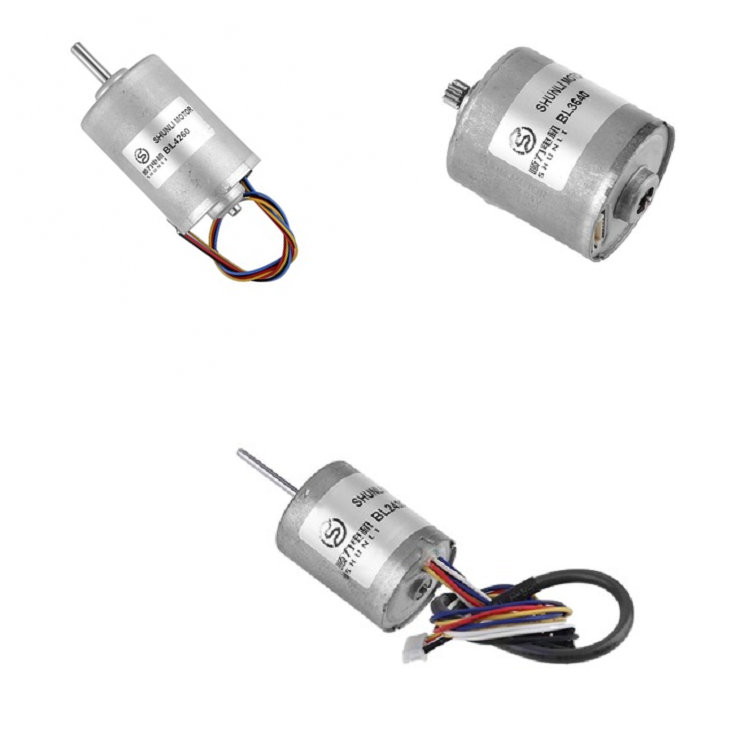

BLDC Motor View 1 BLDC Motor View 2 BLDC Motor View 3 BLDC Motor View 4 BLDC Motor View 5 BLDC Motor View 6 BLDC Motor View 7

Frequently Asked Questions

What is the maximum speed of this brushless DC motor?
This motor is designed for high-speed operation, reaching up to 40,000 RPM depending on the model and voltage configuration.
What voltage options are available for this 36mm motor?
The motor supports multiple DC voltage inputs, specifically 12V, 18V, and 24V.
Does the motor support speed control?
Yes, it features a PWM (Pulse Width Modulation) pin for precise speed control and an FG (Frequency Generator) pin for speed feedback.
Can I change the direction of rotation?
Yes, the motor includes a CW/CCW termination allowing you to switch between clockwise and counter-clockwise rotation.
Are the technical specifications customizable?
Yes, the motor specifications such as speed, torque, and dimensions can be customized to meet specific application requirements.
What are the typical applications for this high-speed motor?
Due to its high RPM and compact 36mm size, it is ideal for high-performance cooling fans, blowers, and air purification systems.
