36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
1 / 4
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint
36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint

36mm High Torque 3N.m 1N.m 12v 24v Bldc Brushless Dc Customized Planetary Gear Motor for Robot Joint

Send Inquiry

Product Description

Motor Product Overview
✓ Product Specifications
GMP36MBL3626 Motor
Product Model GMP36MBL3626/3640/3650
Reduction Ratio 1:139 / 1:27 / 1:264
Speed 18.5RPM - 185RPM
Voltage 24V
Torque 0.45N.m ~ 3N.m
Support Customization Transmission Dimensions and Motor Parameters Can Be Customized
⚙ Technical Dimensions

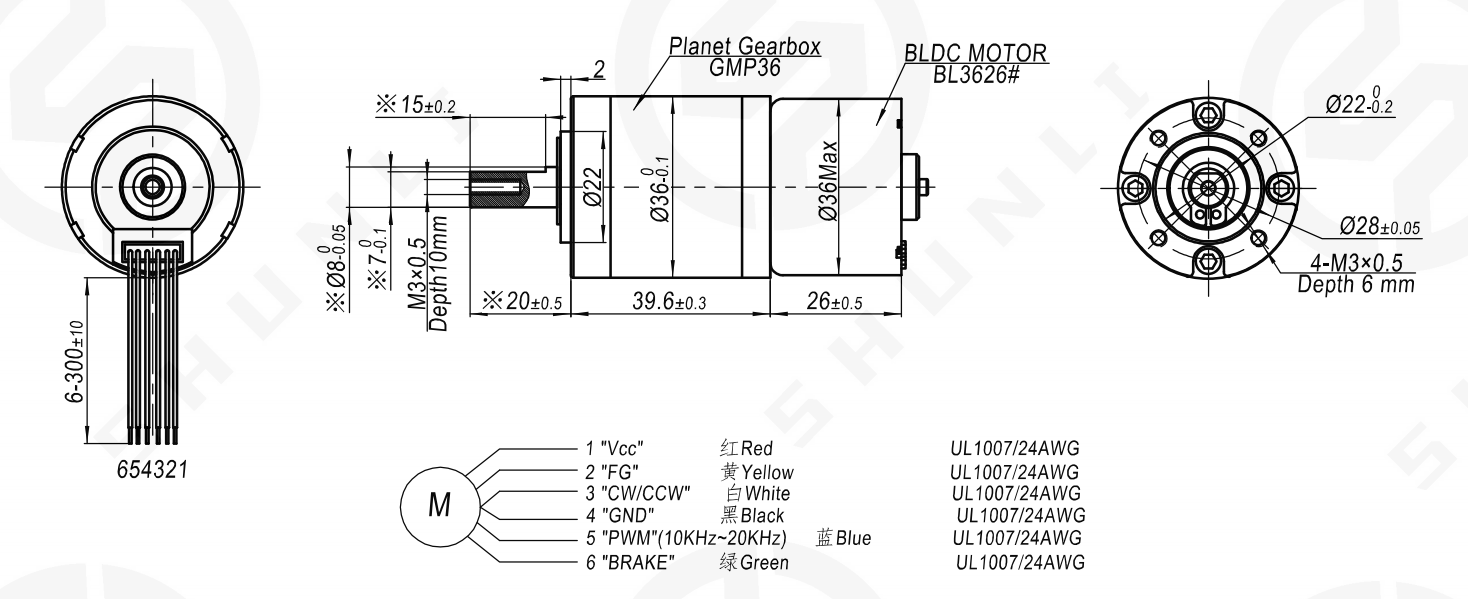

Motor Technical Drawing
📷 Product Display
Product detail 1 Product detail 2 Product detail 3 Product detail 4 Product detail 5 Product detail 6
? Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
Can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements, including dimensions and parameters.
What is the payment term for new customers?
We accept various payment methods including Online Assurance Orders (Master Card, Visa, etc.), PayPal, and T/T.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for specific certificates upon request.
How do you ensure quality control?
We have professional checking staff on every production line. Finished products undergo rigorous testing with Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical lead time for orders?
Lead times vary depending on the order quantity and customization requirements. Please contact our sales team for a specific timeline based on your needs.
