13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
1 / 5
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

Send Inquiry

Product Description

Product Banner

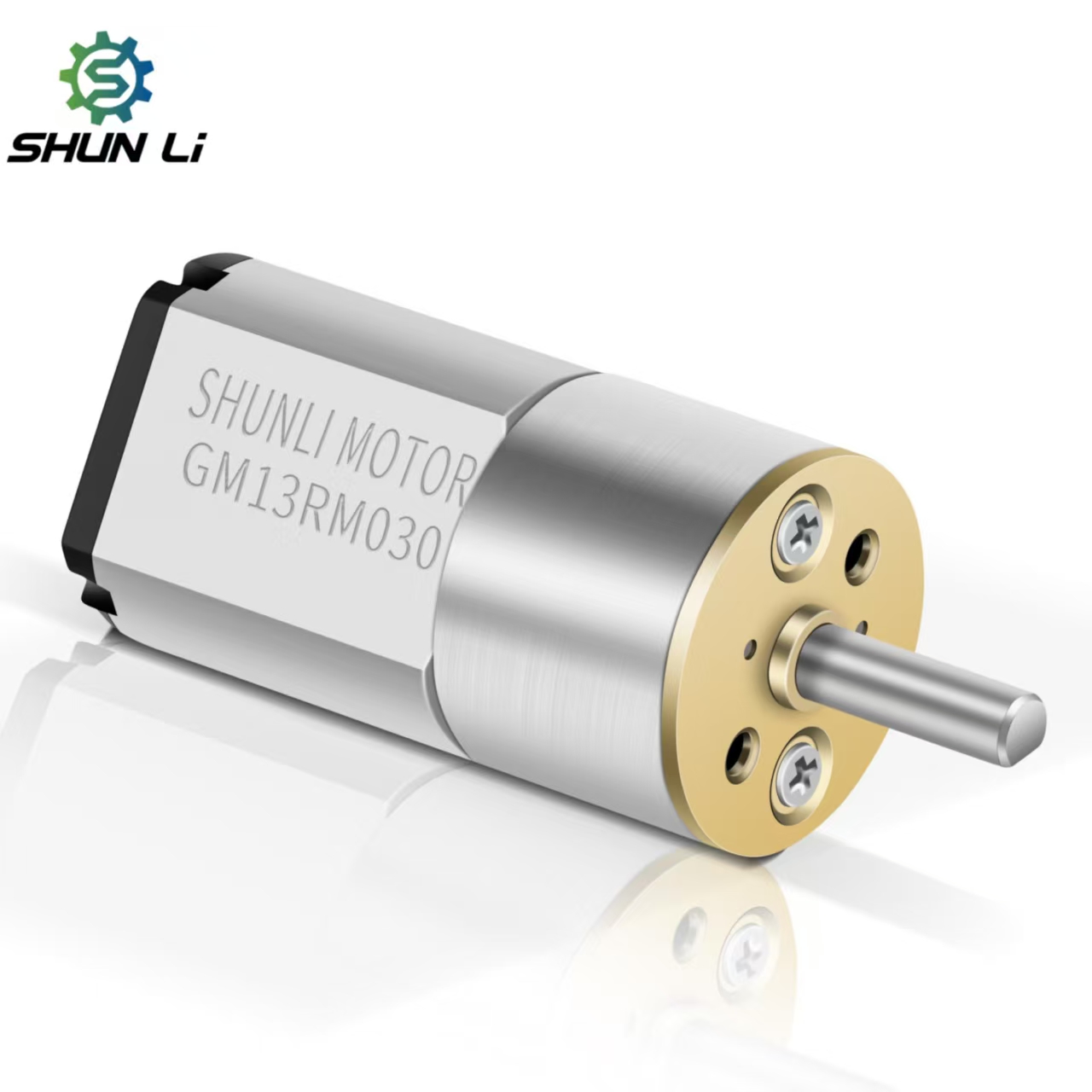

Product Model Image
Product Model GM13RM030/050
Gearbox Length 21±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m/60mN.m
Customization Dimensions and parameters can be customized
⚙️
Professional Micro DC Motor Solutions
Specialized in high-precision gear motors with customizable parameters to meet specific industrial requirements.

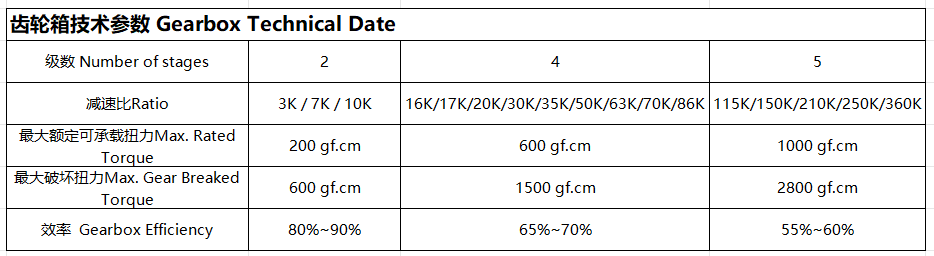

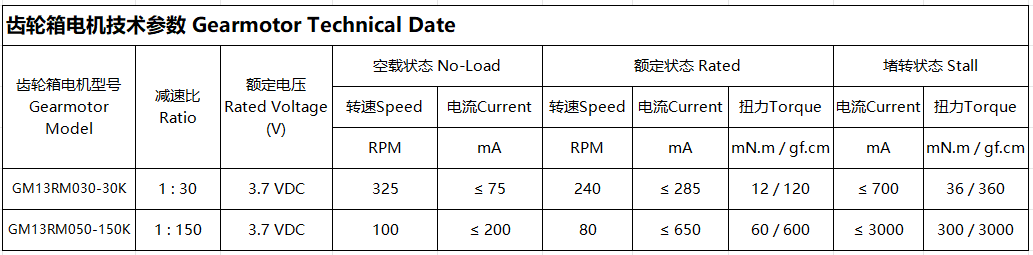

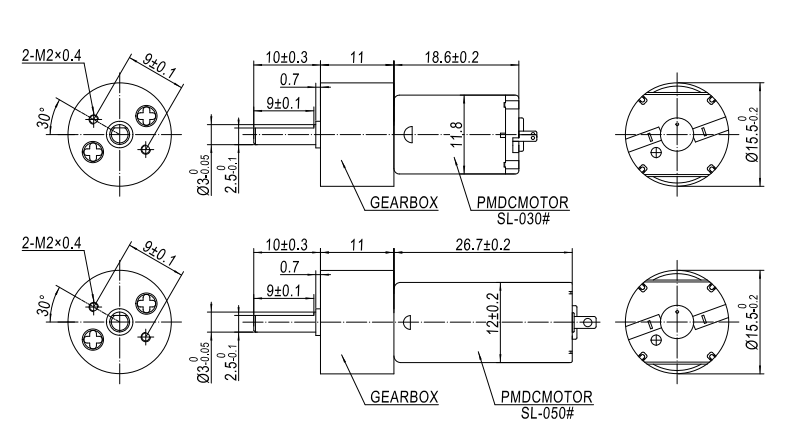

Technical Drawing 1 Technical Drawing 2 Technical Drawing 3

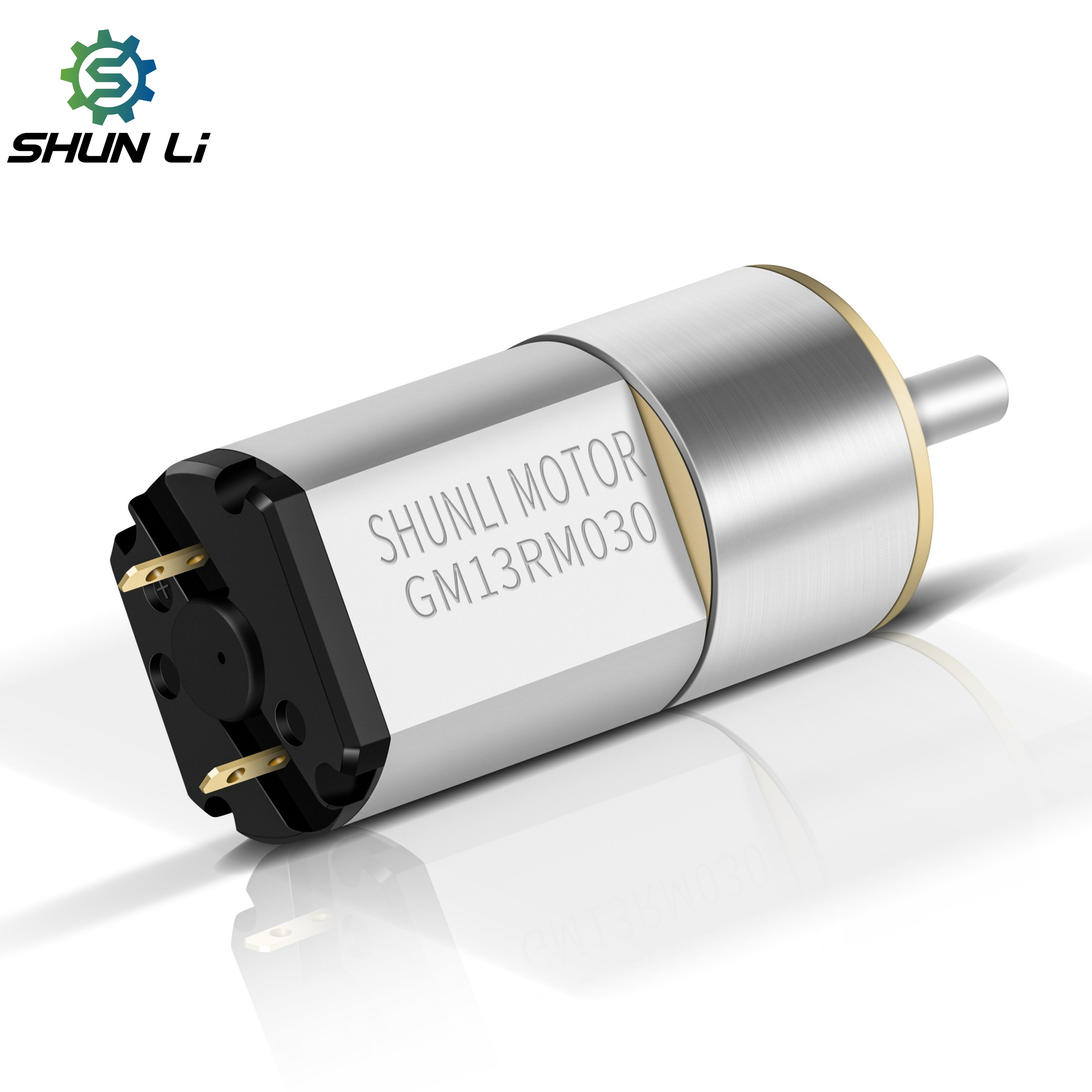

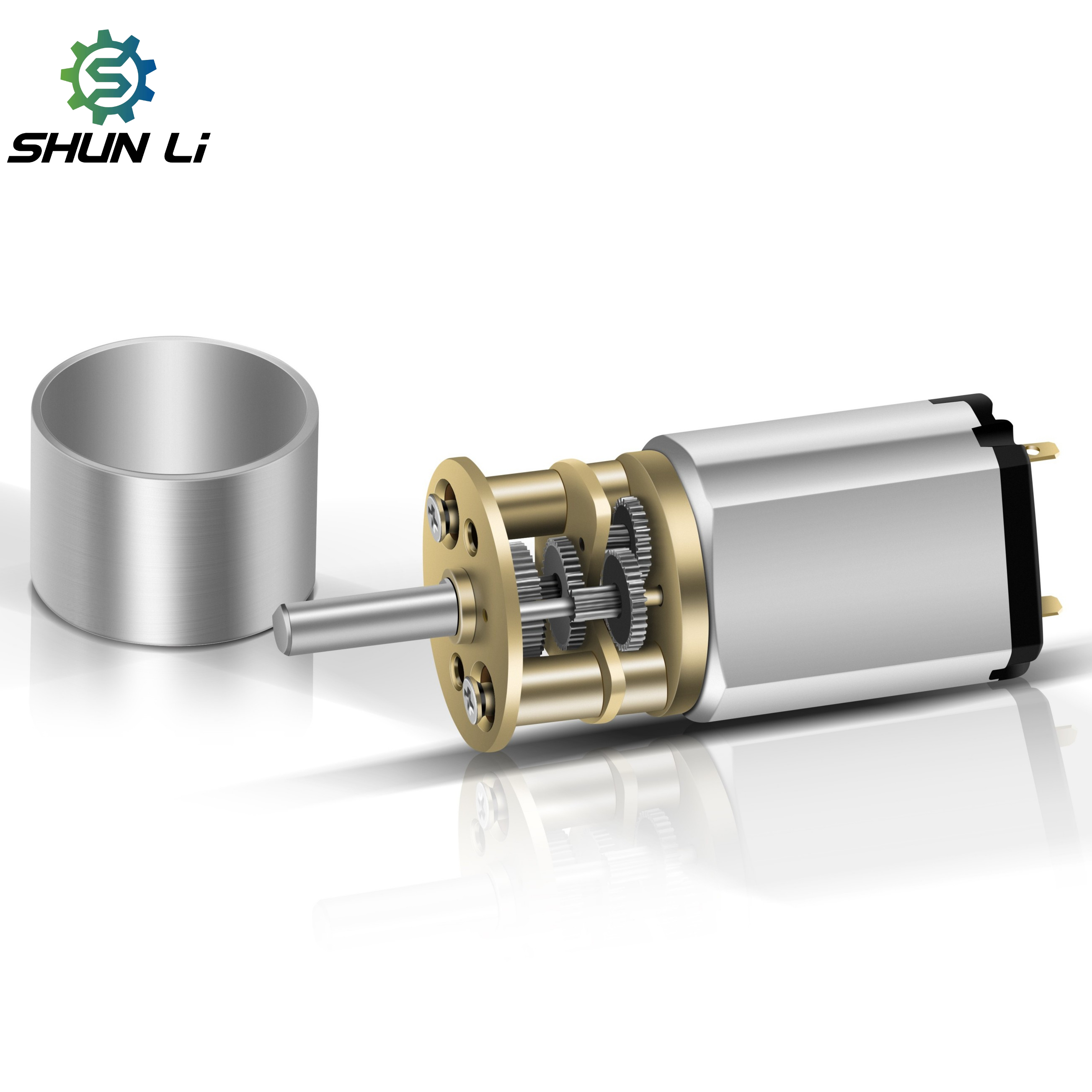

Product Detail 1 Product Detail 2 Product Detail 3 Product Detail 4 Product Detail 5 Product Detail 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
Can you customize a motor for me if I can't find a suitable one?
Yes, we can customize a suitable motor including transmission dimensions and parameters according to our customer's specific requirements.
What kind of quality control do you have in place?
We have professional checking staff on every production line. After finishing the motor, we use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
Do your motors have official certifications?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certificates if required.
What are the standard payment terms?
We accept various payment methods including Online Assurance Orders, Credit Cards (Visa/MasterCard), PayPal, and T/T (Bank Transfer).
What is the typical application for these micro gear motors?
These micro motors are designed for precision applications requiring high torque and stable speeds in compact spaces, such as electronic locks, robotics, and medical devices.
