SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

1 / 4

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

SRS-555 12v 24v micro dc motor for water pump

Motor Customized Specification, Please contact us.

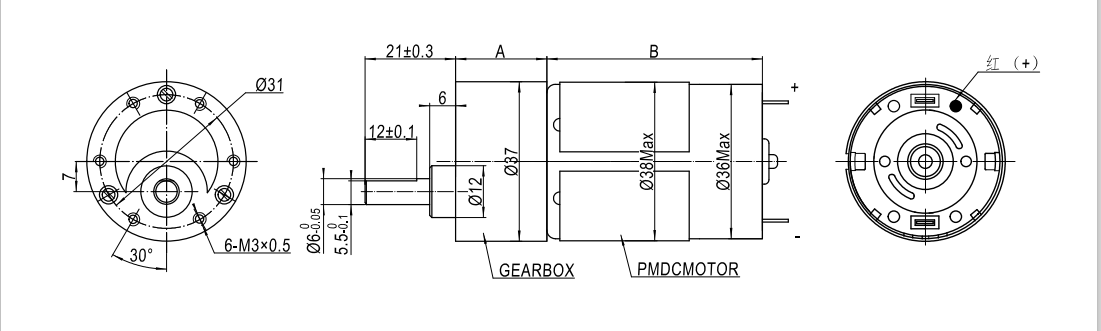

Reference Drawing

▶RS - 545 A

▶RS - 555 A

▶RS - 575 A

The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

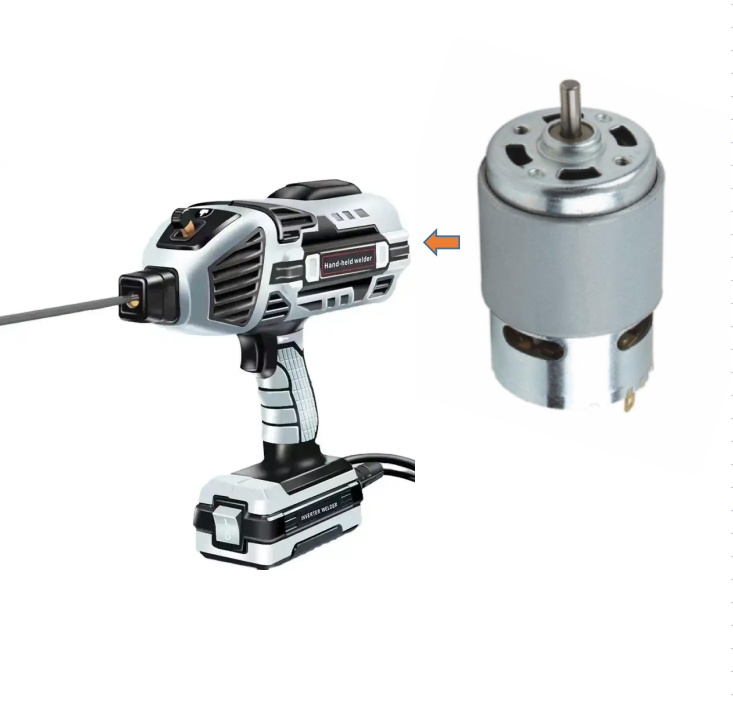

Application

Certifications

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with over 14 years of experience.

What are the payment terms for new customers?

We support various payment methods including online Assurance Orders (MasterCard, Visa), PayPal, and TT.

Can you customize a motor if I can't find a suitable one?

Yes, we provide full customization services to design a motor that meets your specific technical requirements.

Do your motors have official certifications?

Yes, our motors are certified with CE, FCC, ISO, and others. We can apply for additional certificates if required.

How do you ensure product quality?

We have professional inspectors on every production line and use advanced equipment such as Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers for final testing.

What kind of testing equipment do you use for quality control?

Our facility is equipped with Life Testers, Temperature Test Machines, Noise Testers, and other precision instruments to guarantee motor performance.
