⭐ Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

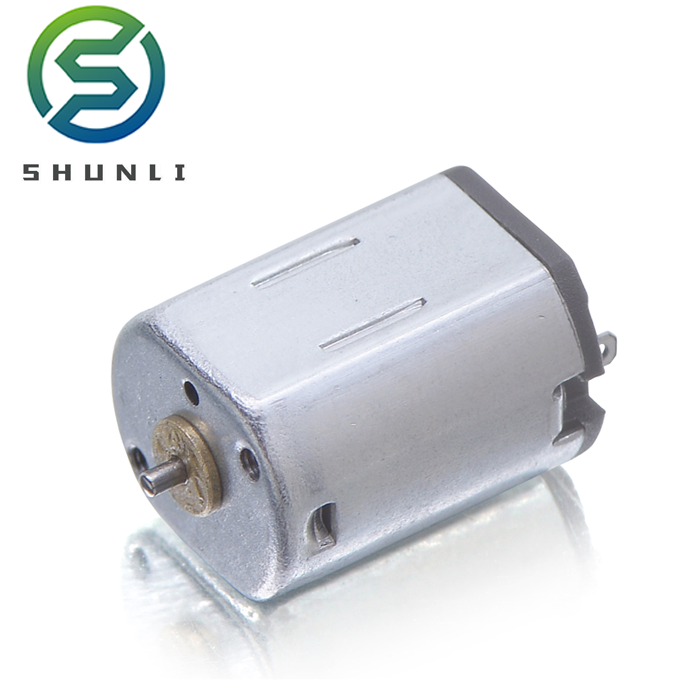

| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m | W | mA | mN.m | ||||
| FF-N20VA-05240 | 3.0~12.0 | 12 VDC | 16100 | 15 | 12240 | 60 | 0.3 | 0.37 | 210 | 1.2 | |
| FF-N20VA-08260 | 2.0~5.0 | 5 VDC | 14600 | 30 | 11800 | 110 | 0.26 | 0.31 | 470 | 1.3 | |
| FF-N20TA-2818 | 0.8~1.5 | 12 VDC | 34000 | 70 | 31000 | 1140 | 0.2 | 0.64 | 6000 | 1.6 | |

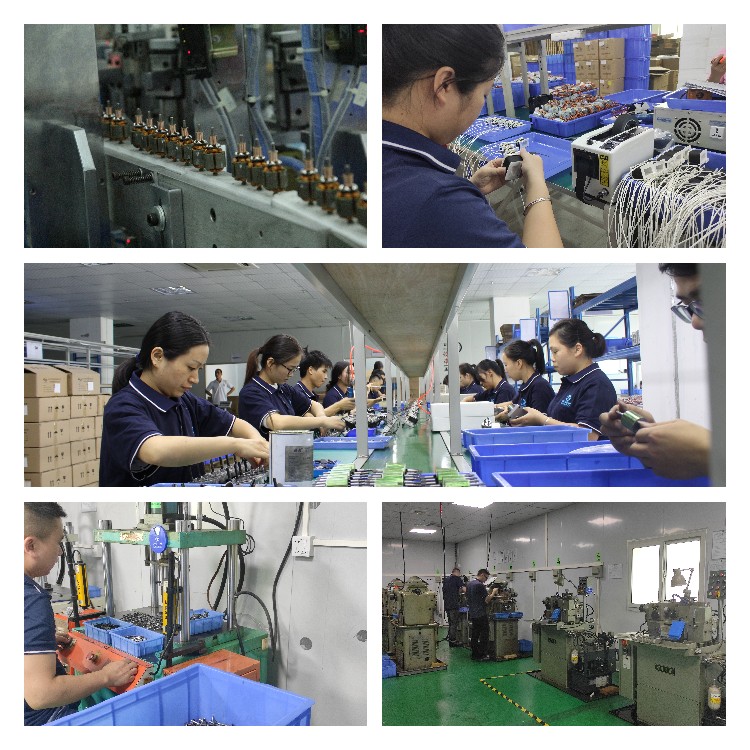

✔ Professional Manufacturing: We specialize in producing micro motors for more than 14 years. Our professional R&D team and mature management ensure a superior product experience.

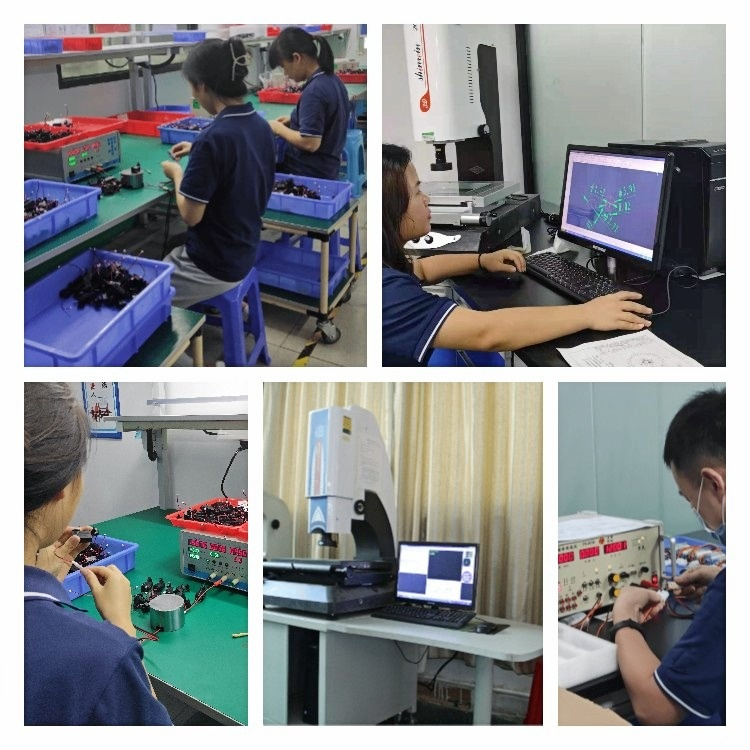

✔ Strict Quality Control: To guarantee excellence, every step—from raw material receipt to final shipment—is carefully checked. Quality is the foundation of our development.
