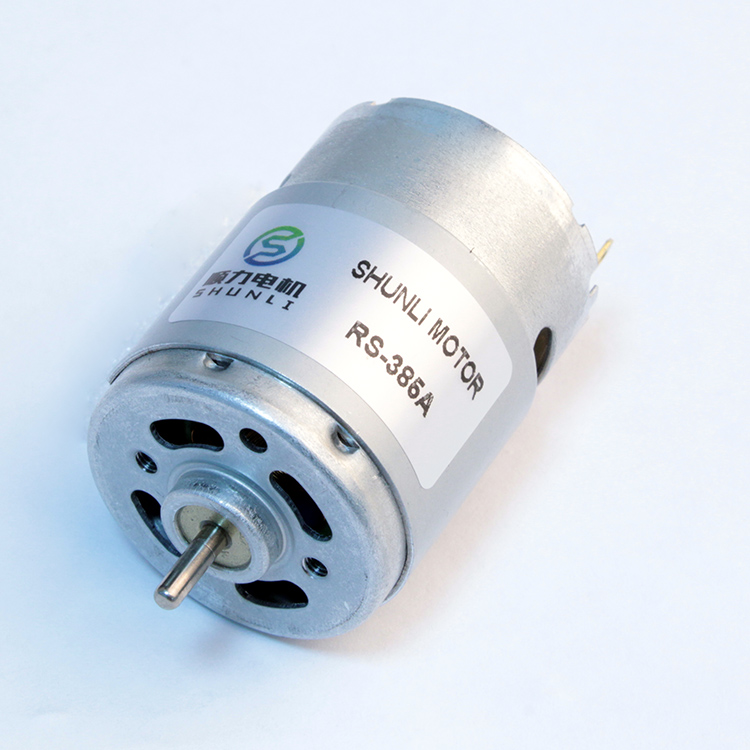

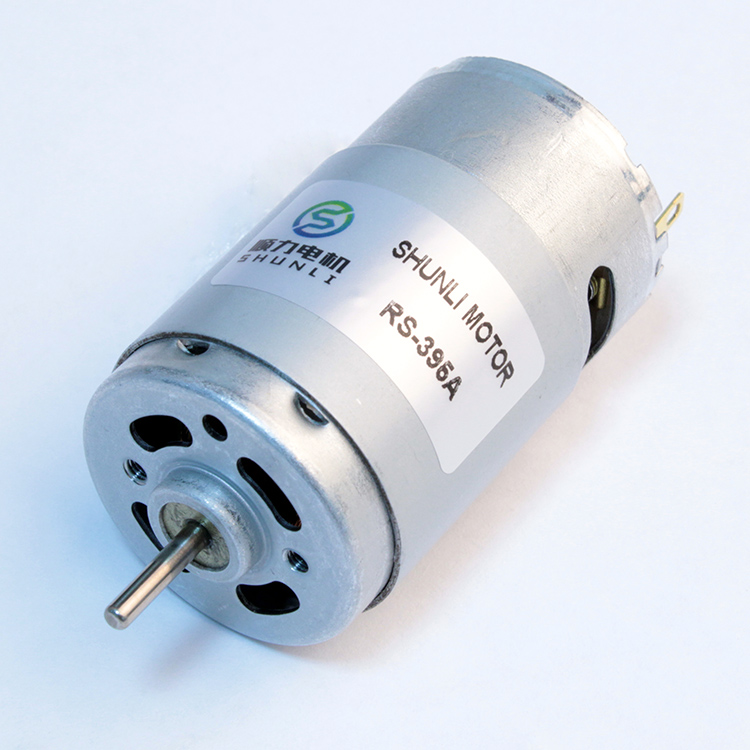

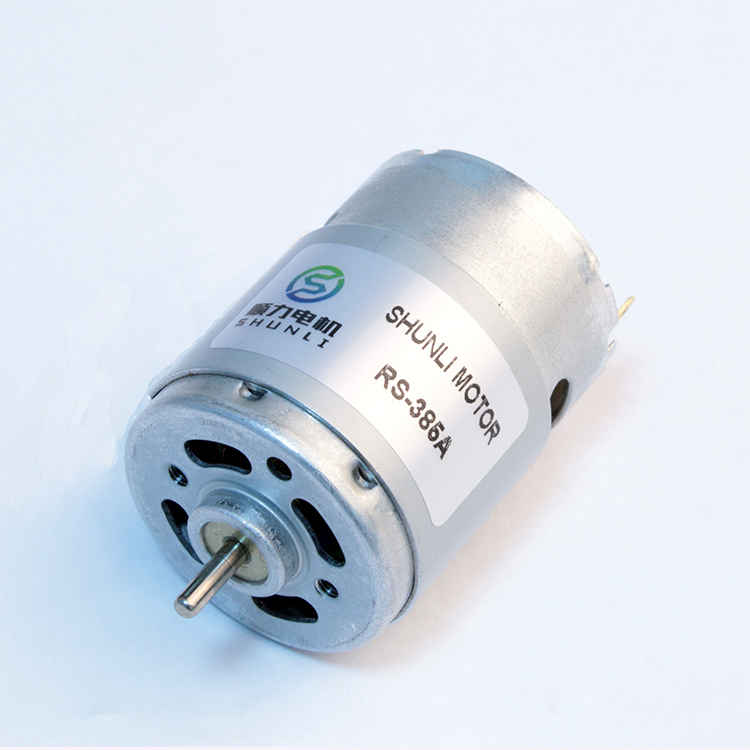

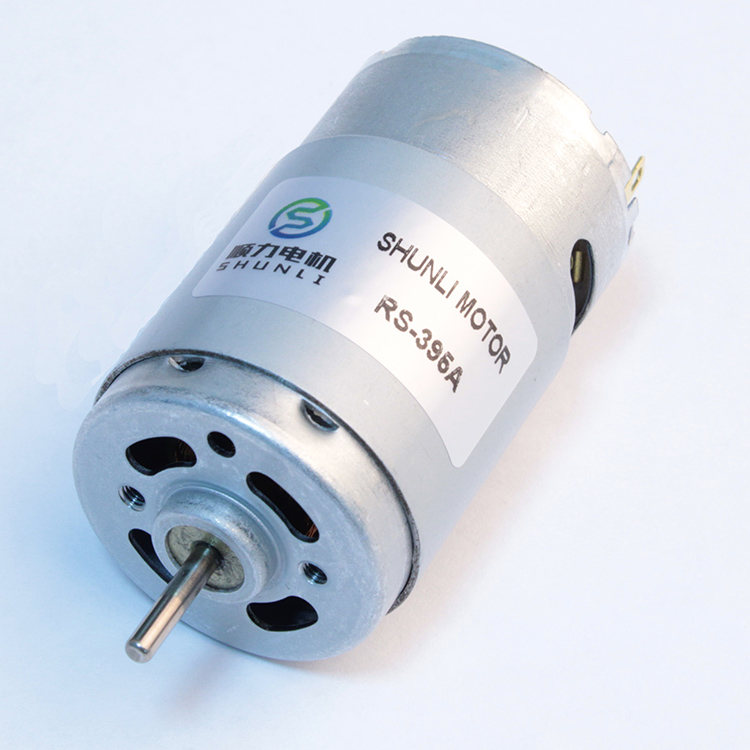

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
1 / 5
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Send Inquiry

Product Description

Micro DC Motor Banner Product Series
Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque

⚡ Product Details
Product Details Drawing
🛠️ Motor Customized Specification, Please contact us.
📐 Reference Drawing

------ RS - 365

RS-365 Reference Drawing

------ RS - 385

RS-385 Reference Drawing

------ RS - 395

RS-395 Reference Drawing
📏 The length of shaft can be customized, Please contact us.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m) Power (W) Current (A) Torque (mN.m)
RS-390SH 20156R 6.0~12.0 12VDC 5000 0.08 4243 0.33 6.07 2.72 2.22 42.2
2975 6.0~12.0 12VDC 12000 0.29 10165 0.33 5.75 1.31 8.9 80.4
RS-395SH 15130 6.0~12.0 12VDC 3650 0.66 2949 0.25 5.83 1.8 1.06 30.4
15100R 6.0~24.0 24VDC 10300 0.07 8893 0.38 7.09 6.68 2.66 54.9
Recommend Products
Recommendation Category
Motor Model 1
Motor Model 2
Motor Model 3
Motor Model 4
Motor Model 5
Motor Model 6
Motor Model 7
Contact Us

Looking forward to your feedback!

Contact Banner
Frequently Asked Questions
What is the operating voltage range for these micro motors?
The motors typically operate within a range of 6.0V to 24.0V DC, depending on the specific model and winding configuration.
Can the shaft length and motor specifications be customized?
Yes, the shaft length, performance parameters, and electrical specifications can be customized to meet your specific application requirements.
What are the main applications for the RS-380/385 series?
These motors are widely used in electric drills, garden tools, toy models, home appliances, and other high-speed, large-torque applications.
What is the maximum speed these motors can reach?
Depending on the model, no-load speeds can reach up to 13,000 RPM at their nominal voltage.
Do these motors provide stable performance for industrial use?
Yes, our micro PMDC motors are designed for high efficiency and durability, ensuring reliable performance in both consumer and light industrial tools.
How can I request a technical drawing for a specific motor?
Please refer to the "Reference Drawing" section above or contact our technical support team for detailed CAD files and specification sheets.
