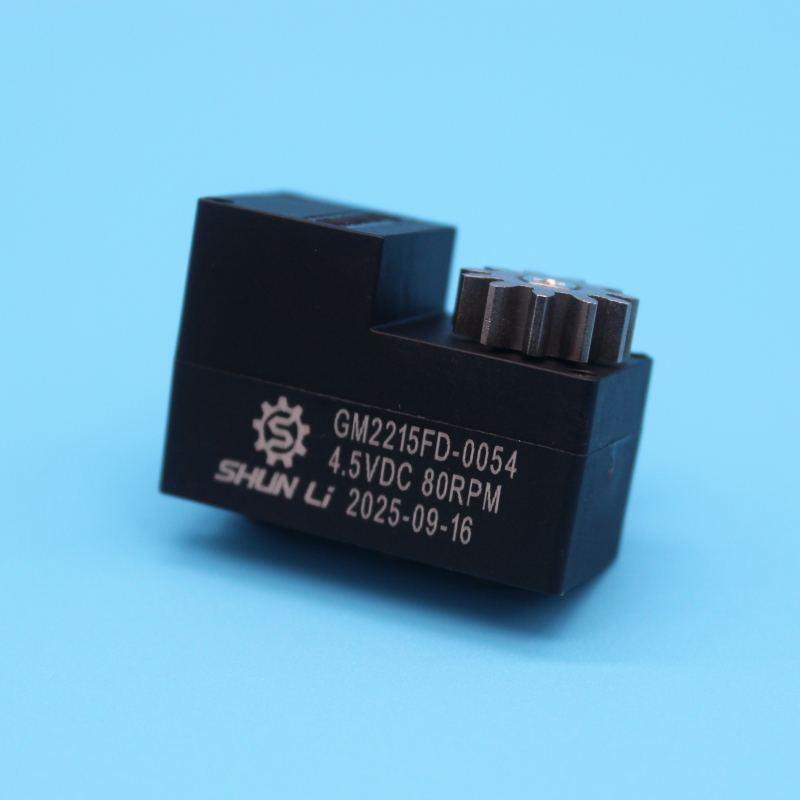

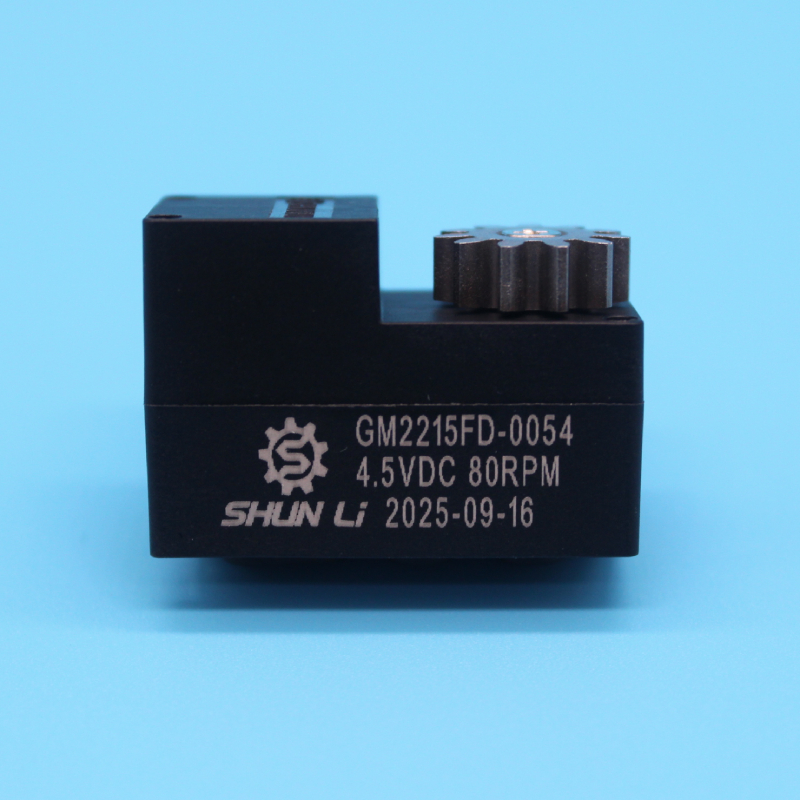

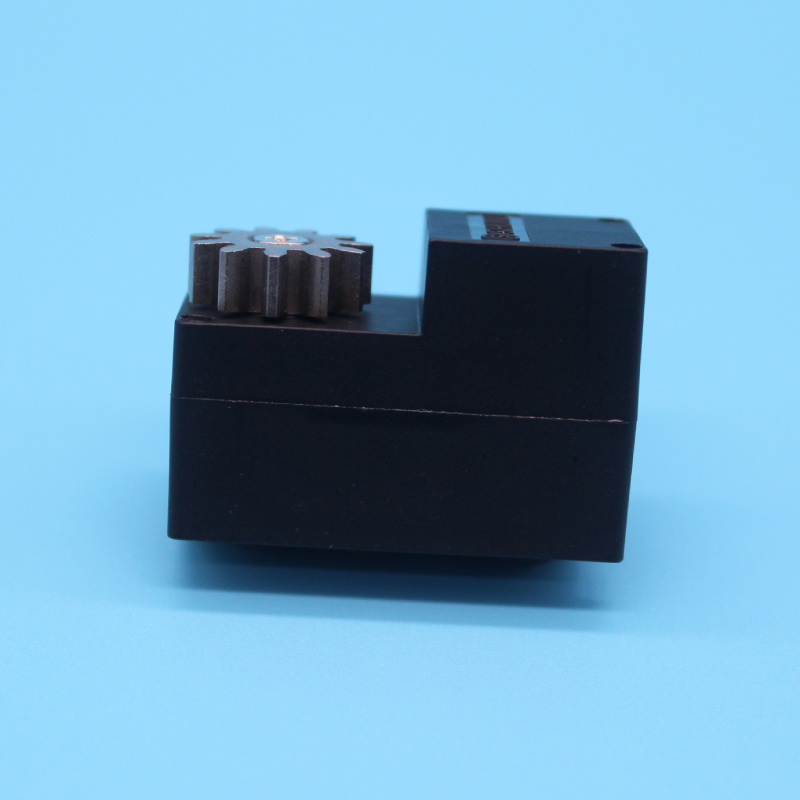

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor

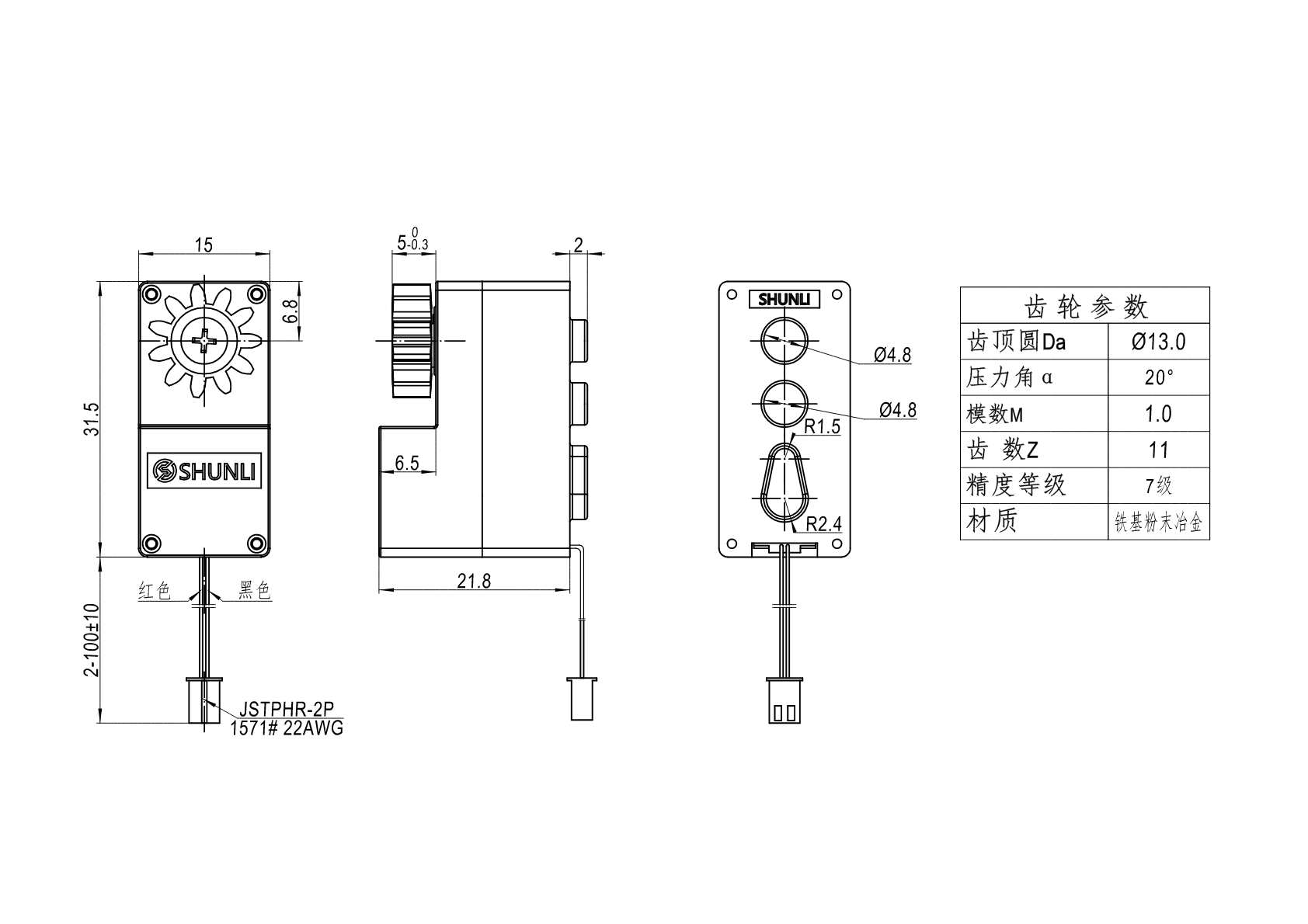

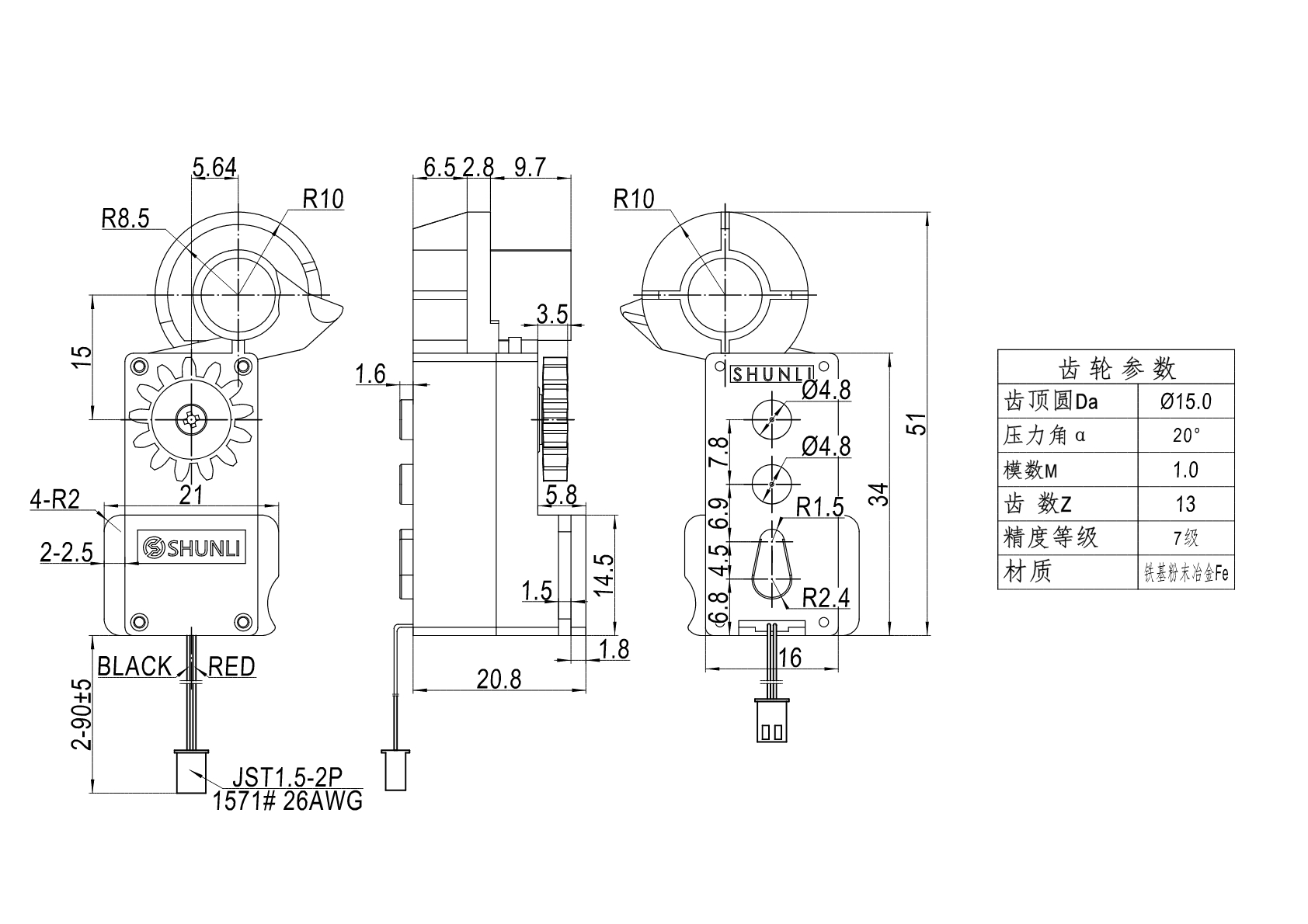

Reference Drawing
Model: GM2215 / GM2219
Gearbox Technical Data
Parameter
Specifications
Ratio
199K / 241K / 265K
Max. Rated Torque
1.5~2.5 Kgf.cm
Max. Gear Breaked Torque
4~5 Kgf.cm
Gearbox Efficiency
45%~60%
Gearmotor Technical Data
Model
Ratio
Voltage
No-Load
Rated
Stall
Speed(RPM)
Current(mA)
Speed(RPM)
Current(mA)
Torque(gf.cm)
Current(mA)
Torque(Kgf.cm)
GM2215FMN20-199K
1:199
4.5 VDC
52
≤ 50
40
≤ 120
180
≤ 350
1.8
GM2222FMN20-230K
1:230
4.5 VDC
58
≤ 78
49
≤ 135
240
≤ 450
2.0
GM2219FMN20-265K
1:241
4.5 VDC
58
≤ 65
50
≤ 130
240
≤ 680
2.0
GM2219FMN20-265K
1:265
4.5 VDC
62
≤ 75
51
≤ 140
350
≤ 750
2.2

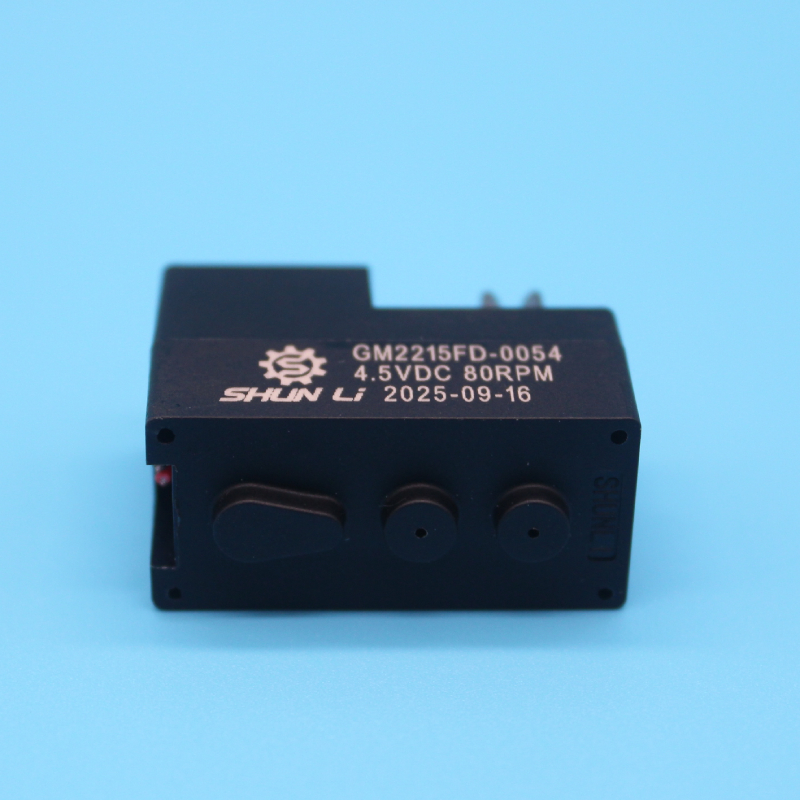

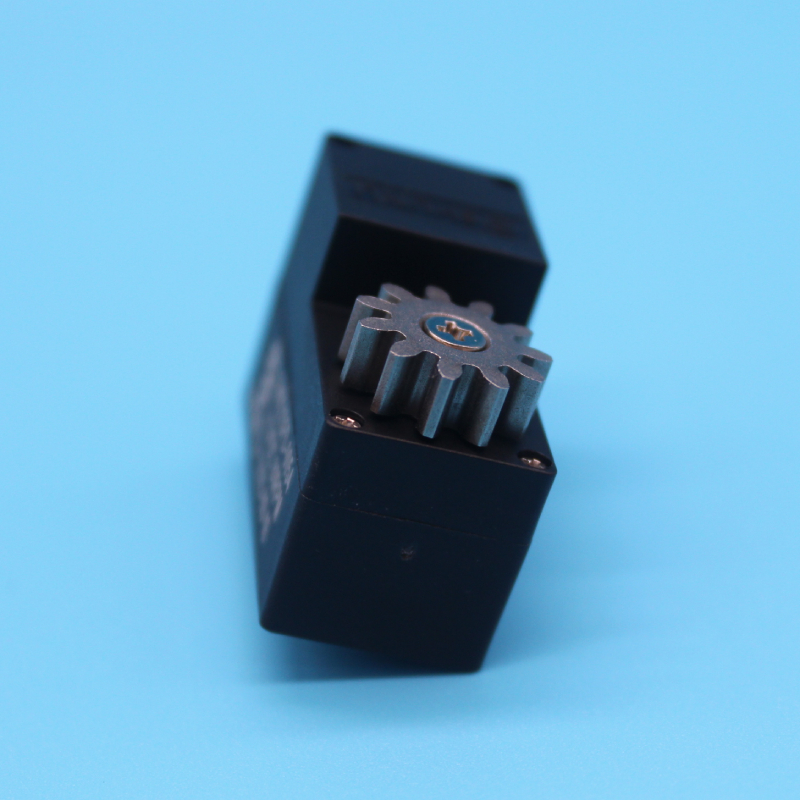

Product Showcase
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of experience.
What are the payment terms for new customers?
We accept online payments via Credit Card (Master Card, Visa), PayPal, or T/T transfers to ensure a secure transaction.
Can you customize motors if I can't find a suitable model?
Yes, we provide customization services to design and manufacture motors according to your specific technical requirements.
What certifications do your motors carry?
Our products are certified with CE, FCC, ISO, and other relevant standards. We can also apply for specific certificates upon request.
How do you ensure product quality?

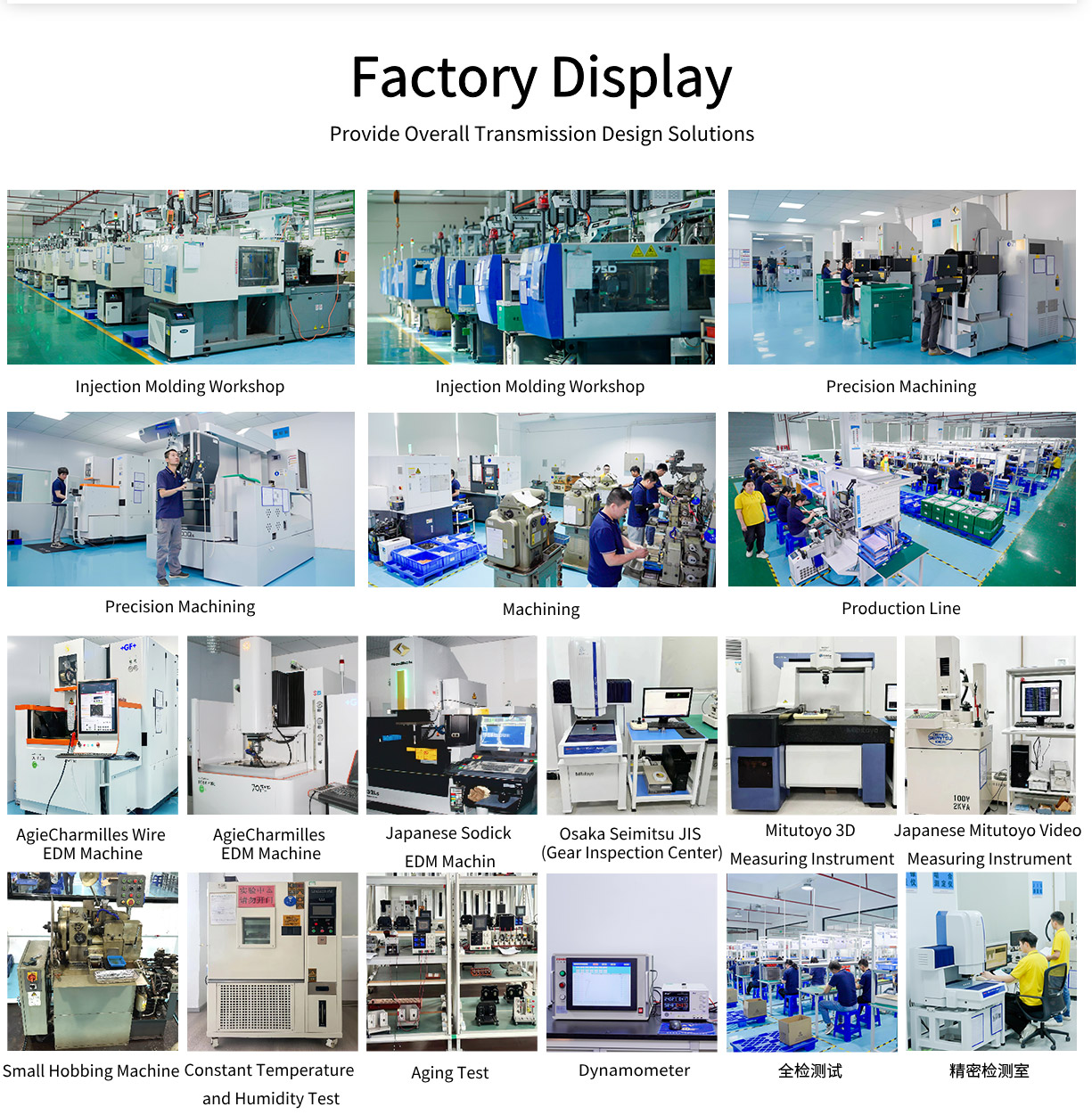

We employ professional inspection staff at every process. Our quality control lab uses advanced equipment such as Hardness Testers, Life Testers, Salt Spray Chambers, and Noise Testers.
Do you provide technical support for integration?
Yes, our engineering team can provide technical drawings and data sheets to help you integrate the motors into your smart lock or automation systems.
