Product Description

Product Banner
⚙️ Product Description
Customized 12mm micro DC gear motor: Non-captive stepper motor, miniature 5V stepper motor designed for medical equipment and high-precision applications.

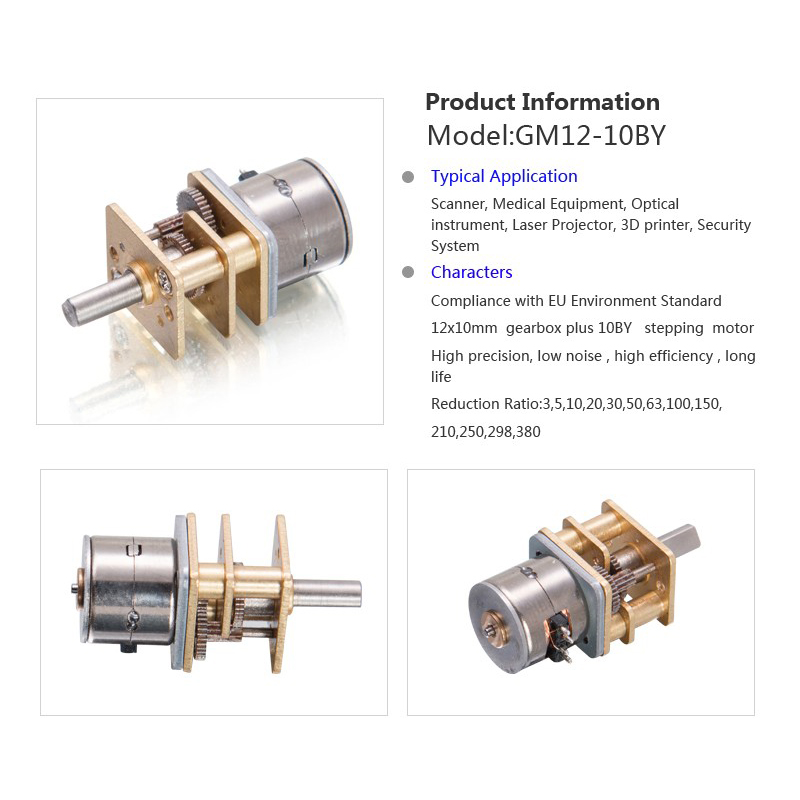

Micro Motor Overview

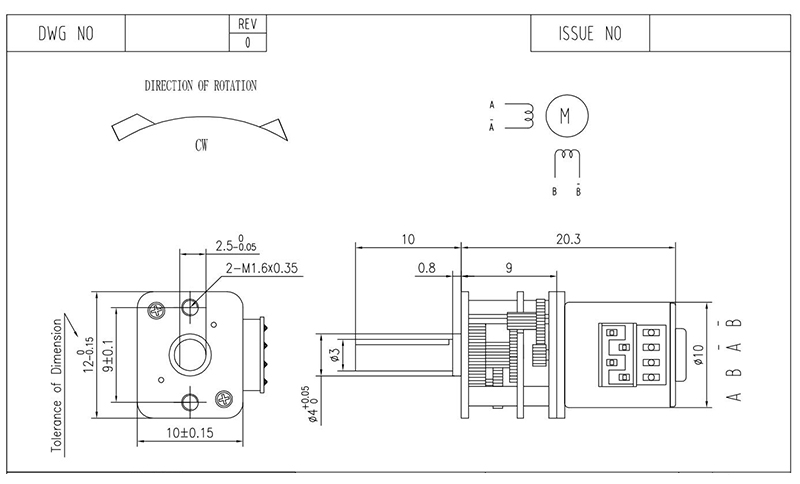

📐 Reference Drawing

Reference Model: GM12-10BY

GM12-10BY Drawing
📊 Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L"(mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
⚡ Gearmotor Performance Data
Gearmotor Model Ratio Rated Voltage No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (Kgf.cm) Current (mA) Torque (Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.95 ≤ 1700 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 3.2 ≤ 3900 12.5

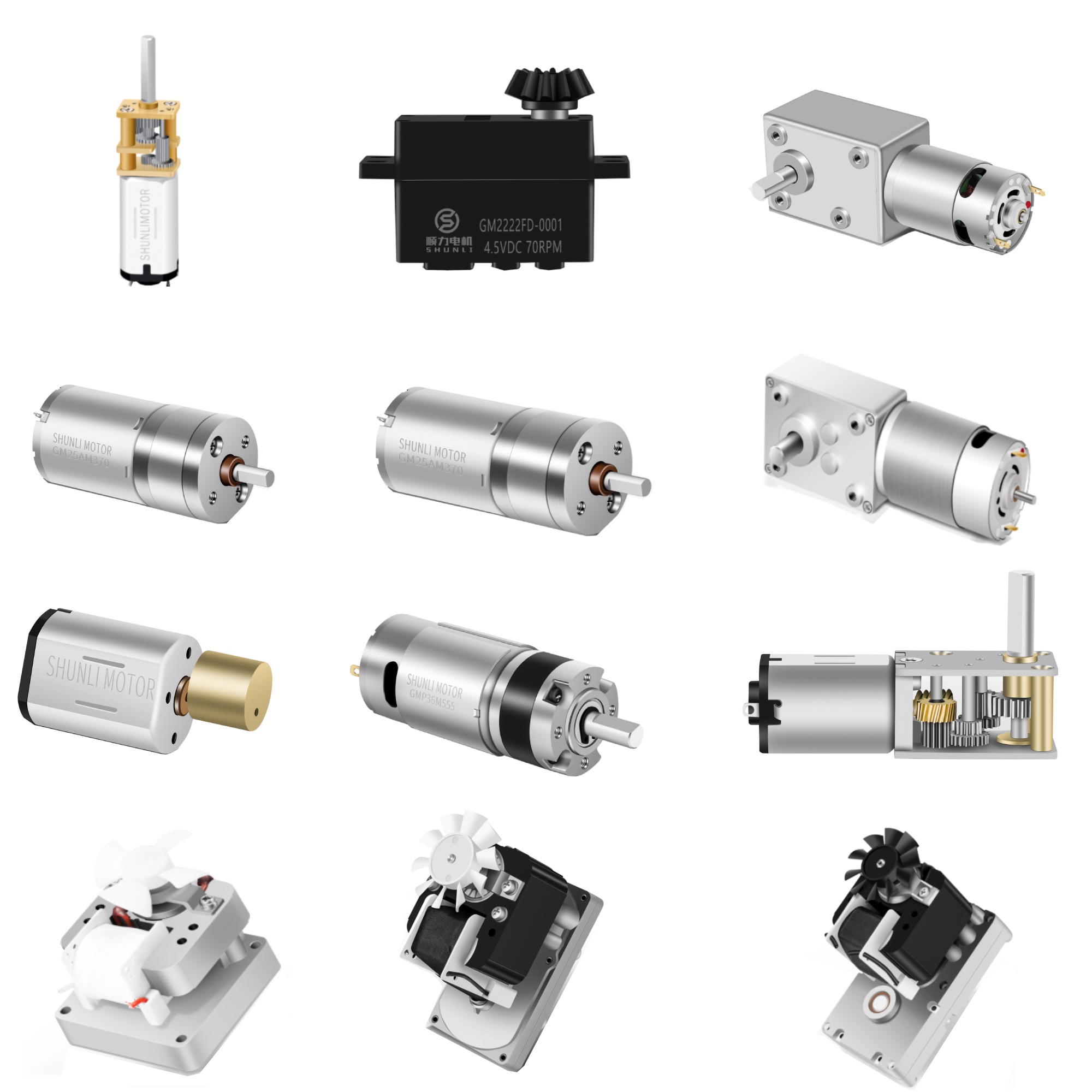

🔍 Product Range & Details
Motor Selection 1 Motor Selection 2
📜 Certifications & Quality
Certifications Customer Evaluation

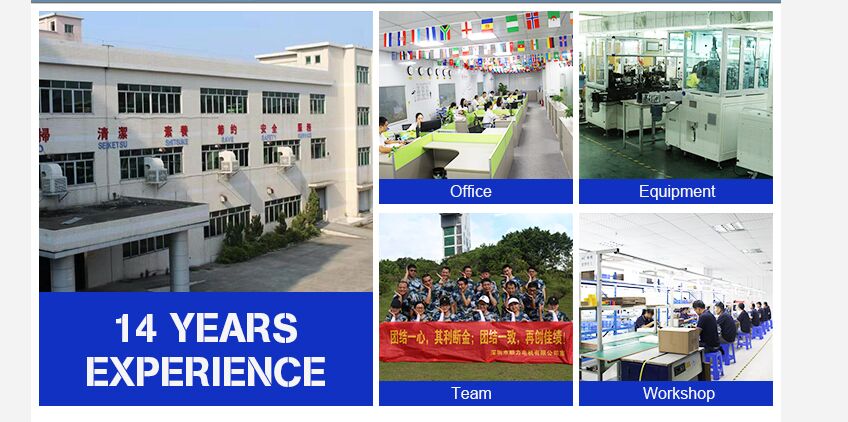

🏭 Factory Overview
Factory View 1 Factory View 2 Factory View 3
❓ Frequently Asked Questions
1. Are you a trading company or a manufacturer? We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of experience.
2. What are the payment terms for new customers? New customers can pay via online assurance orders (supporting credit cards), PayPal, or T/T wire transfers.
3. Can you customize a motor if I can't find a suitable one on the website? Yes, we provide full customization services to meet specific performance and dimensional requirements.
4. What certifications do your motors have? Our products are compliant with CE, FCC, and ISO standards. We can apply for additional certifications if required.
5. How do you handle quality control? We employ professional inspection staff at every stage. Finished products undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
6. What is the typical application for these micro motors? They are widely used in medical equipment, smart home devices, automobiles, and high-end transmission structures.
