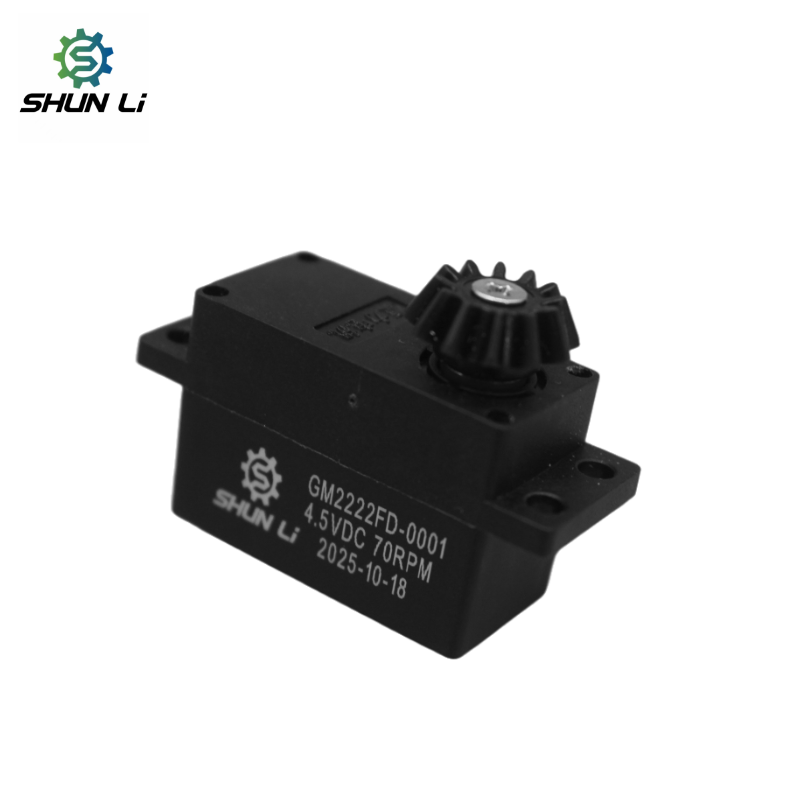

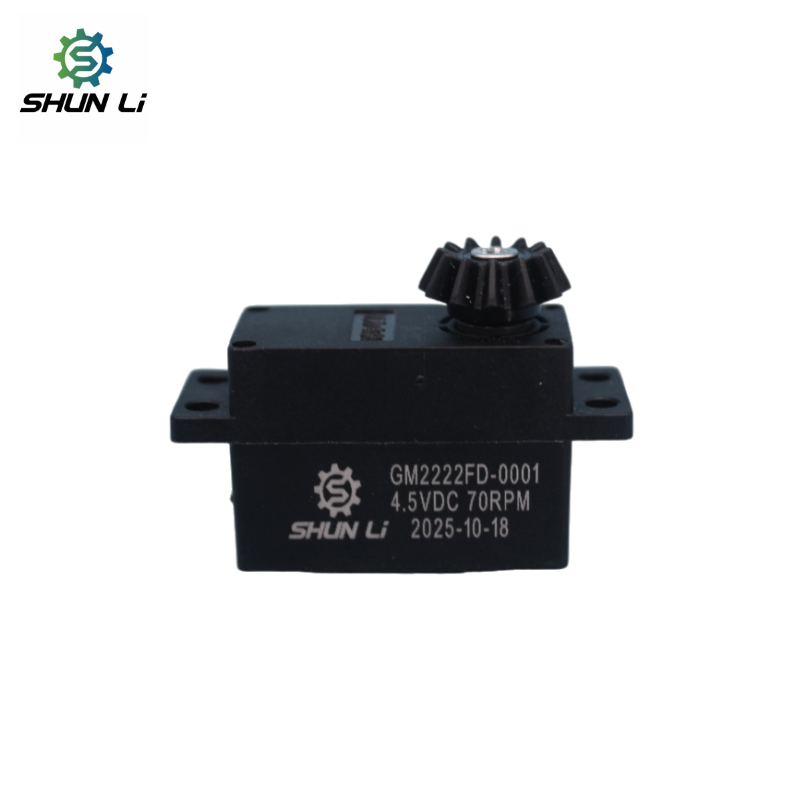

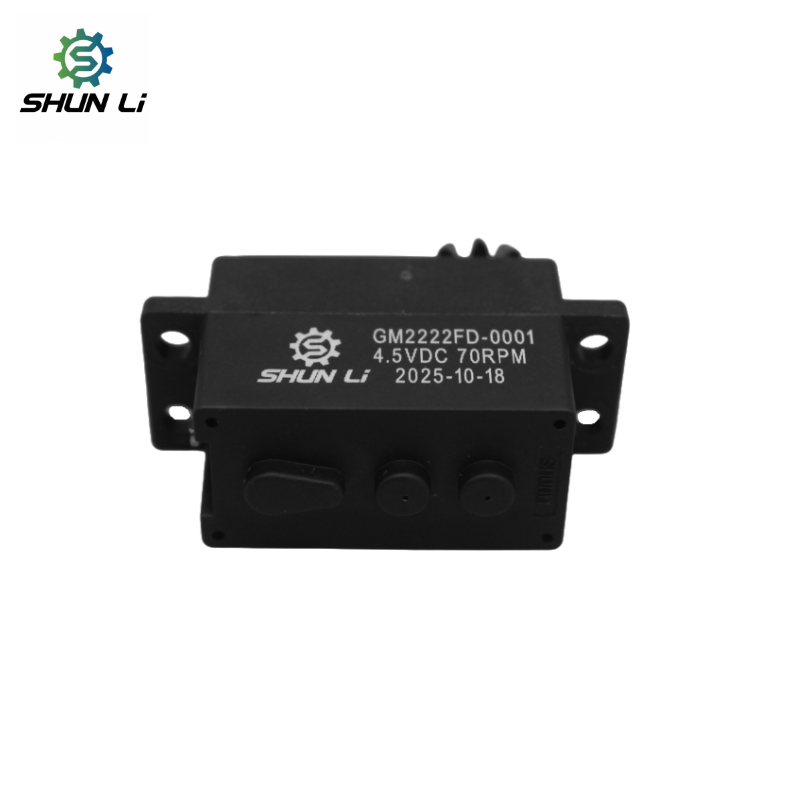

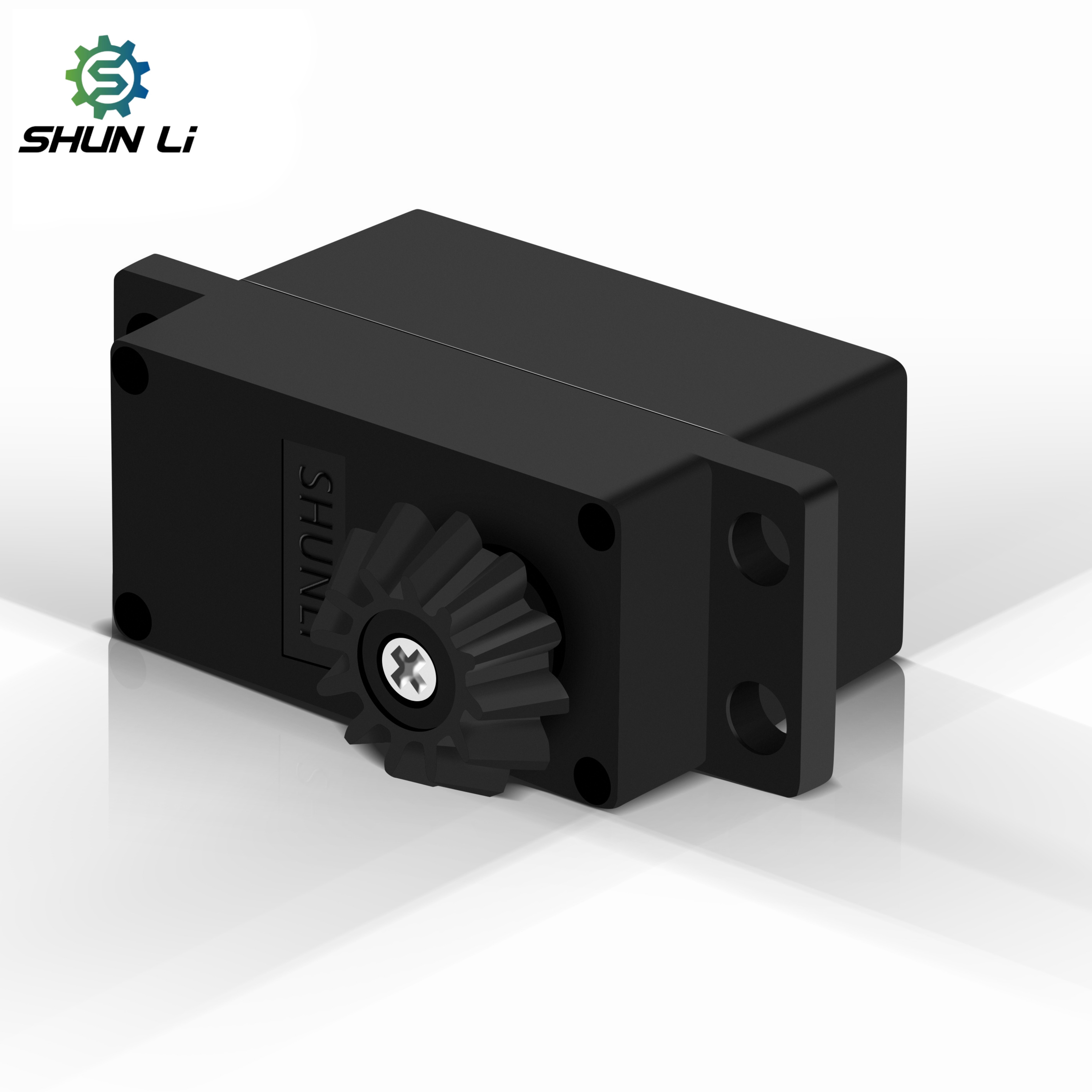

Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
1 / 4
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor
Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor

Shunli Custom 3v 6v Mini Small Dc Gear Motor 30Rpm 40Rpm 60Rpm Totally Enclosed Dirp Proof Smart Lock Motor

Send Inquiry

Product Description

Micro DC Gear Motor Overview

Product Specifications

Product Dimensions
Product Model GM2222FD-0001
Ratio 241K
Speed 42RPM-70RPM
Voltage 4.5V
Rated Torque 25 mN.m/30 mN.m
Support Customization Transmission dimensions and motor parameters can be customized

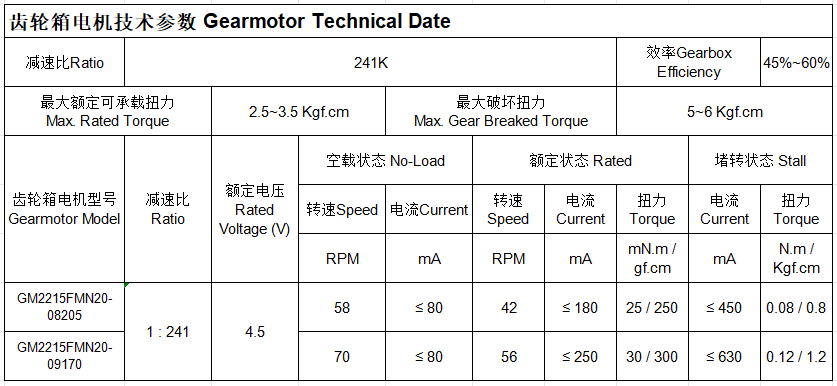

Technical Performance

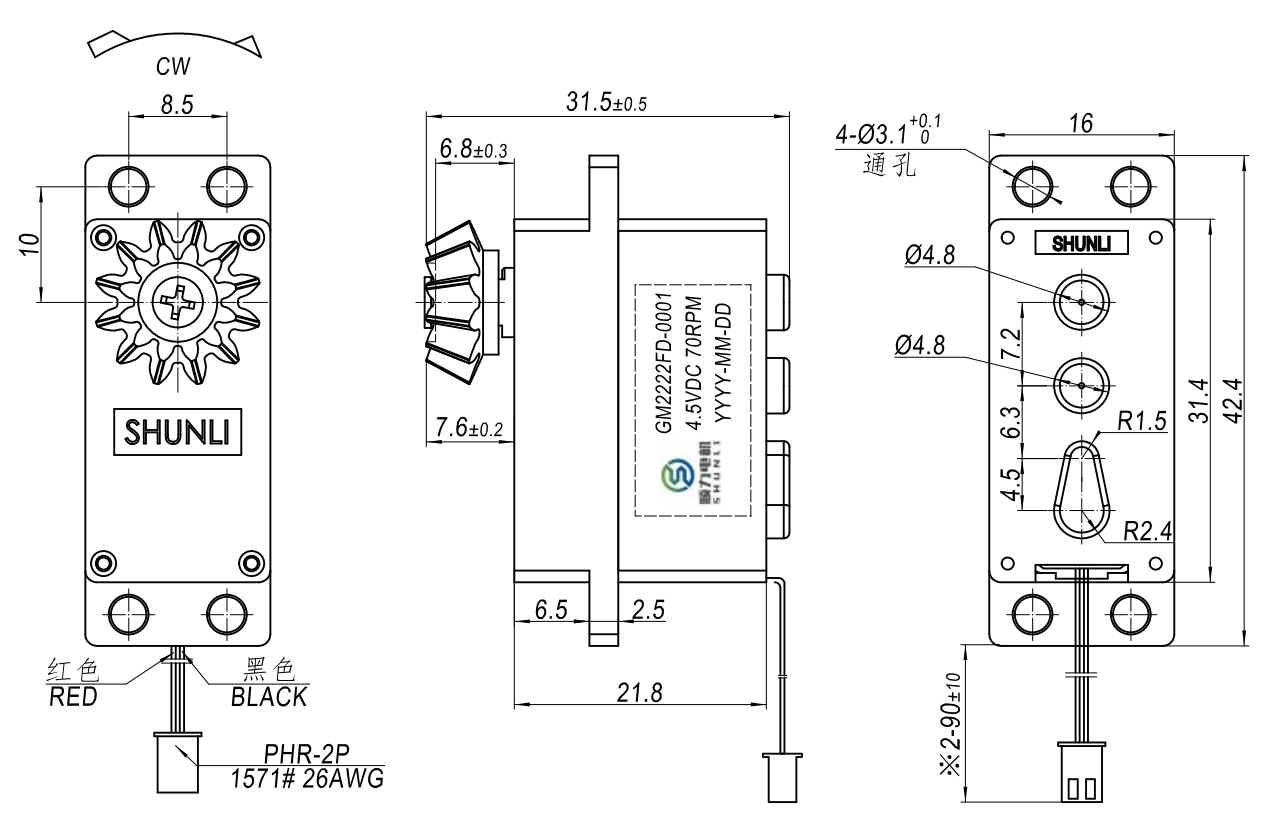

Motor Performance Chart Engineering Drawing

Product Gallery

Micro Motor Detail 1 Micro Motor Detail 2 Micro Motor Detail 3 Micro Motor Detail 4 Micro Motor Detail 5 Micro Motor Detail 6

Frequently Asked Questions

1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
2. What are the payment terms for new customers?
We offer multiple payment options including Online Assurance Orders (Master Card, Visa), PayPal, and T/T bank transfers.
3. Can you customize a motor if I can't find a suitable one?
Yes, we provide full customization services to modify motor parameters and transmission dimensions according to your specific requirements.
4. What certifications do your motors have?
Our products are certified with CE, FCC, ISO, and other relevant standards. We can also apply for additional certifications if required.
5. How do you ensure product quality?
We employ professional quality control staff on every production line. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
6. Do you provide samples for testing?
Yes, we can provide samples for quality evaluation and performance testing before placing a bulk order to ensure the product meets your application needs.
