6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

📦 Product Description

6v 12v 24v micro motor electric car motor micro dc motor

⭐ Product Details

Motor Customized Specification, Please contact us.

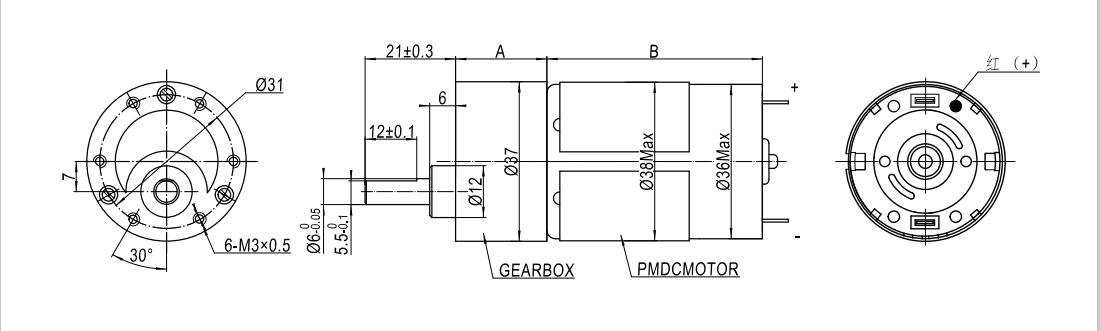

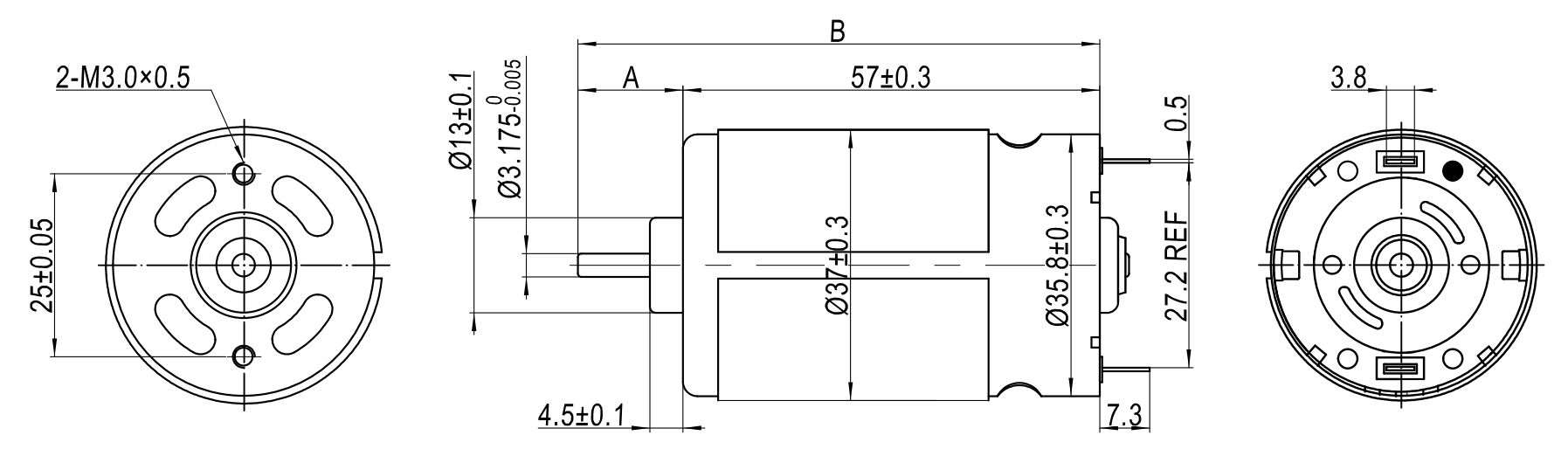

📐 Reference Drawing

------ RS - 545 A

------ RS - 555 A

------ RS - 575 A

Note: The length of shaft can be customized.

📊 Reference Datasheet

PMDC MOTOR Technical Data
Model	Rated Voltage(V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

⭐ Recommended Products

Frequently Asked Questions

Q1: What voltage options are available for these micro DC motors? A: These micro motors are available in 6V, 12V, and 24V configurations to suit various electrical requirements.

Q2: Can the motor shaft length be customized? A: Yes, the shaft length and other technical specifications can be customized based on your specific application needs.

Q3: What are the typical applications for the RS-550H and RS-555H models? A: These motors are commonly used in electric car toys, micro appliances, power tools, and various DIY electronic projects.

Q4: How do I choose between the RS-545A, RS-555A, and RS-575A? A: Selection depends on your required torque, speed (RPM), and physical dimensions. Please refer to our reference drawings for detailed measurements.

Q5: What is the operating range for the 24VDC models? A: For models like the RS-550H (23128R), the operating range typically spans from 6.0V to 24.0V.

Q6: Are technical data sheets available for high-speed variants? A: Yes, the datasheet includes high-speed options such as the 16,000 RPM variant at 12VDC.
