Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

1 / 4

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

📋 Product Description

Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

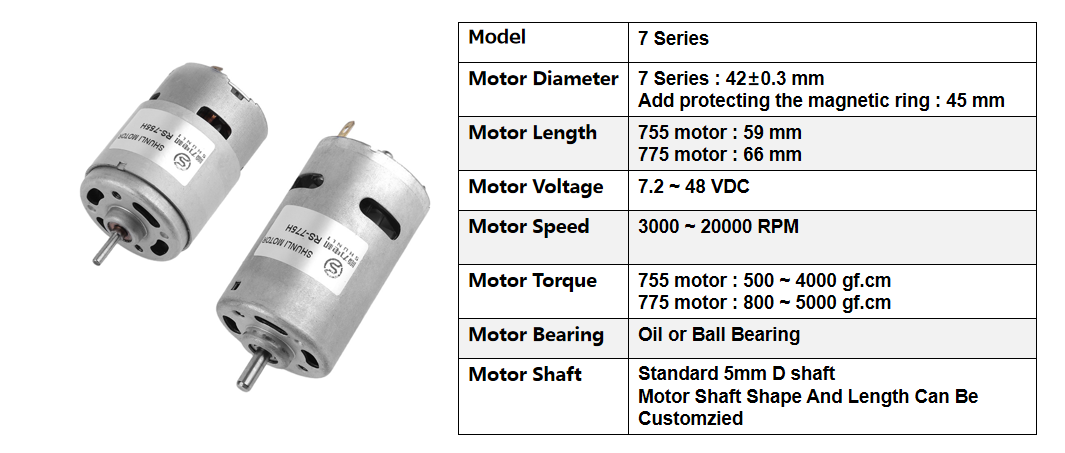

✔ Product Details

Motor Customized Specification, Please contact us.

📐 Reference Drawing

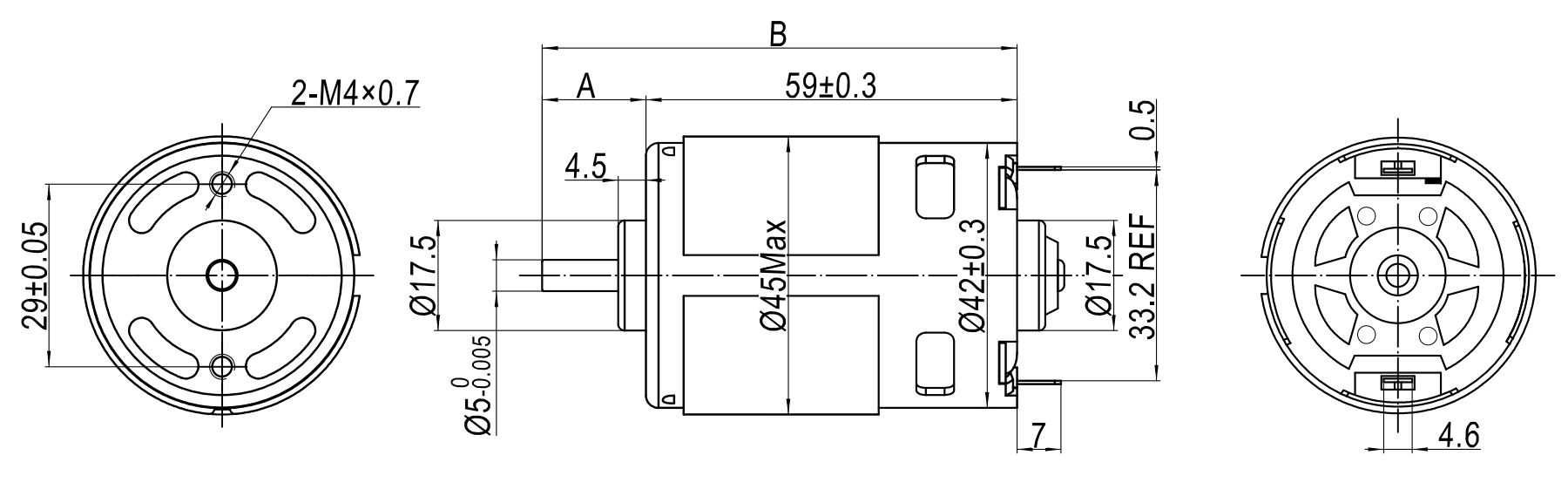

RS - 755 H RS-755H Drawing

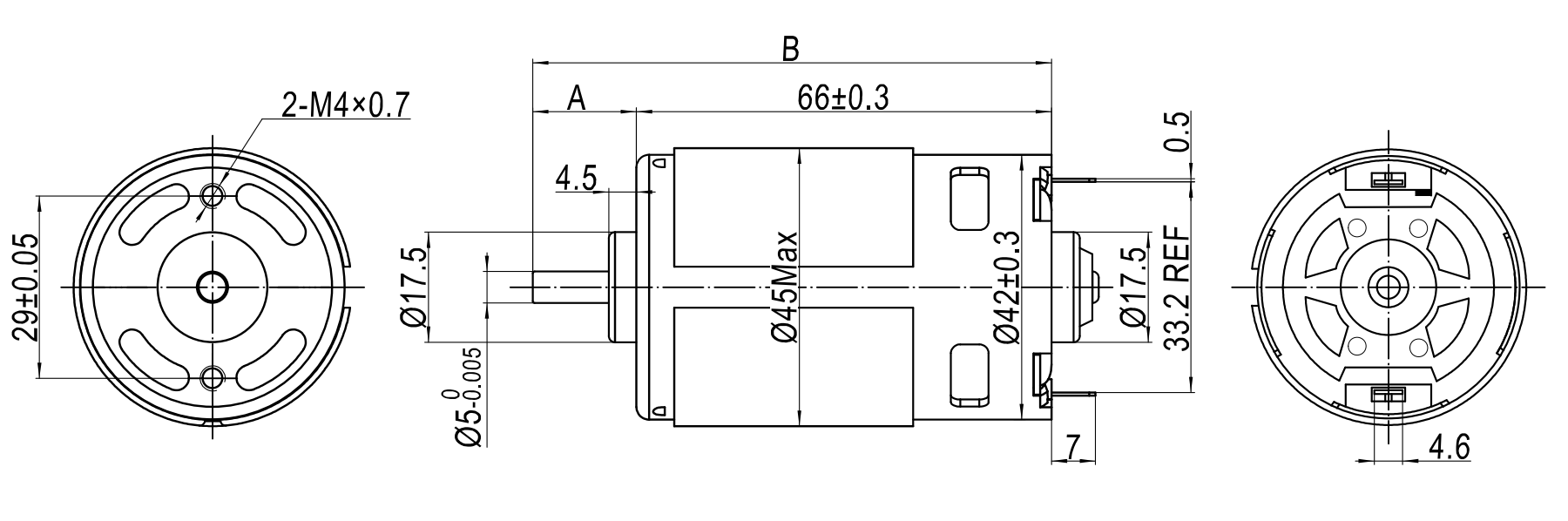

RS - 775 H RS-775H Drawing

The length of shaft can be customized.

📊 PMDC MOTOR Technical Data

Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m	W	A	mN.m
RS-770H	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81	111.8	115	666.9
RS-775H	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4	13.35	4.07	245.7

💡 Application

🎖 Certifications

📖 Recommend Product

❓ FAQ

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for a new customer?

We accept various payment methods including online orders via Master Card or Visa, PayPal, and TT (Telegraphic Transfer).

Can you customize a motor if I can't find a suitable one on your website?

Yes, we can customize a suitable motor according to our customer's specific technical requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for specific certificates if required.

How is your Quality Control process?

We have professional inspection staff for every production process. We use advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers to ensure complete motor quality.

Is technical support available for motor selection?

Yes, our engineering team is available to assist you with technical specifications and integration advice to ensure the motor fits your application perfectly.
