Motor Customized Specification Available

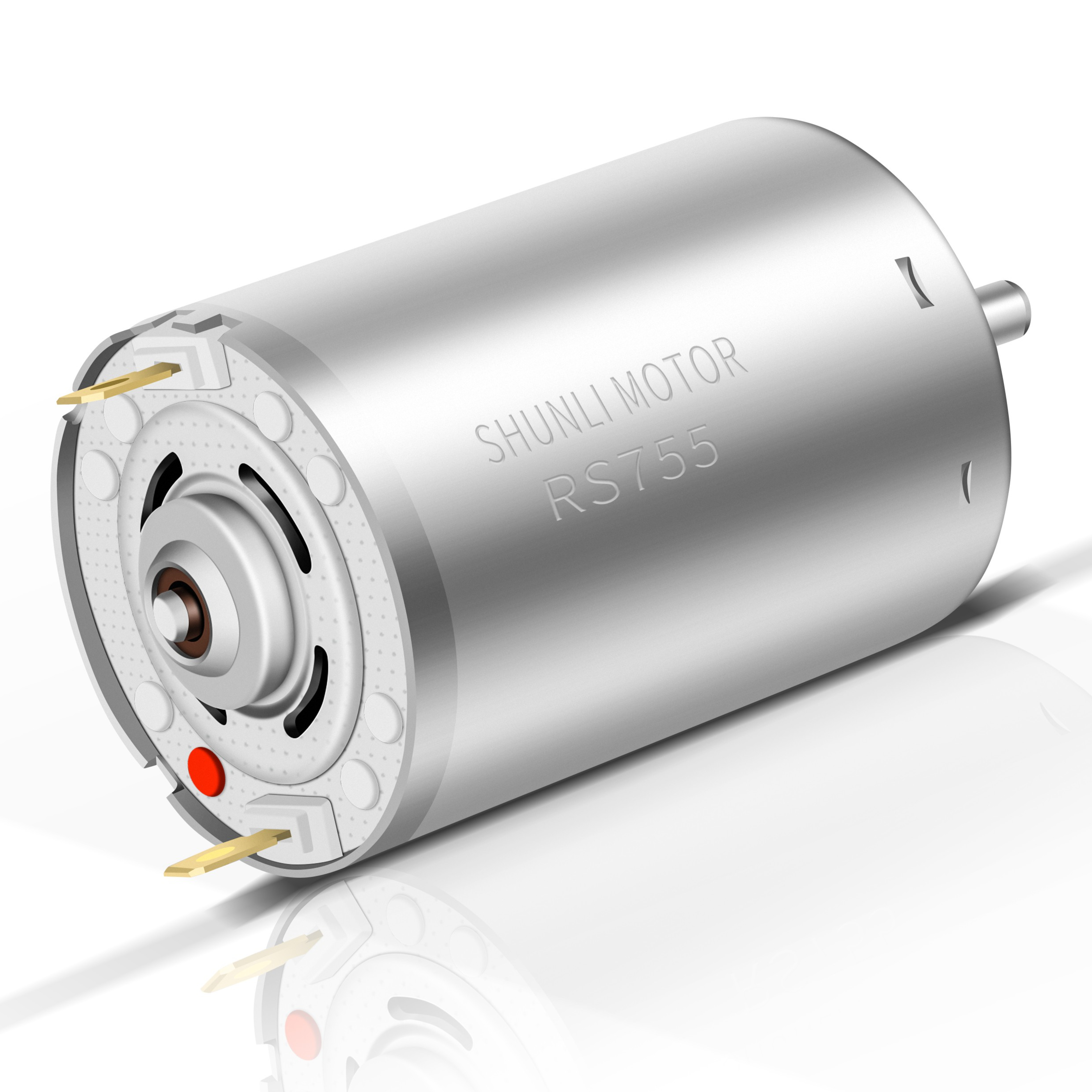

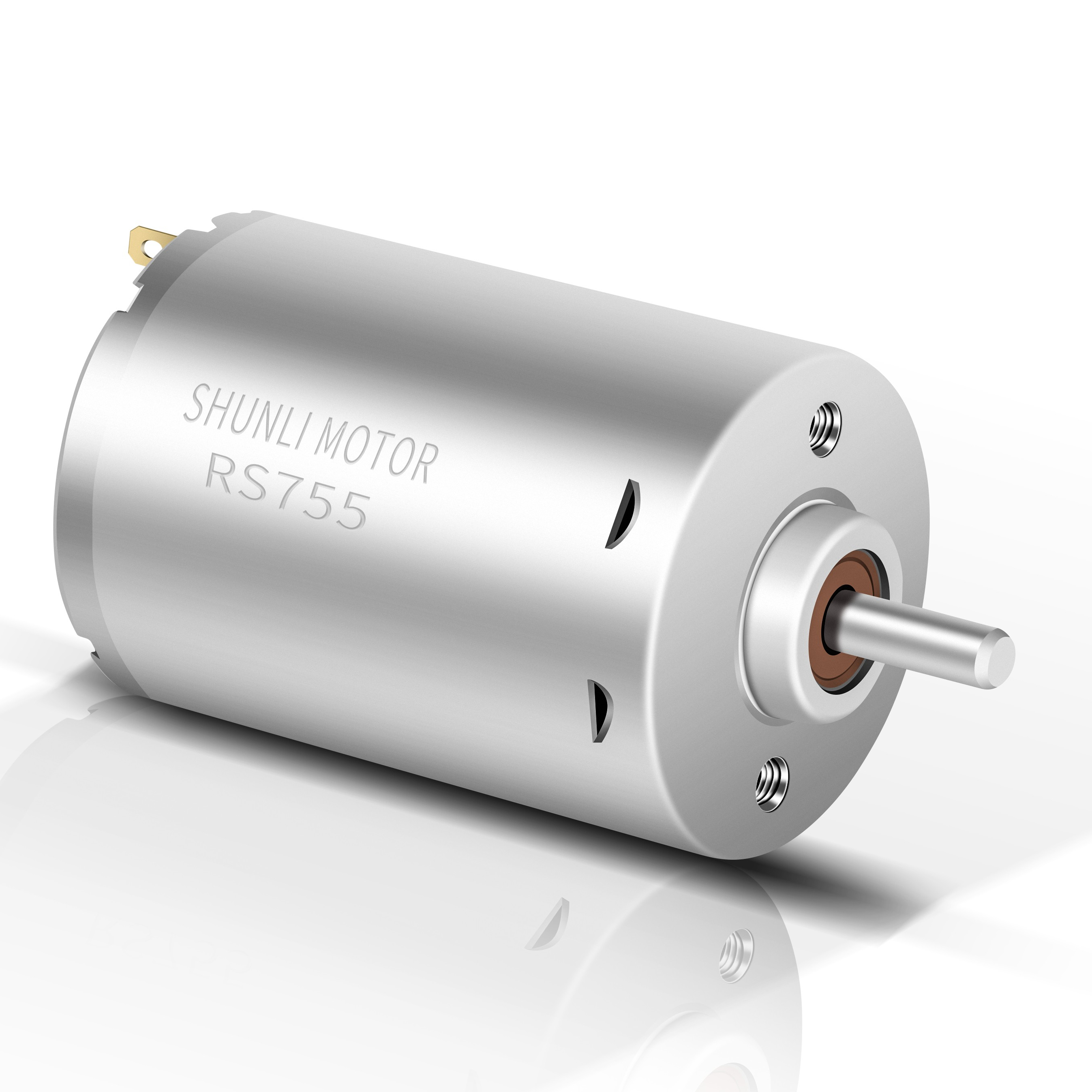

RS-755 H
RS-775 H

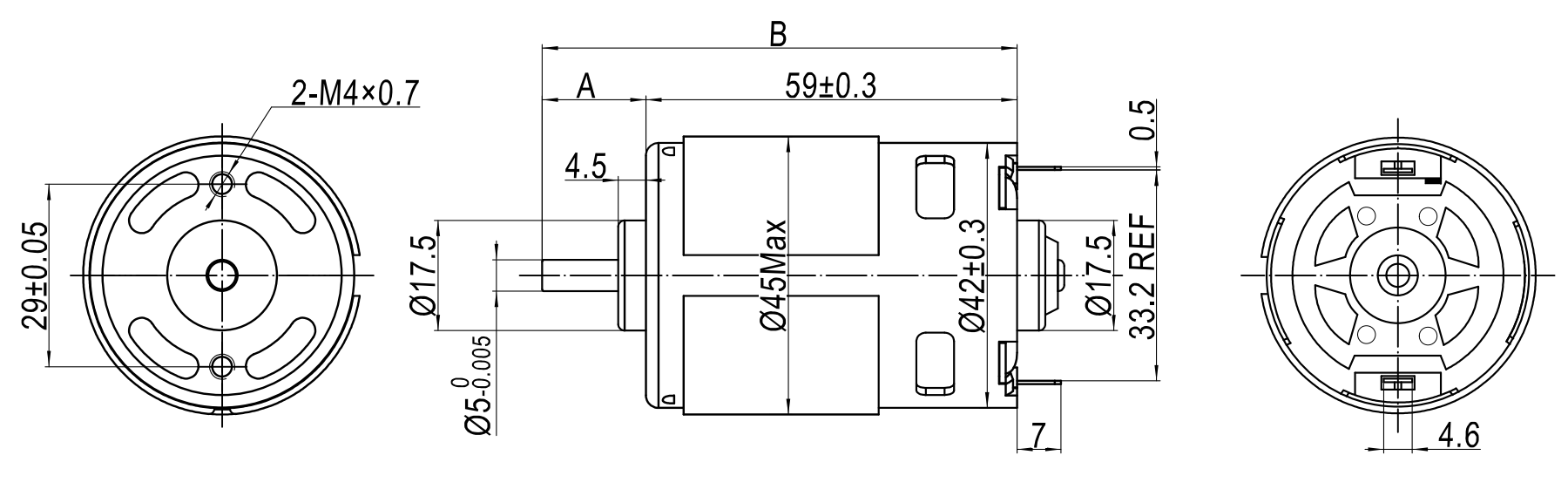

The length of shaft can be customized.
| Model | Rated Voltage (V) | No-Load | Rated | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | |
| RS-770H | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 |
| RS-775H | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 |
Manufacturer Expertise
Specializing in motor production for more than 14 years with a professional R&D team and experienced engineers.
Quality Control
Strict checking at every step from raw material to shipment. Every motor undergoes comprehensive machine testing.
Timely Delivery
100% on-time delivery rate. Samples produced within 2 weeks; customized samples within 3 weeks.
