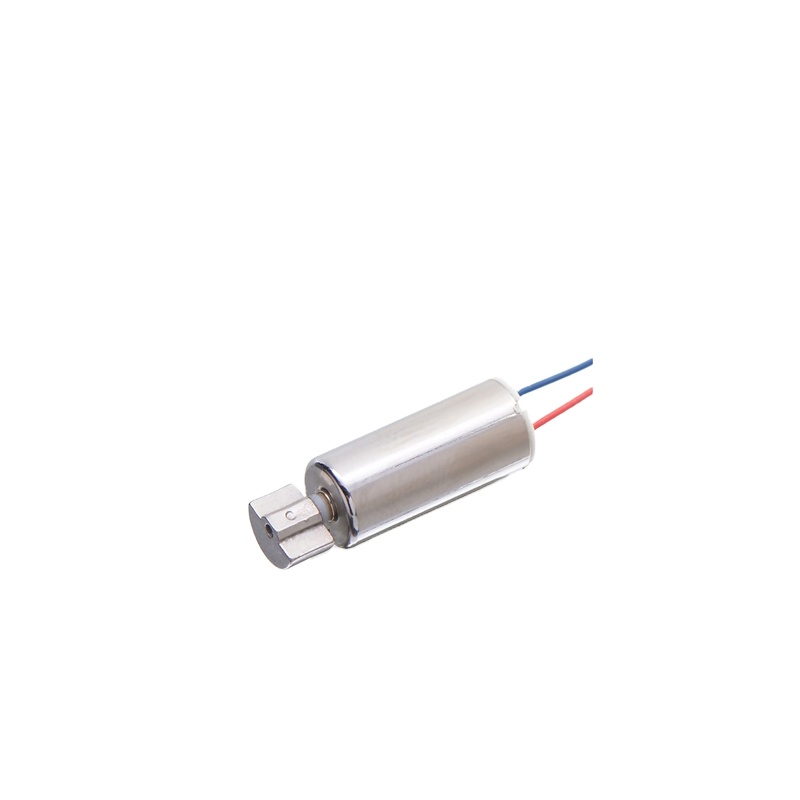

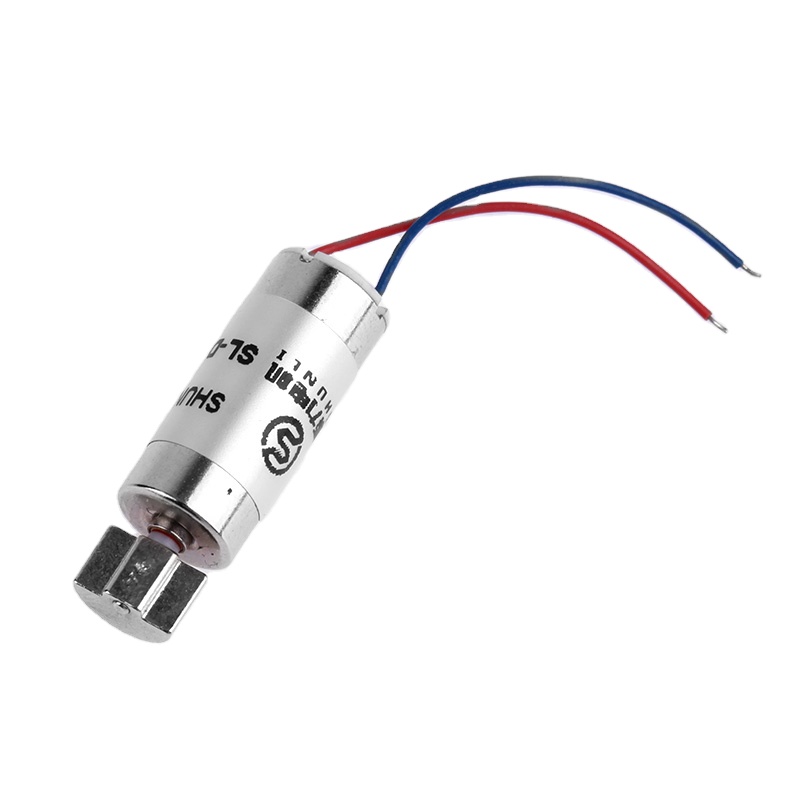

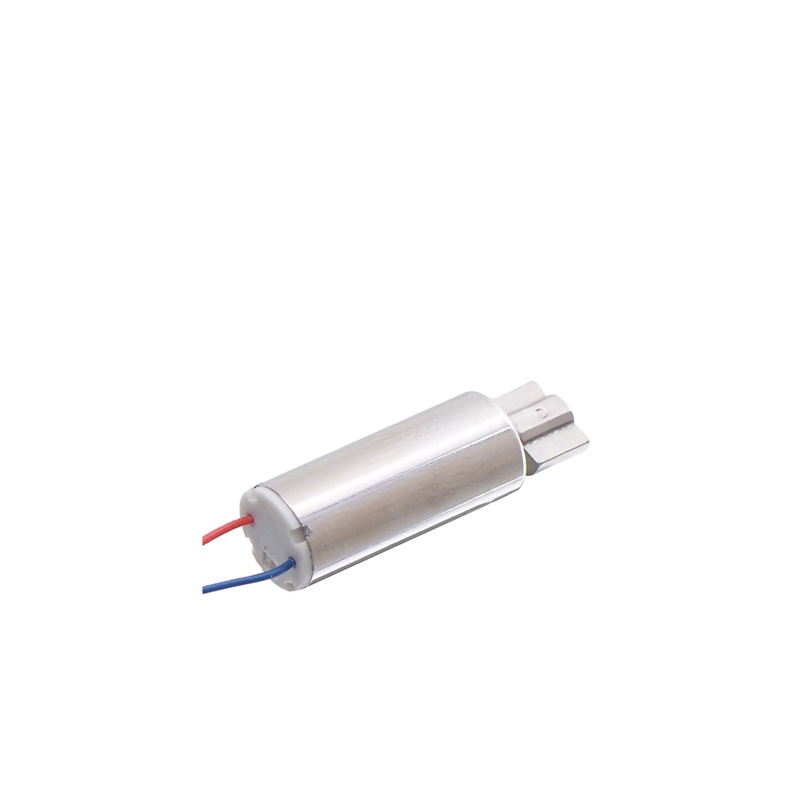

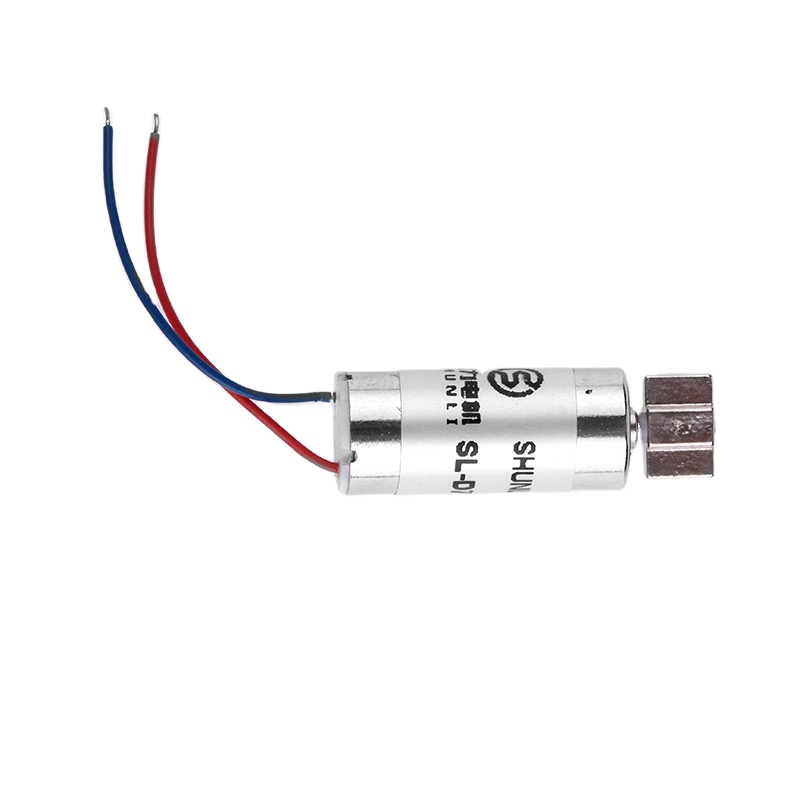

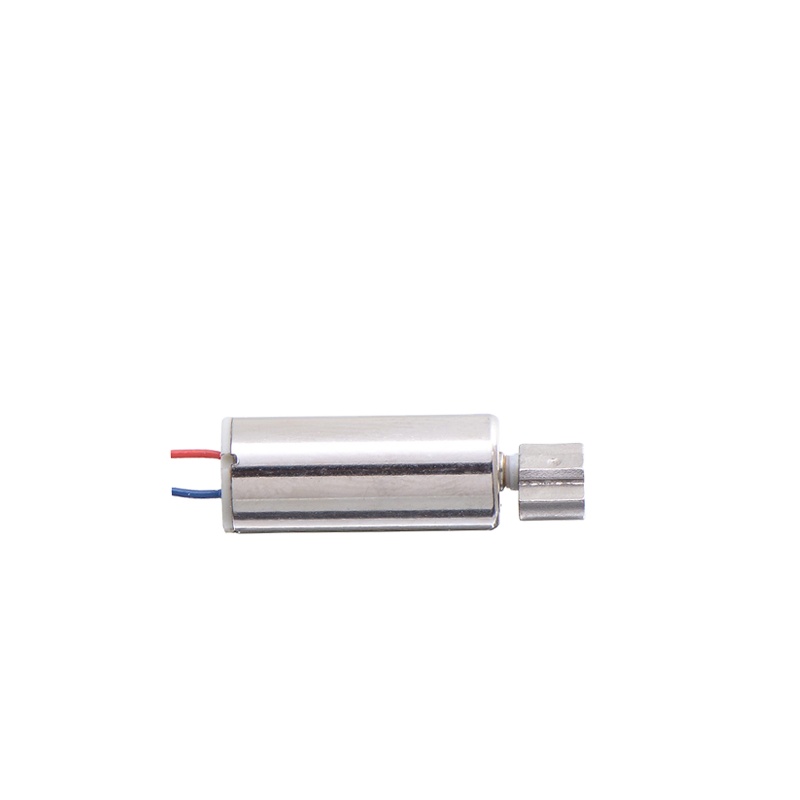

Product Overview: High-performance 2.4V, 3.7V, and 5V DC electric mini vibrator motors designed for adult toys and precision electronic devices. Featuring low RPM and high durability.
Technical Specifications
MODEL
RATED
NO LOAD
RATED LOAD
STALL
VOLTAGE (V)
SPEED (r/min)
CURRENT (mA)
SPEED (r/min)
CURRENT (mA)
CURRENT (mA)
0724
1.5
19900
45
17600
108
480
0724
5.0
20000
33
18500
65
400
0724
3.0
25300
28
21300
89
370
Product Details & Dimensions
Frequently Asked Questions
1. What is the typical voltage range for these mini vibrator motors?
The motors are designed to operate efficiently within a range of 2.4V to 5V DC, with specific models optimized for 1.5V, 3.0V, and 3.7V.
2. Can the vibration intensity be customized?
Yes, vibration intensity can be adjusted by modifying the eccentric weight size and mass, as well as the motor's input voltage.
3. Are these motors suitable for quiet applications?
The brushed design is optimized for low RPM operation, which helps in maintaining a lower noise profile suitable for personal care and adult toy applications.
4. What are the main applications for the 0724 model?
Common applications include mini vibrators, handheld massagers, facial cleaning brushes, and other compact portable electronic devices.
5. Does the motor support PWM speed control?
Yes, as a standard brushed DC motor, it is compatible with Pulse Width Modulation (PWM) for precise speed and vibration control.
6. What is the expected stall current for the 3V model?
According to the technical specifications, the stall current for the 3.0V model is approximately 370mA.
