Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
1 / 5
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair
Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair

Brushed 12v 4.5V Worm Gear Motor Dc With Encoder for Massage Chair

Send Inquiry

Product Description

Product View

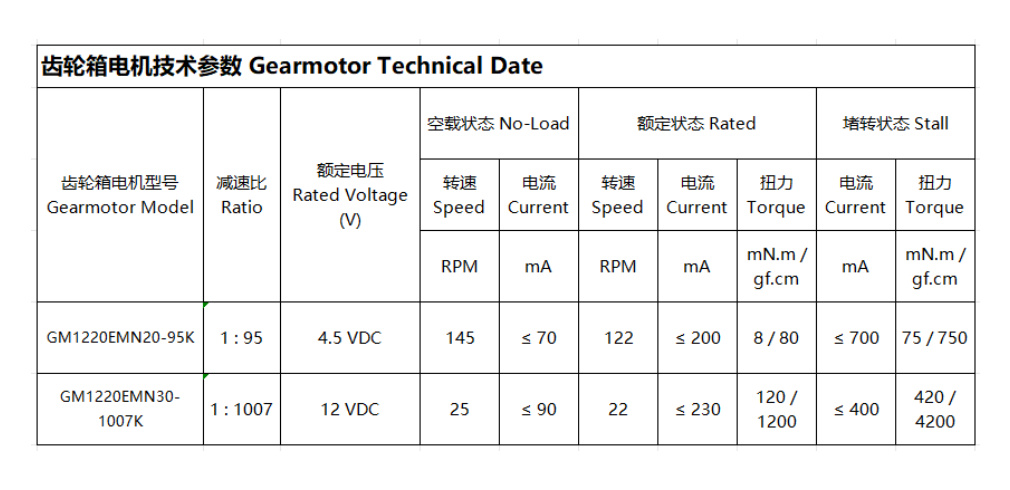

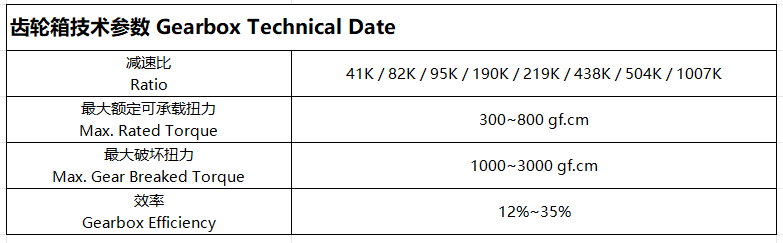

Technical Specifications
Technical Details
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed Range 22RPM - 145RPM
Voltage Range 4.5V ~ 12V
Rated Torque 8 mN.m / 120 mN.m
Customization Transmission Dimensions and Motor Parameters can be fully customized

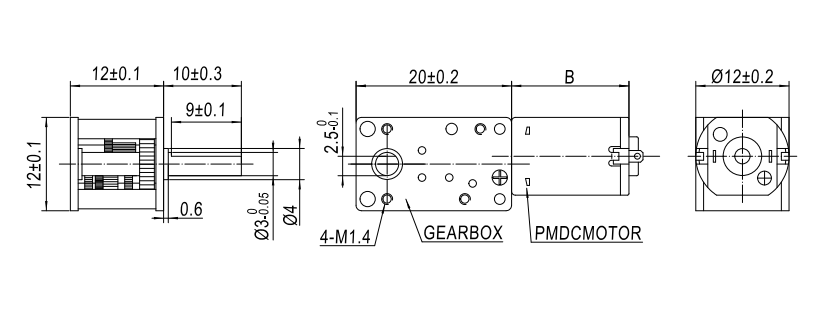

Dimensional Drawings
Technical Drawing 1 Technical Drawing 2

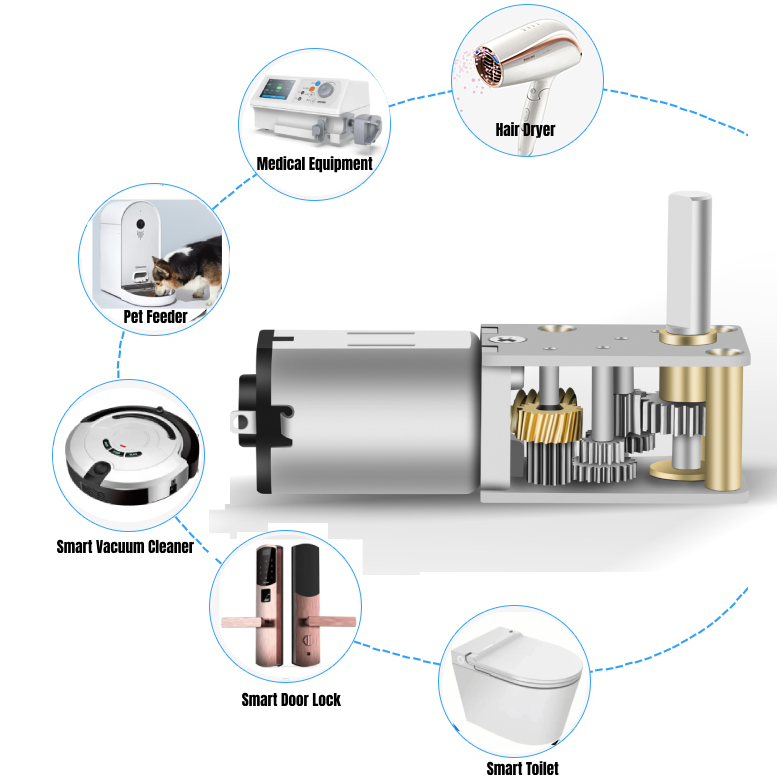

Product Application & Details
Application Image
Frequently Asked Questions
1 Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
2 What are the payment terms for new customers?
We support various payment methods including Online Assurance Orders (MasterCard, Visa), PayPal, and TT transfers.
3 Can you customize the motor according to my requirements?
Yes, we can customize motor parameters and transmission dimensions to meet your specific application needs.
4 Do you have certificates for the motors?
Yes, we hold CE, FCC, and ISO certifications. We can also apply for other specific certificates if required.
5 How do you ensure product quality?
We have professional inspectors on every production line and utilize advanced testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testers.
6 Do you provide samples for testing before bulk orders?
Yes, we provide samples to ensure the performance meets your specifications before proceeding with mass production.
